Fabtech Lift Kit Suspension System (MPN: K1060)

Enhance your vehicle's performance with a robust 4 inch lift kit.

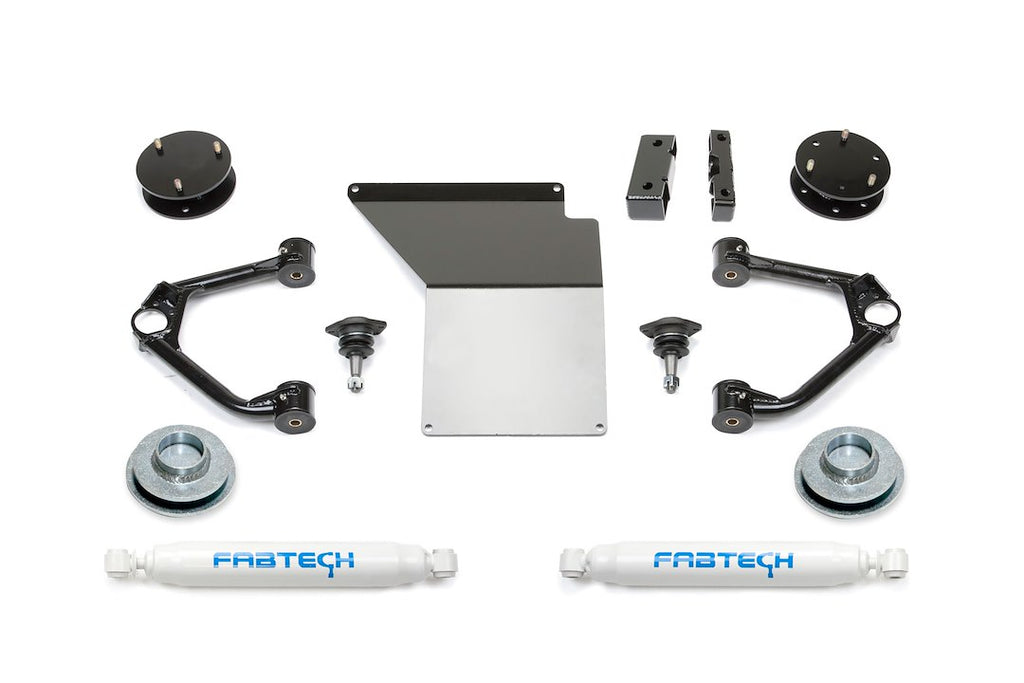

Fabtech's lift kit suspension system is designed to elevate your vehicle by 4 inches in both the front and rear, providing improved ground clearance and off-road capability. This system includes heavy-duty DOM upper tubular control arms equipped with extended range ball joints, ensuring enhanced strength and unrestricted movement throughout the suspension travel range. The relocation of the front differential housing maintains proper CV angles, while a durable 1/4 inch thick steel skid plate protects the differential from potential damage.

The rear lift is achieved through a 2 inch coil spacer system, contributing to a balanced lift that enhances ride quality both on and off-road. The kit is engineered for fast and trouble-free installation, making it accessible for those looking to upgrade their suspension without extensive modifications. With a maximum tire size of 30 x 11, this lift kit accommodates larger tires, further enhancing the vehicle's off-road performance and aesthetic appeal.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K1060
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 4 Inch
• Maximum Tire Size: 30 x 11
• Front Lift Type: Coil Spring Spacer
• Rear Lift Type: Coil Spring
• Shock Type: Hydraulic
• Wheel Backspacing (IN): 4.50
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): 0
• Shocks: With Shocks In Kit
• Color: Black Components/ White Shock Absorbers

Compatibility / Fit

• 2007-2013 Chevrolet Avalanche
• 2007-2014 Chevrolet Suburban 1500
• 2007-2014 Chevrolet Tahoe
• 2007-2014 GMC Yukon
• 2007-2014 GMC Yukon XL 1500

Technical Documents

• FT21121i.pdf
