Fabtech Lift Kit Suspension Stealth Series (MPN: K2193M)

Enhance your vehicle's performance with a robust 4 inch lift system.

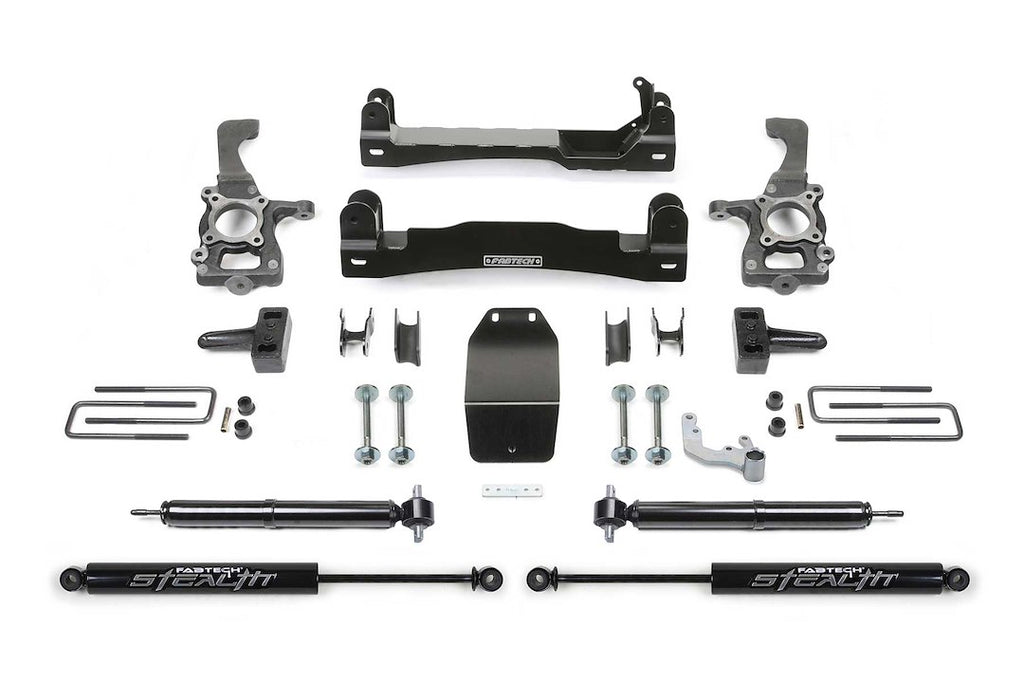

Fabtech's 4 Inch F150 Lift Kit Suspension Stealth Series is engineered for durability and performance, utilizing heavy-duty construction features found in their larger systems. This kit allows for the installation of 33 inch tires while maintaining a clean appearance with stock track width, thanks to the ductile iron steering knuckles. The system includes high arched lower control arm crossmembers made from 1/4 inch thick steel, ensuring maximum strength and stability on various terrains.

The lift is achieved through a combination of front heavy-duty coilover shocks and rear stealth shock absorbers, providing superior ride quality both on and off-road. The rear lift is accomplished using a block and u-bolt configuration, which is designed for easy installation. This system is also compliant with Electronic Stability Control and Traction Control, making it a reliable choice for enhancing vehicle handling.

Manufactured in the USA, the Fabtech Lift Kit is designed for fast and trouble-free installation, making it accessible for both professional and DIY installers. With its black components and shock absorbers, this lift kit not only improves functionality but also adds a sleek aesthetic to your vehicle.

Features

• Provide A Superior Ride Quality Both On And Off-Road
• Ultimate In Suspension Performance
• Made In USA
• Fast And Trouble-Free Installation

Specifications

• Manufacturer: Fabtech Motorsports
• Manufacturer Part Number: K2193M
• Front Lift Amount (IN): 4 Inch
• Rear Lift Amount (IN): 4 Inch
• Maximum Tire Size: 35 x 12.50
• Front Lift Type: Coil Over Shock Absorber
• Rear Lift Type: Leaf Spring Block
• Shock Type: Gas Charged
• Wheel Backspacing (IN): 5.00
• Minimum Wheel Diameter: 17
• Wheel Offset (MM): 13
• Shocks: With Shocks In Kit
• Color: Black Components/ Black Shock Absorbers

Compatibility / Fit

• 2015-2020 Ford F-150

Technical Documents

• FT22176i.pdf
