Heavy duty suspension upgrade for Ford Super Duty trucks.

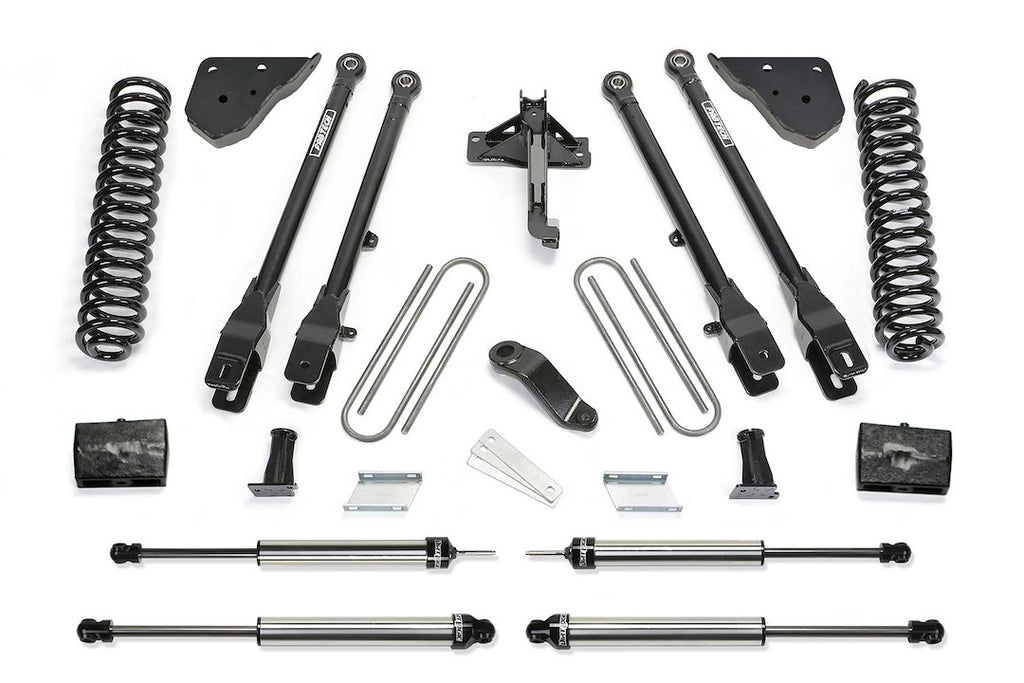

Fabtech's lift kit suspension is engineered specifically for Ford Super Duty trucks, designed to meet the rigorous demands of both on and off-road driving. This system enhances the factory suspension with a robust construction that provides increased strength and stability. The centerpiece of this lift kit is Fabtech's renowned tubular Radius Arms, which combine advanced off-road racing technology with a smooth driving experience on various terrains.
The lift kit features forged steel construction and hot wound coils, ensuring a compliant ride quality whether navigating rugged trails or city streets. The super stout box style bracket is designed to minimize deflection during full track bar movement, enhancing overall steering functionality. Additionally, the kit includes cast iron rear lift blocks with integrated bump stops, ensuring durability and performance under load.
Installation is straightforward, with components designed to reposition factory brake lines without the need to open the brake system. The kit accommodates larger tires, with a maximum size of 40 x 12.50, and allows for full sway bar link movement throughout the extended travel range. This lift kit not only improves the vehicle's off-road capabilities but also maintains a modern and aggressive aesthetic.
Features
- Forged Steel Construction With High Strength Material
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Redesigned Tubular Construction And Side Plate Provide Superior Strength And Modern Aggressive Look
- Enhanced Steering Functionality
- Re-Positions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- Allows The Sway Bar Link Ends To Fully Cycle Without Binding Throughout The Extended Travel Range.
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2431DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Springs
- Rear Lift Type: Lift Blocks And U Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35

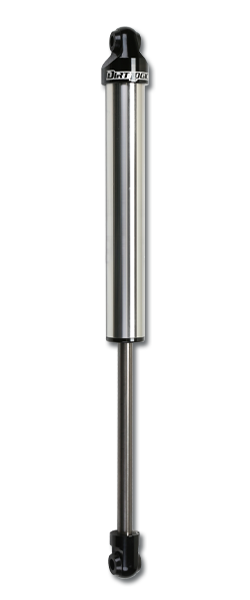

- Shocks: With Front And Rear Dirt Logic Shock Absorbers
- Color: Black Components/ Silver Absorbers
Compatibility / Fit
- 2023-2024 Ford F-450 Super Duty
- 2023-2024 Ford F-550 Super Duty
