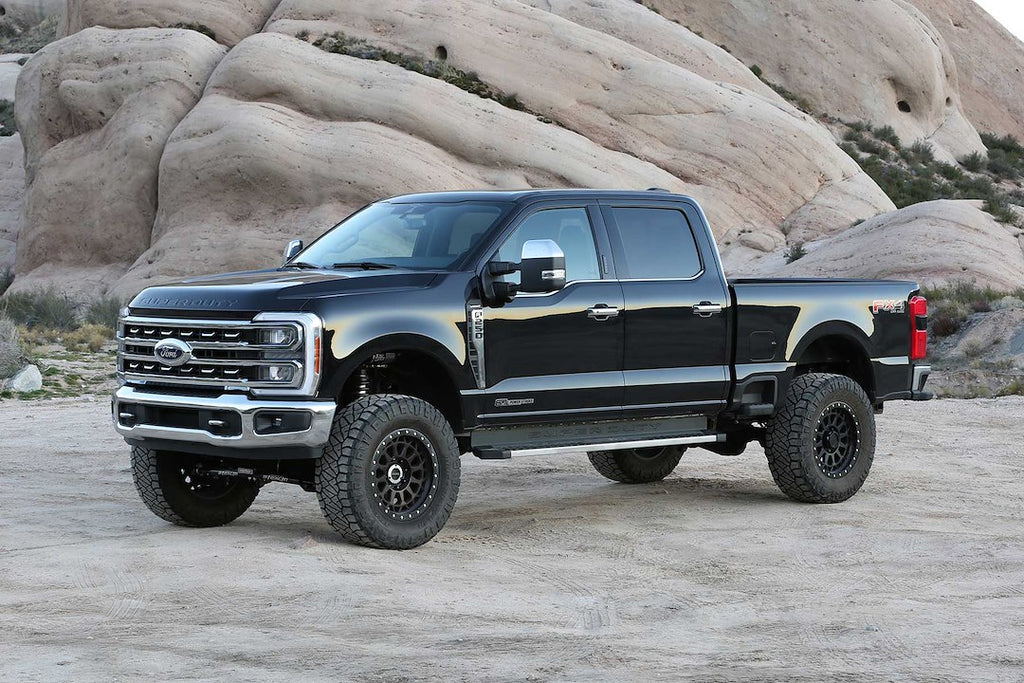

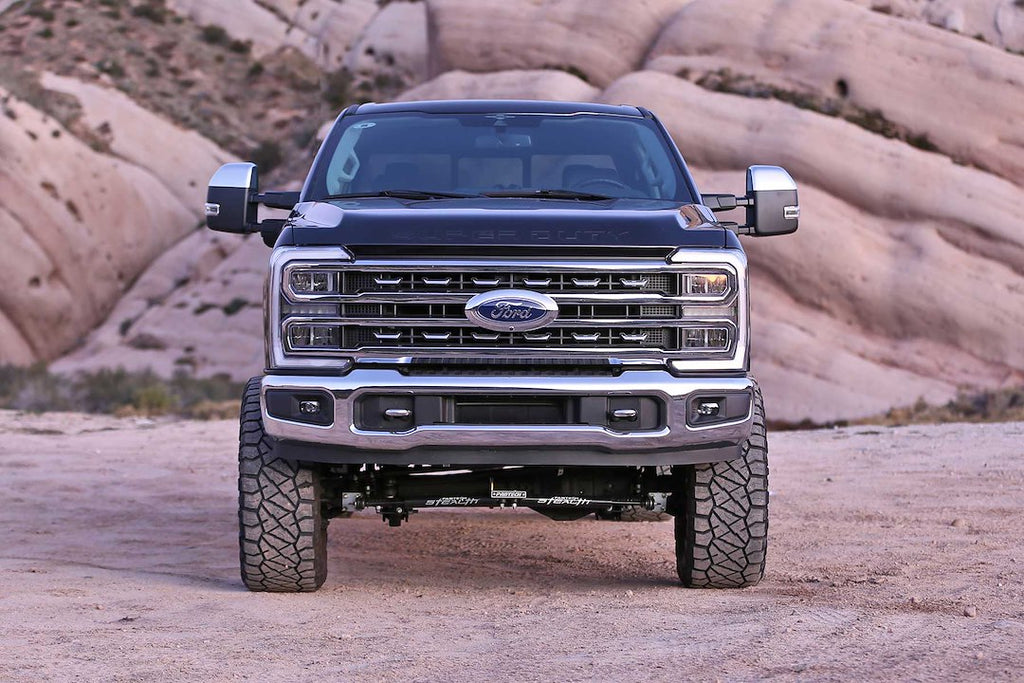

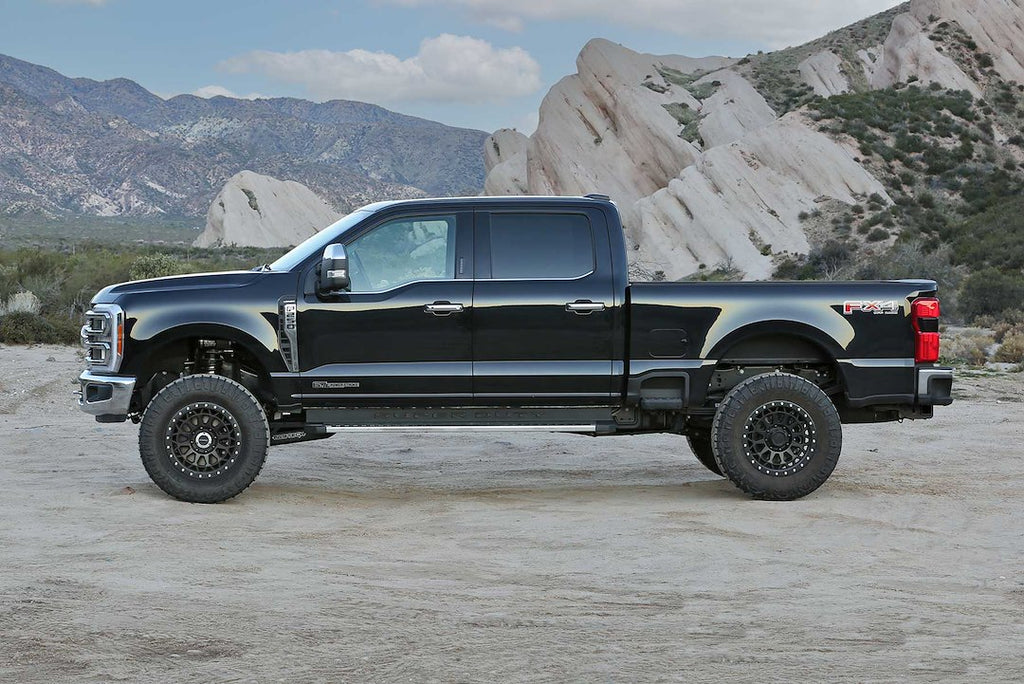

Enhance your Ford Super Duty with superior offroad performance and strength.

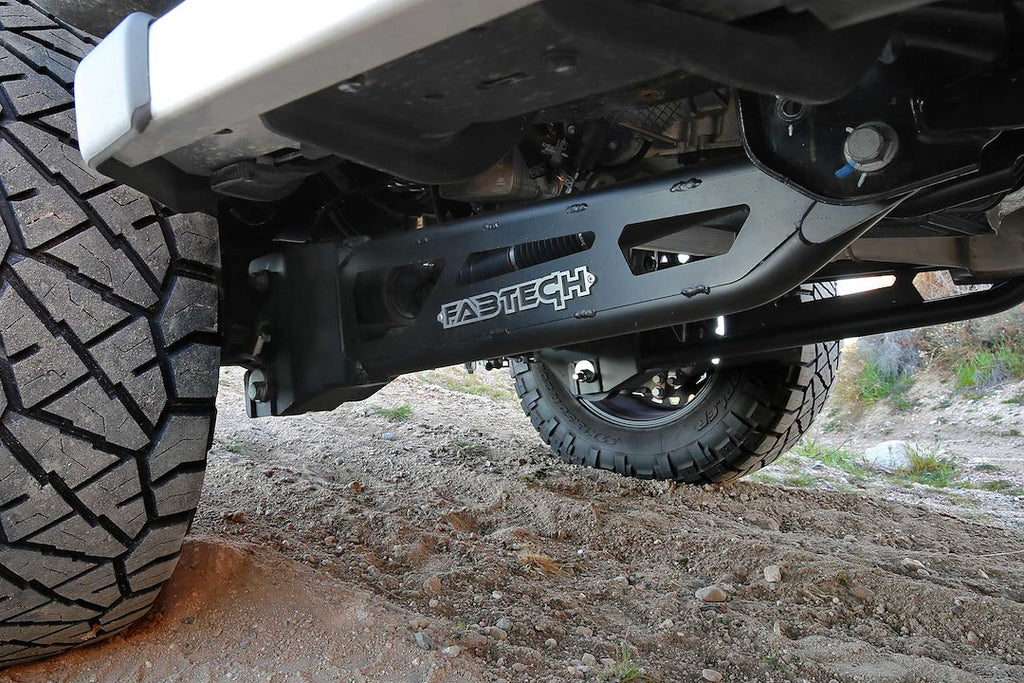

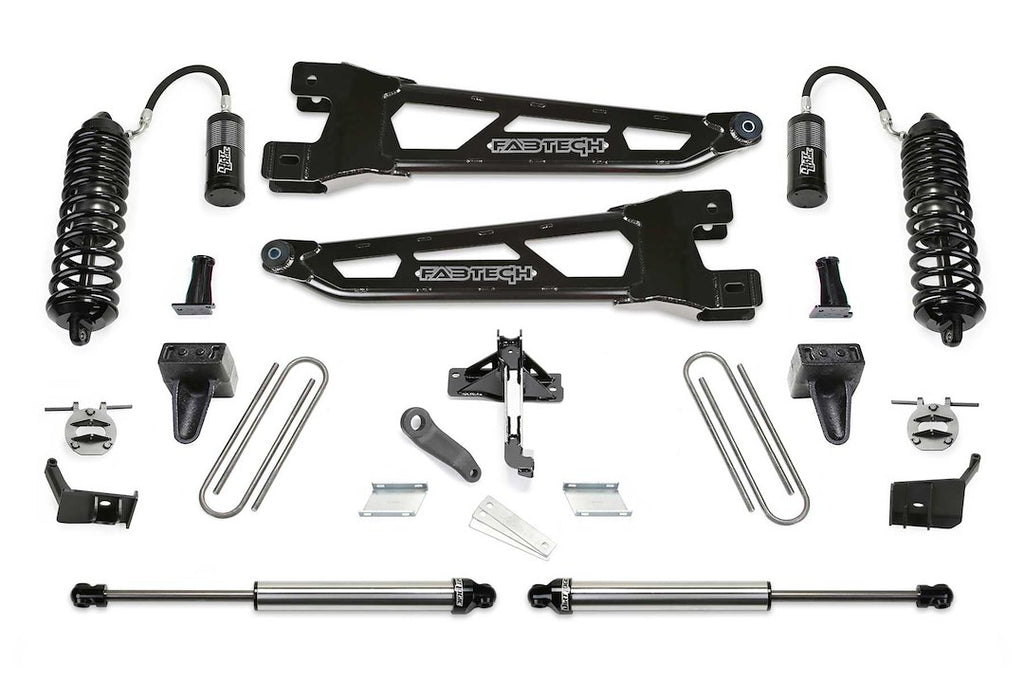

Fabtech's 6 Inch Radius Arm lift kit is engineered specifically for the Ford Super Duty, designed to meet the rigorous demands of both on and offroad driving. This heavy-duty suspension upgrade enhances the vehicle's strength and stability, featuring Fabtech's renowned tubular Radius Arms that combine durability with a smooth driving experience. The kit includes Dirt Logic 4.0 Resi Coilovers for the front, which are built to withstand extreme offroad conditions while ensuring a comfortable ride on highways.
The rear suspension is equipped with cast iron lift blocks that integrate bump stops, maintaining ride quality and load capacity. The heavy-duty track bar relocation bracket and new pitman arm ensure proper axle centering, allowing for full lock steering with larger tires. This lift kit not only improves offroad capability but also enhances steering functionality and repositions factory brake lines for optimal travel range without compromising the brake system.

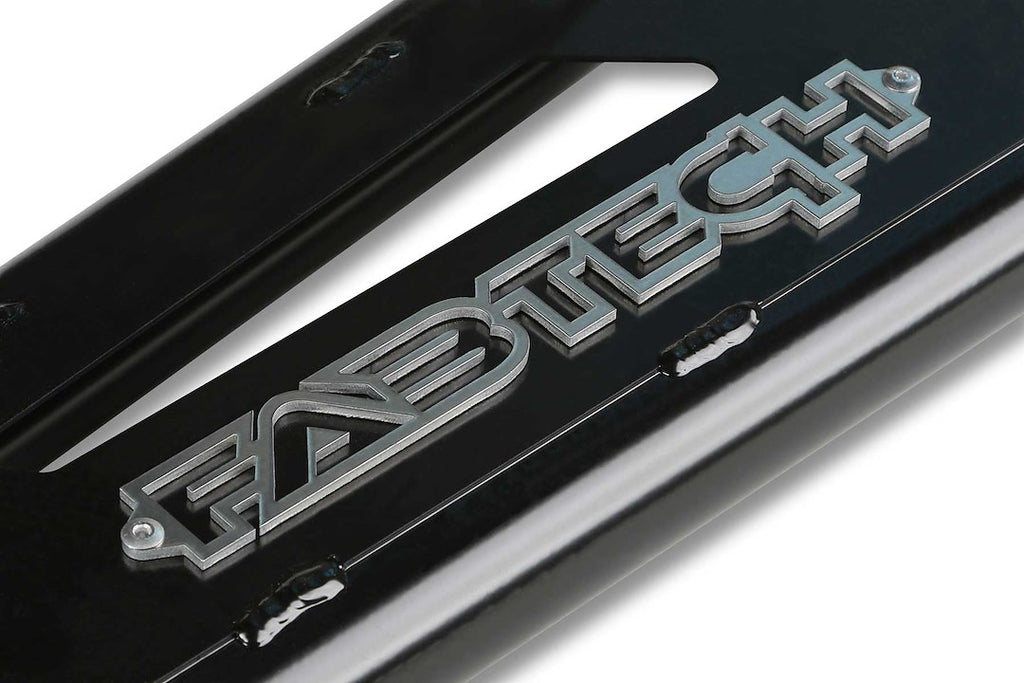

With a modern aggressive look, the redesigned Radius Arms feature a bold laser cut logo and a robust construction that stands out on any terrain. This lift kit is a comprehensive solution for truck enthusiasts looking to elevate their vehicle's performance and aesthetics.
Features
- Forged Steel Construction With High Strength Material
- Remote Aluminum Reservoir Dissipates Heat For Consistent Damping When Driving Over Extreme Terrain At High Speed
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Redesigned Tubular Construction And Side Plate Provide Superior Strength And Modern Aggressive Look
- Enhanced Steering Functionality
- Re-Positions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- Allows The Sway Bar Link Ends To Fully Cycle Without Binding Throughout The Extended Travel Range.
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2416DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Lift Blocks And U-Bolts
- Wheel Backspacing (IN): 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 12.5
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
