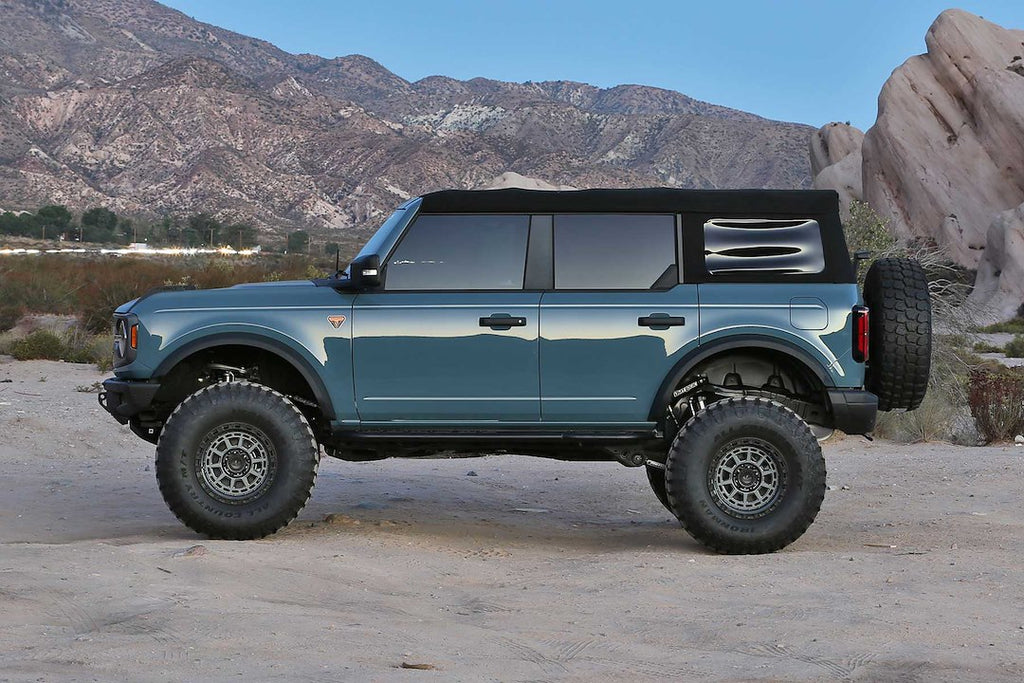

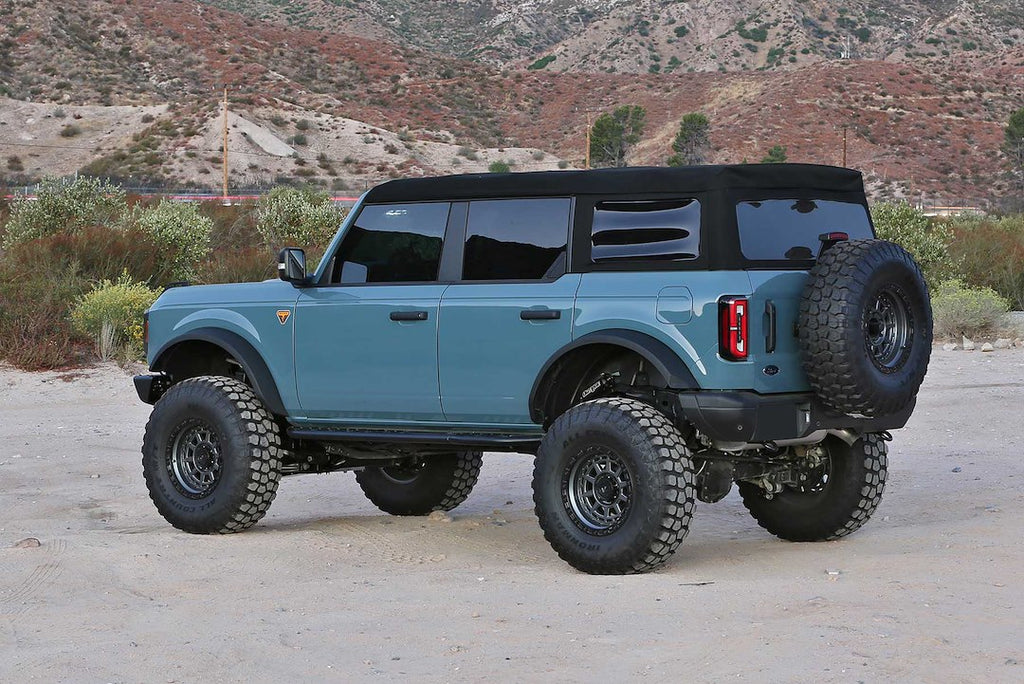

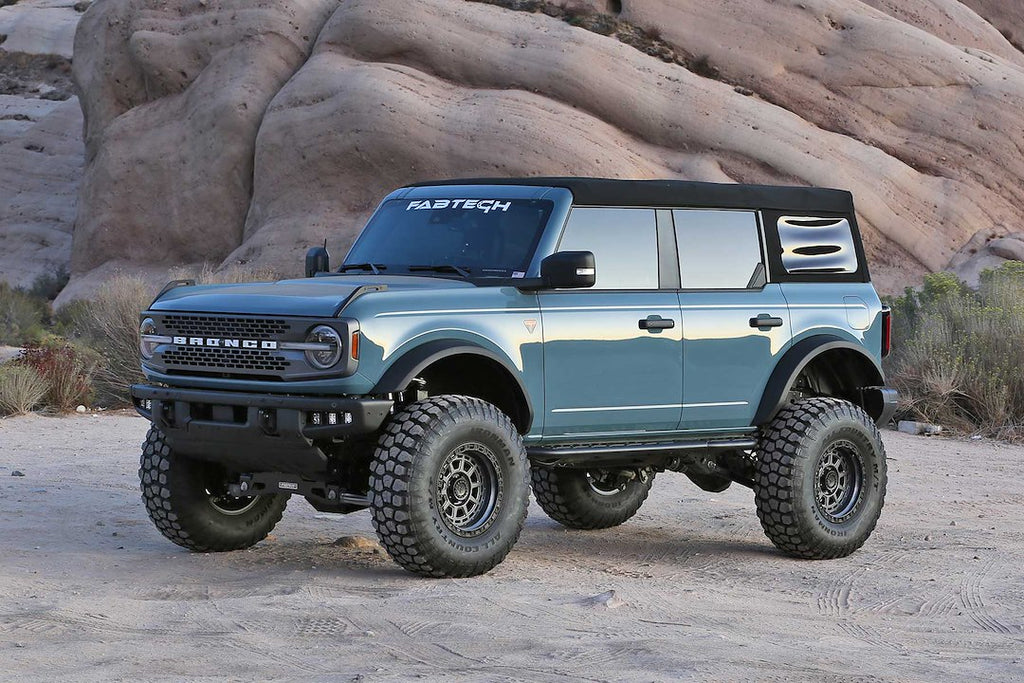

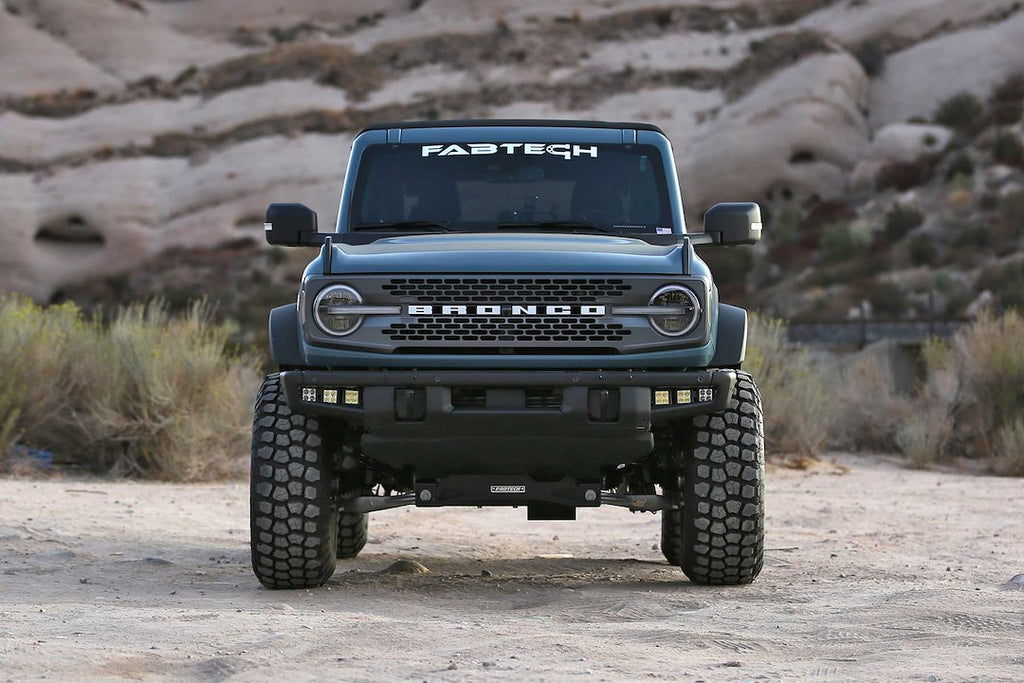

Enhance your Ford Bronco with a robust 6 inch lift kit.

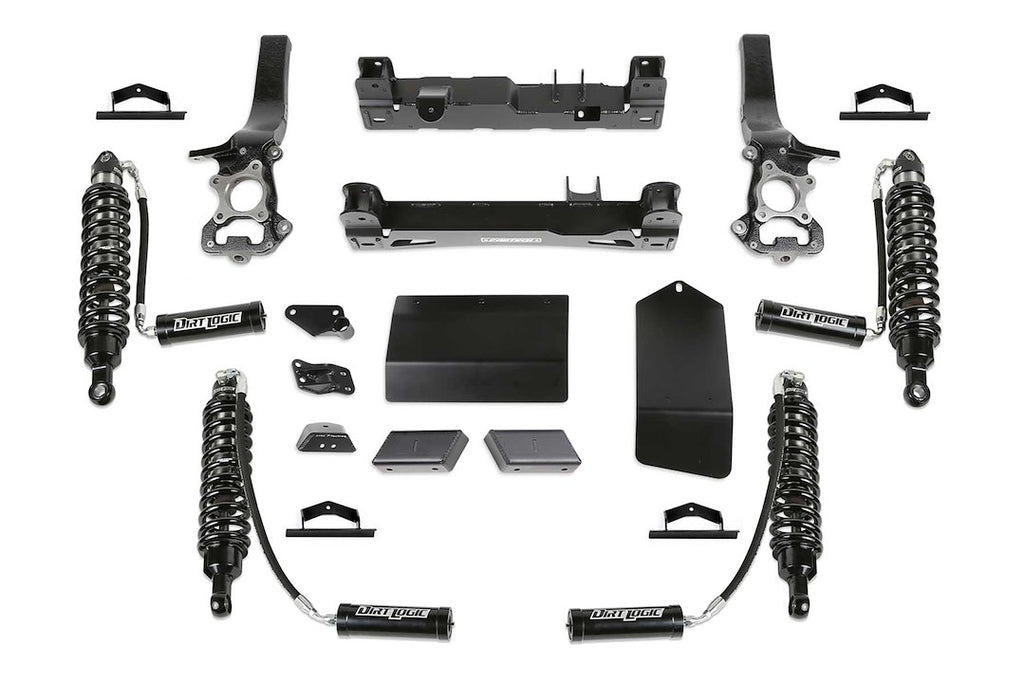

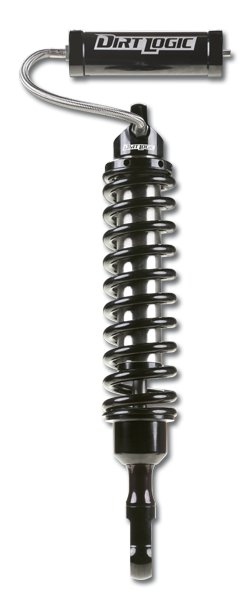

Fabtech's Lift Kit Suspension is engineered for the Ford Bronco, providing a substantial 6 inch lift in both the front and rear. Constructed from 1/4 inch thick steel, this kit ensures durability and strength, allowing for the installation of larger tires up to 40 inches while maintaining factory alignment for stability across various terrains. The kit includes Dirt Logic 2.5 remote reservoir coilover shock absorbers, which are designed to enhance ride quality through extensive tuning for both on and off-road conditions.
The inclusion of heavy-duty components such as arched lower control arm crossmembers and extended length ductile iron steering knuckles minimizes bump steer and maximizes ground clearance. Additionally, the remote aluminum reservoir effectively dissipates heat, ensuring consistent damping performance even in extreme driving situations. The robust skid plate protects critical components like the front differential, making this lift kit suitable for adventurous driving.
With adjustable coilover construction and a stainless steel body, the Dirt Logic shocks provide a balanced ride experience that enhances driver and passenger comfort. This lift kit not only elevates the vehicle's stance but also improves overall handling and performance, making it a valuable addition for those looking to tackle challenging terrains.
Features
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- The Remote Aluminum Reservoir Dissipates Heat For Consistent Damping When Driving Over Extreme Terrain At High Speed
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Diff For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- 1/4 Inch Thick Steel Drop Brackets Reposition The Front Sway Bar For The Increased Ride Height
- Enhanced Driver Experience
- Stainless Steel Body
- Adjustable Coilover Construction
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2396DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Over Shock Absorber
- Shock Type: Front And Rear Dirt Logic Remote Reservoir Coil Over Shock Absorbers
- Wheel Backspacing (IN): 4.5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black
Compatibility / Fit
- 2021-2025 Ford Bronco
