Enhance off-road performance with a comprehensive lift kit solution.

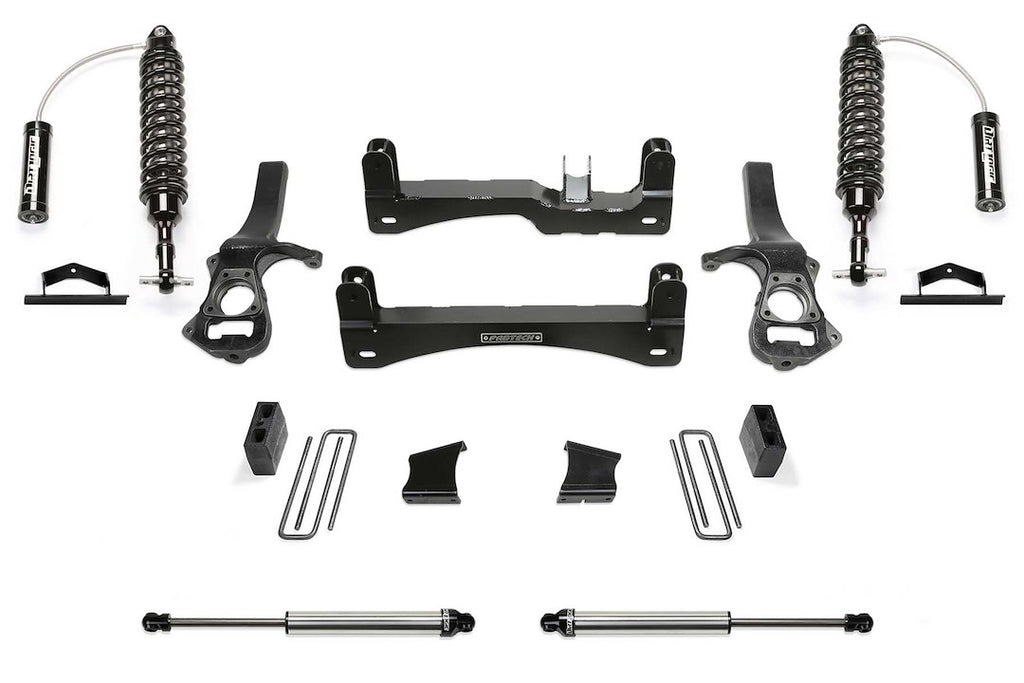

Fabtech Motorsports offers a robust suspension system designed to elevate the performance of select trucks with a 4 inch front lift and a 3 inch rear lift. This kit allows for the installation of 35 inch tall tires while maintaining a near stock track width, ensuring a clean and functional appearance. The system includes essential components such as front steering knuckles, crossmembers, and rear lift blocks, all engineered for maximum ground clearance and strength.
The Dirt Logic shock absorbers included in the kit are constructed with a stainless steel body and NitroSteel piston rod, providing superior corrosion resistance and durability. The proprietary steering knuckle geometry ensures zero bump steer throughout the suspension travel, enhancing maneuverability in tight spaces. Additionally, the heavy-duty front differential skid plate protects critical components from off-road obstacles, while triple differential mounts optimize the driveshaft angle to minimize vibration at high speeds.
This lift kit is designed to replace factory components with oversized tie rods and billet spacers that control suspension travel, preventing over cycling. The rear lift blocks maintain ride quality and load capacity, making this suspension system a comprehensive solution for off-road enthusiasts seeking improved performance and capability.
Features
- Crossmembers Are Arched For Maximum Ground Clearance And Provides Additional Strength To The Front Suspension
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Protects The Differential From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1198DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500- New Model
