Enhance off-road capability with a comprehensive lift kit solution.

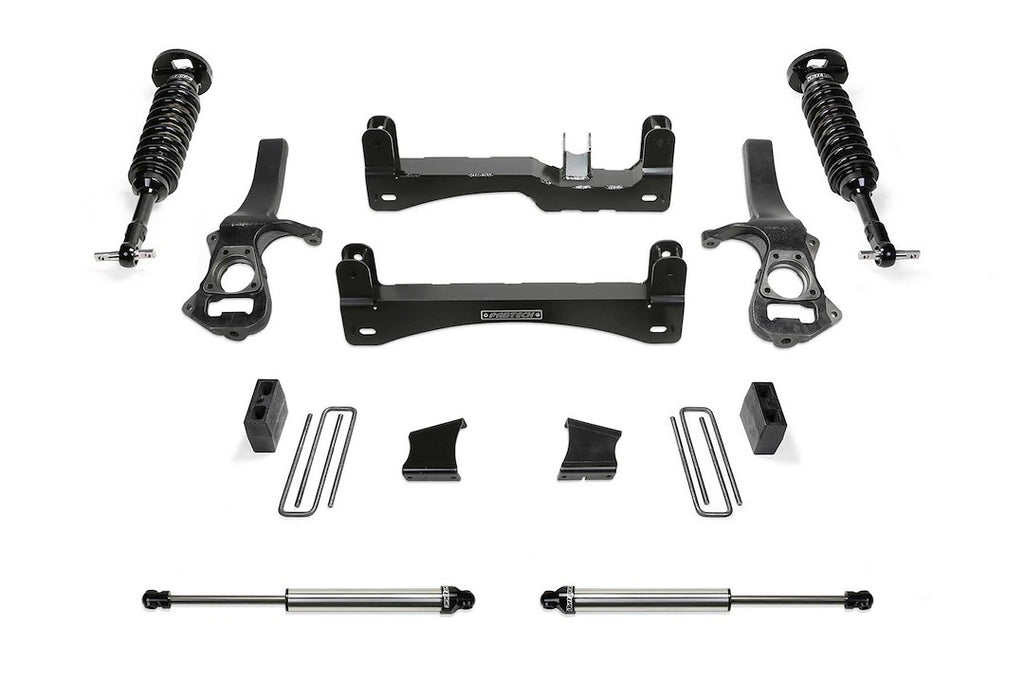

Fabtech Motorsports offers a robust suspension system designed to elevate the performance of select trucks. This kit provides a 4 inch front lift and a 3 inch rear lift, allowing for the installation of 35 inch tall tires while maintaining a near stock track width for a clean aesthetic. The system includes essential components such as front steering knuckles, crossmembers, and rear lift blocks, ensuring a comprehensive upgrade to the vehicle's suspension.
The design features arched crossmembers that maximize ground clearance and enhance the strength of the front suspension. Steering knuckles are engineered to eliminate bump steer throughout the suspension travel, while oversized tie rods are included to accommodate larger tires. The Dirt Logic shocks, constructed with a stainless steel body and NitroSteel piston rod, provide exceptional durability and corrosion resistance, making them suitable for off-road conditions.
Additional features include a heavy-duty front differential skid plate for protection against obstacles, triple differential mounts that optimize the front differential positioning, and billet spacers that control suspension travel. The rear lift blocks replace factory components without compromising ride quality or load capacity, ensuring a balanced performance. This lift kit is a technical solution for those looking to enhance their vehicle's off-road capabilities.
Features
- Crossmembers Are Arched For Maximum Ground Clearance And Provides Additional Strength To The Front Suspension
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Protects The Differential From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1197DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500- New Model
