Enhance offroad performance with advanced suspension technology.

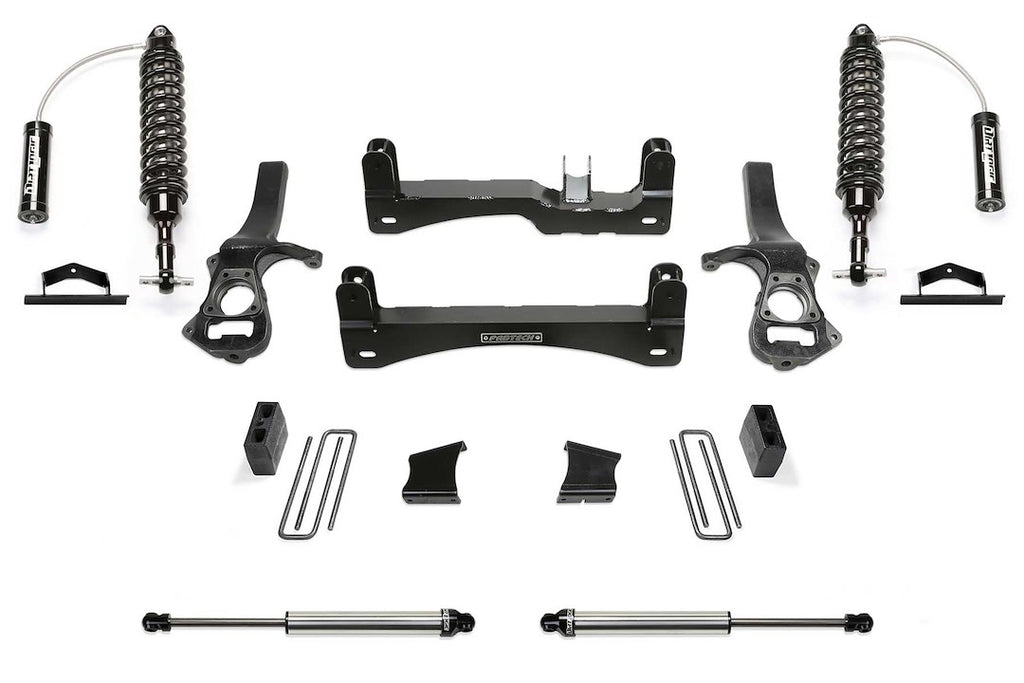

Fabtech Lift Kit Suspension is engineered to improve both on-road and off-road driving capabilities. This kit features a 6 inch front lift and a 5 inch rear lift, utilizing Dirt Logic remote reservoir coil over shock absorbers for superior performance. The design minimizes bump steer throughout the suspension cycle, enhancing vehicle control and reducing driver fatigue. With a near stock track width, the kit maintains a clean appearance while keeping tires securely under the fenders.
The kit includes arched crossmembers for maximum ground clearance and added strength, along with oversized tie rods to accommodate larger tires. The stainless steel body of the Dirt Logic shocks ensures maximum corrosion resistance and durability, making them suitable for various driving conditions. Additionally, the heavy-duty front differential skid plate protects critical components from offroad obstacles, while triple differential mounts optimize the driveshaft angle to minimize vibration at high speeds.
Billet spacers are included to relocate factory bump stops, controlling suspension travel and preventing over cycling. Rear lift blocks replace factory components to provide additional lift without compromising ride quality or load capacity. U-bolts are designed to securely attach the rear differential, ensuring stability and performance. This comprehensive lift kit is a robust solution for enhancing vehicle capability and performance.
Features
- Crossmembers Are Arched For Maximum Ground Clearance And Provides Additional Strength To The Front Suspension
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Protects The Differential From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1194DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500- New Model
