Enhance offroad performance with advanced suspension technology.

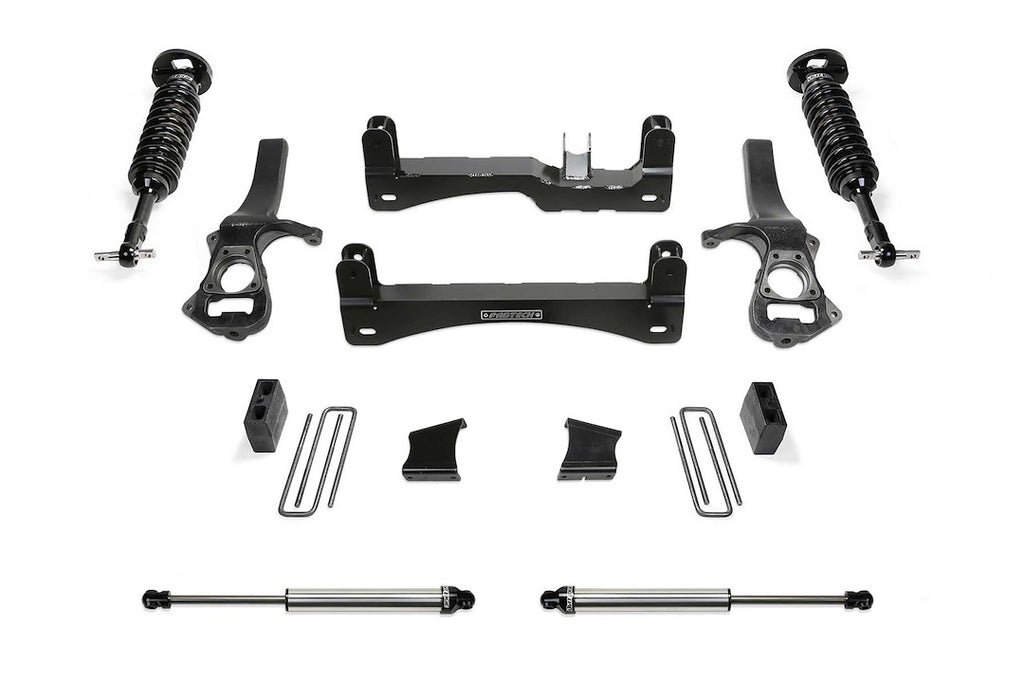

Fabtech Lift Kit Suspension is engineered to improve vehicle handling both on and off-road. This kit features a 6 inch front lift and a 5 inch rear lift, utilizing Dirt Logic coil over shock absorbers and shock absorbers for enhanced performance. The design minimizes bump steer throughout the suspension cycle, which reduces driver fatigue and enhances overall driveability. The proprietary steering knuckle geometry ensures an excellent turning radius, making it easier to navigate tight spaces.
The kit includes arched crossmembers that provide maximum ground clearance and additional strength to the front suspension. Oversized tie rods replace stock units, accommodating larger tires while maintaining stability. The Dirt Logic shocks are constructed with a stainless steel body and NitroSteel piston rod, ensuring maximum corrosion resistance and durability. A heavy-duty front differential skid plate protects critical components from offroad obstacles, while triple differential mounts ensure proper positioning to reduce driveline vibration at high speeds.
Billet spacers are included to relocate factory bump stops, controlling travel and preventing over cycling of the suspension. Rear lift blocks replace factory blocks, providing additional lift without compromising ride quality or load capacity. U-bolts are designed to securely attach the rear differential to the vehicle, ensuring a robust installation. This comprehensive lift kit is designed for vehicles with a maximum tire size of 35 x 12.50, making it a versatile choice for offroad enthusiasts.
Features
- Crossmembers Are Arched For Maximum Ground Clearance And Provides Additional Strength To The Front Suspension
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Protects The Differential From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K1193DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2024 Chevrolet Silverado 1500
- 2022-2022 Chevrolet Silverado 1500- New Model
- 2023-2024 GMC Sierra 1500
- 2022-2022 GMC Sierra 1500- New Model
