Enhance your Ford Super Duty's performance with superior suspension technology.

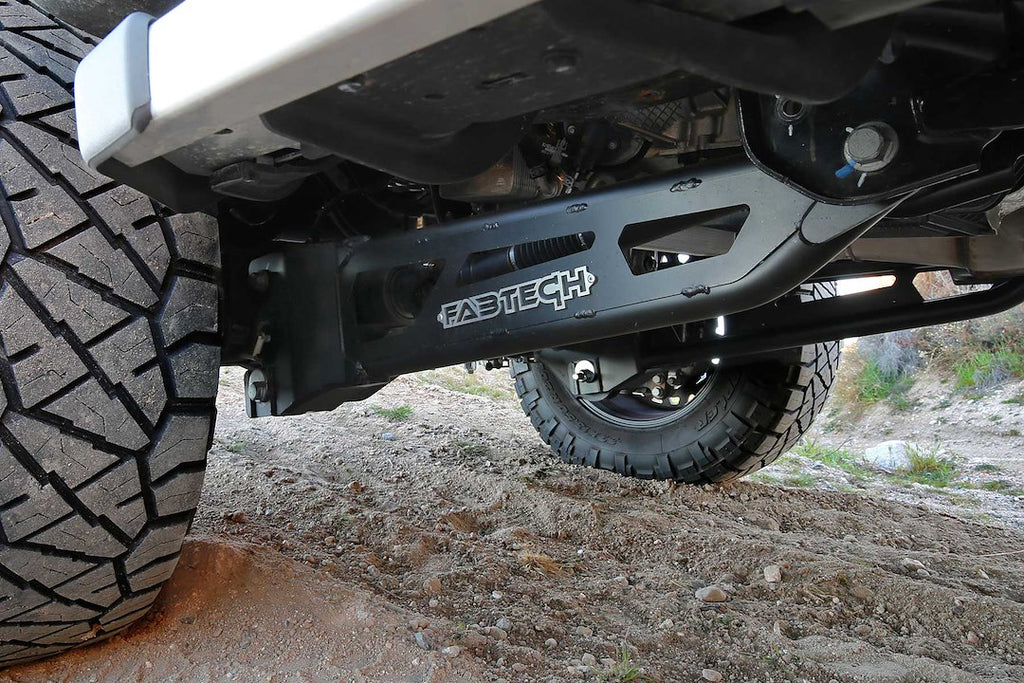

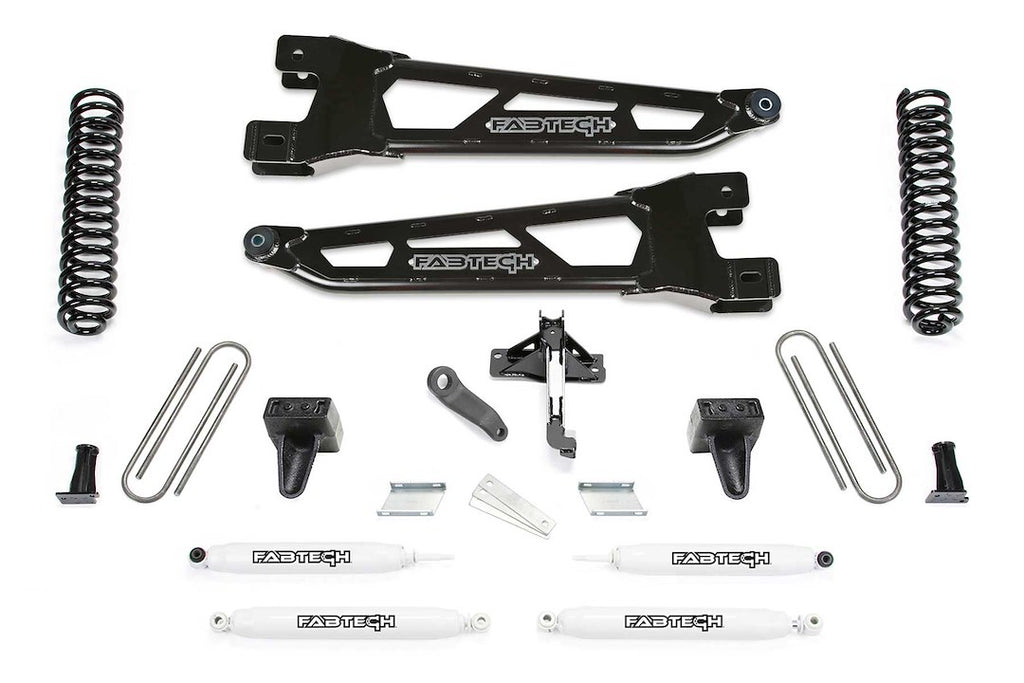

Fabtech's 6 Inch Radius Arm lift kit is engineered specifically for the Ford Super Duty, designed to meet the rigorous demands of both on and offroad driving. This heavy-duty suspension upgrade enhances the vehicle's strength and stability, featuring Fabtech's renowned tubular Radius Arms that combine advanced offroad racing technology with a smooth driving experience. The kit includes high-quality front coil springs and rear lift blocks, ensuring optimal ride quality without compromising load capacity.
The lift kit's design incorporates a robust track bar relocation bracket and a new pitman arm, which effectively centers the front axle and allows for full lock steering with larger tires. The innovative construction of the components, including hot wound coils and cast iron rear lift blocks with integrated bump stops, ensures durability and performance. Additionally, the kit repositions factory brake lines to accommodate the new travel range, enhancing safety and functionality.

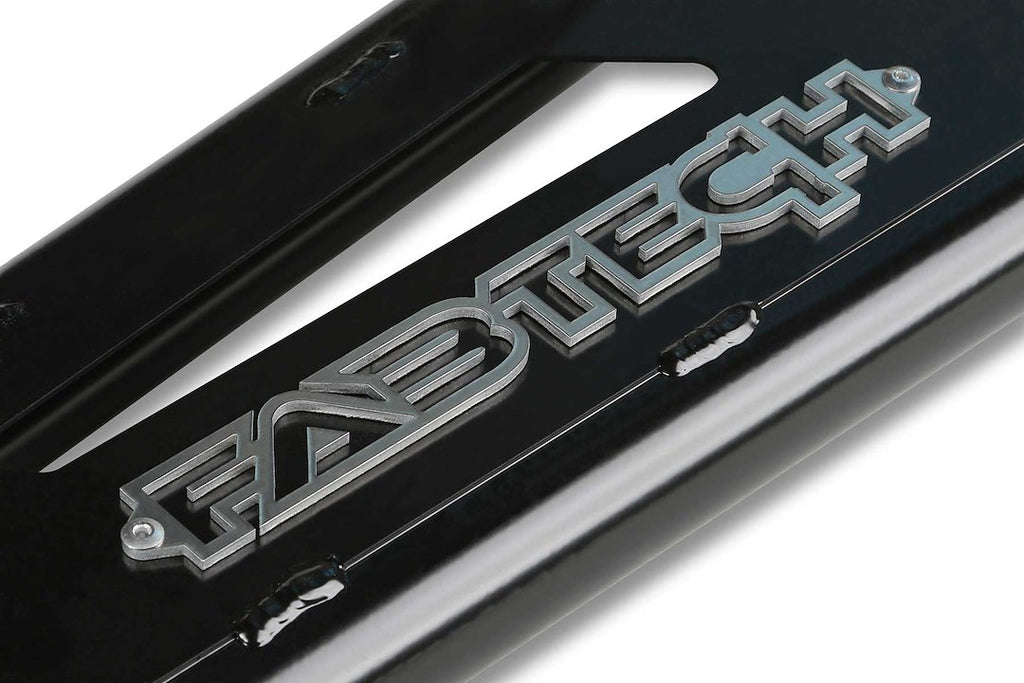

With a modern aggressive look, highlighted by a bold laser cut logo, this lift kit not only improves offroad capability but also adds aesthetic appeal to your vehicle. The combination of superior materials and thoughtful engineering makes this suspension system a reliable choice for truck enthusiasts looking to tackle challenging terrains while maintaining everyday drivability.
Features
- Redesigned Tubular Construction And Side Plate Provide Superior Strength And Modern Aggressive Look
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Forged Steel Construction With High Strength Material
- Enhanced Steering Functionality
- Re-Positions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2413
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Lift Blocks And U-Bolts
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 12.5
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
