Enhance on-road performance and off-road capability with this advanced lift kit.
Fabtech's 4 Link lift kit is engineered to significantly improve both on-road handling and off-road performance for your vehicle. This comprehensive system replaces the factory Radius Arm suspension with a robust 4 Link design, ensuring reduced caster change throughout the travel range, which enhances stability during on-road driving. Off-road, the kit offers superior articulation compared to traditional Radius Arm setups, allowing for better navigation over rugged terrain at various speeds.

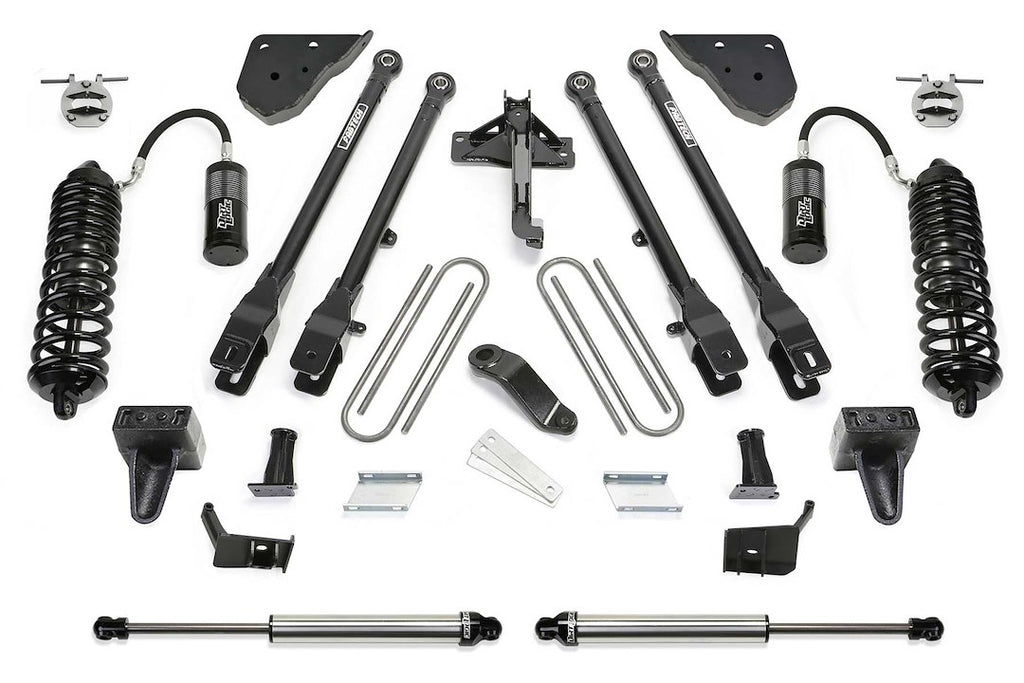

The kit includes high-quality components, such as Fabtech's legendary 5 Ton Joints on the frame pivot side, ensuring exceptional strength and durability. The 4 Link arms are attached to 1/4 inch thick steel frame brackets that integrate seamlessly with the factory Radius Arm brackets, providing a solid foundation for the new suspension. Additionally, the coil springs included in the kit allow for increased wheel travel, enhancing the vehicle's capability to handle diverse driving conditions.
Designed with precision, the kit features a stout box style bracket that minimizes deflection during track bar movement, and a dropped pitman arm constructed from forged steel for added strength. The semi-boxed construction of the brackets can withstand full impact compression, ensuring reliability under heavy use. Furthermore, the cast iron rear lift blocks with integrated bump stops replace stock blocks, providing additional lift without compromising ride quality or load capacity.
Features
- Fabtech's Legendary 5 Ton Joints Are Used On The Frame Pivot Side For Superior Strength
- Features 4 Link Arms Attach To 1/4 Inch Thick Steel Frame Brackets That Integrate Into The Factory Radius Arm Brackets For A Solid Mounting Of The New Suspension
- Coil Springs Handle The Weight Of The Vehicle While Providing 2 Inch Of Increased Wheel Travel Over Stock
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Dropped Pit Man Arm: Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- The Bracket's Semi Boxed Construction Can Handle The Full Impact Compression
- Features 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Steering Stabilizer Brackets: Retains The Stock Vehicle Heavy-Duty Steering Stabilizer With A 1/4 Inch Thick Steel Bracket And Support Brace To Help Reduce Tire Shimmy
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2411DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50

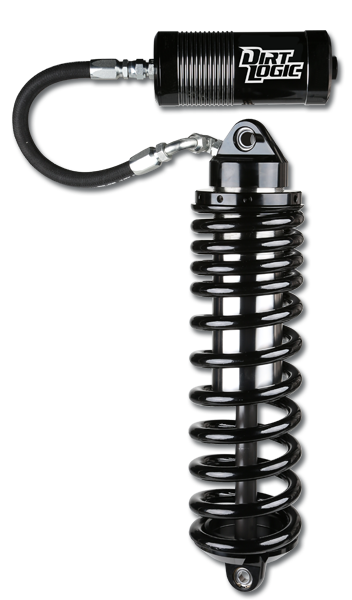

- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Blocks And U-Bolts

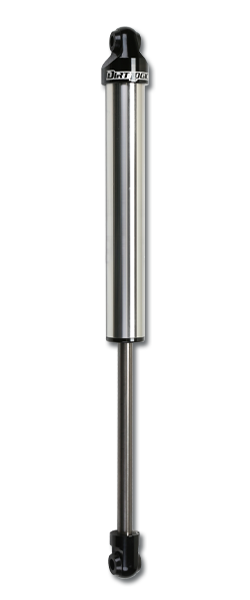

- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
