Enhance on-road performance and off-road capability with this comprehensive lift kit.
Fabtech's 4 Link lift kit is engineered to significantly improve both on-road performance and off-road capability for your vehicle. This advanced suspension system replaces the factory Radius Arm setup with a robust 4 Link configuration, ensuring less caster change throughout the travel range, which enhances driving stability. Designed for rugged terrain, the kit allows for greater articulation compared to traditional systems, making it suitable for various off-road conditions.

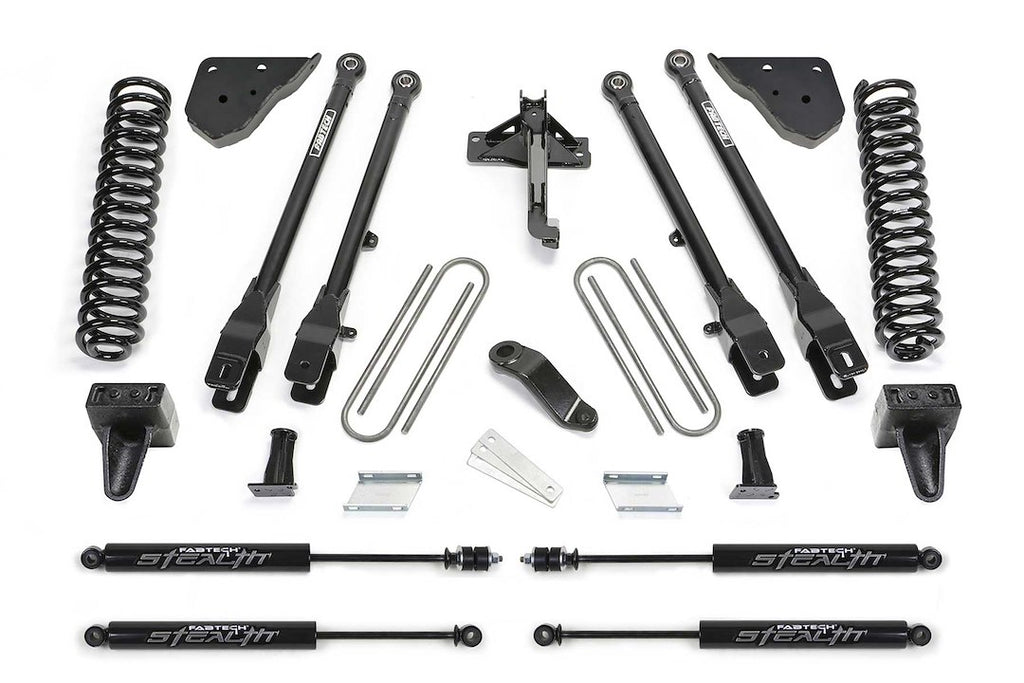

The lift kit includes high-quality components such as hot wound coils for a compliant ride quality and heavy-duty brackets that integrate seamlessly with the factory setup. Each part is meticulously crafted to provide superior strength and durability, ensuring long-lasting performance. The kit also features a dropped pitman arm and steering stabilizer brackets to maintain optimal steering response and reduce vibrations.

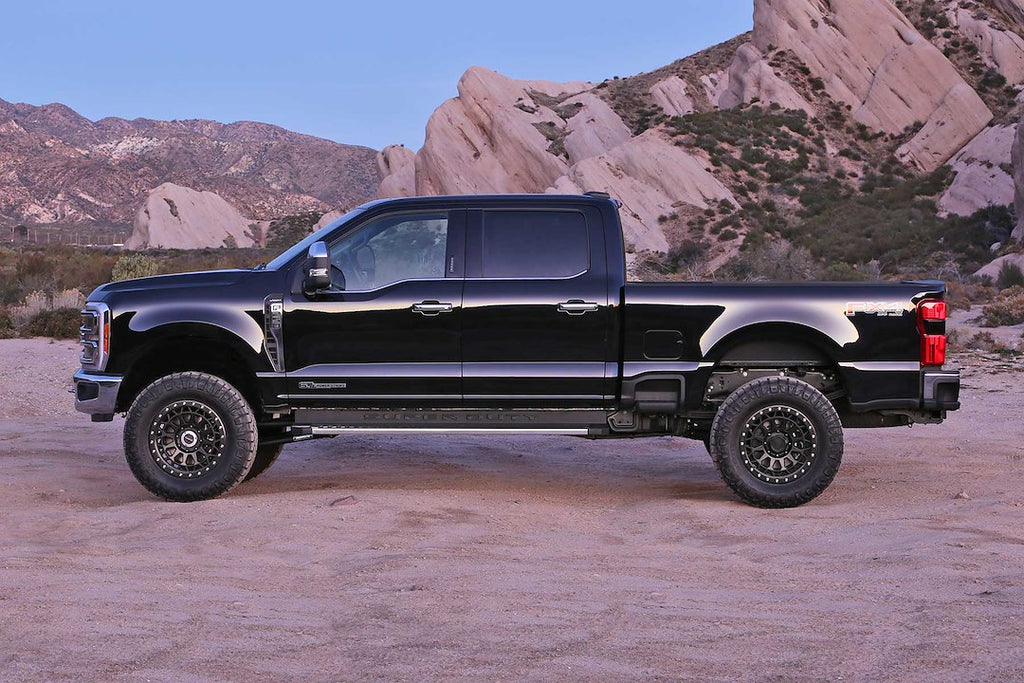

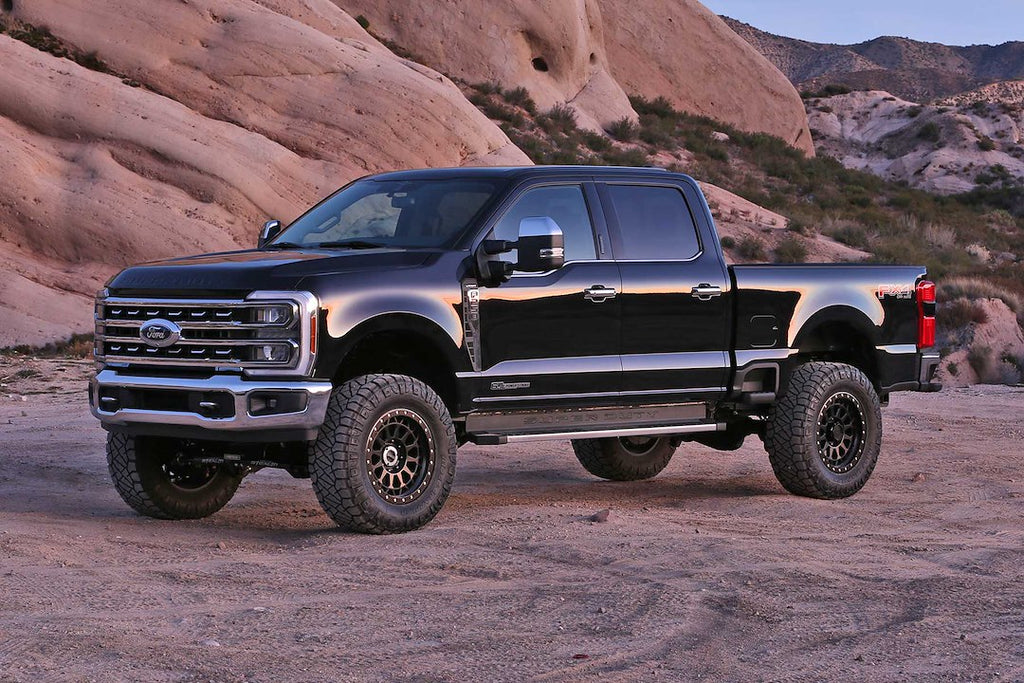

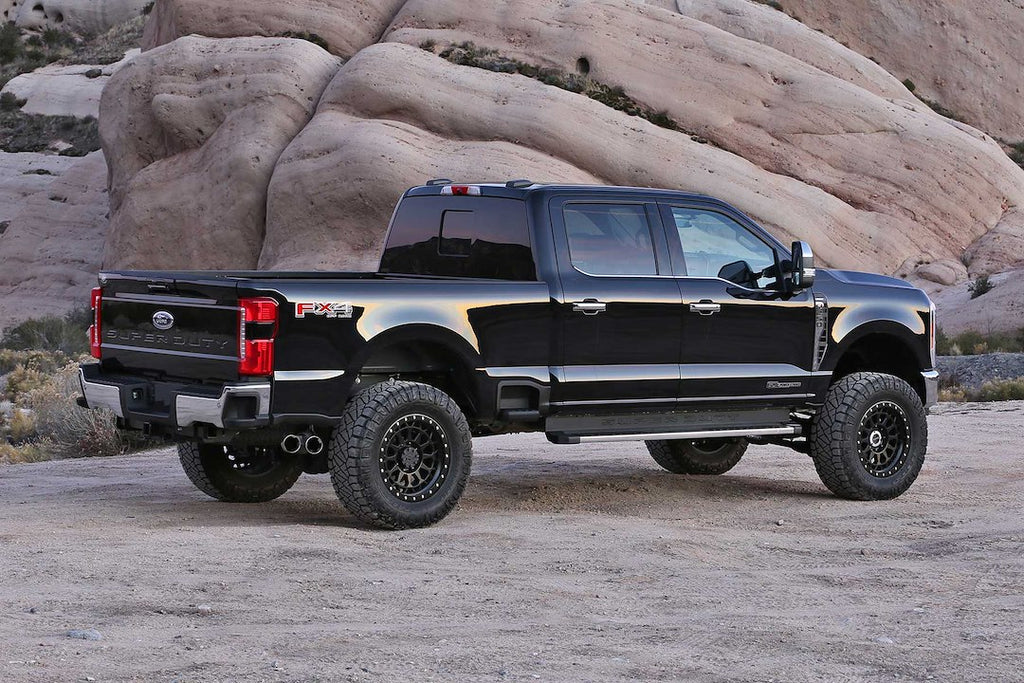

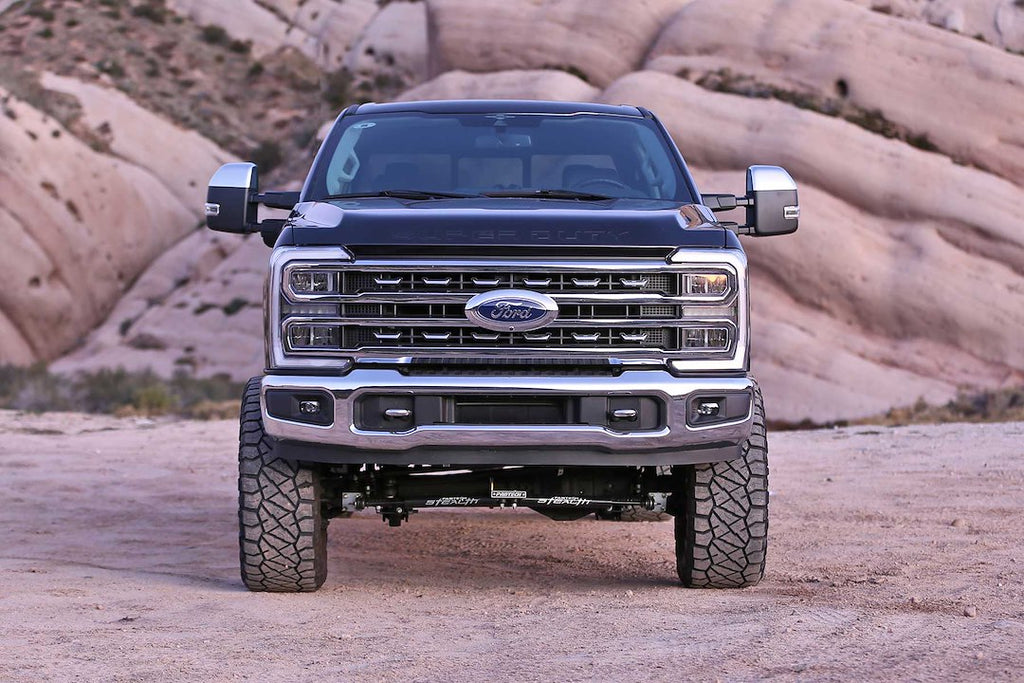

With a 4 inch lift in both the front and rear, this kit accommodates larger tires, enhancing the vehicle's stance and off-road presence. The inclusion of cast iron rear lift blocks with integrated bump stops ensures that the ride quality remains unaffected while increasing load-carrying capacity. Fabtech's 4 Link lift kit is a proven solution, backed by over a decade of military application experience, making it a reliable choice for serious off-road enthusiasts.
Features
- Fabtech's Legendary 5 Ton Joints Are Used On The Frame Pivot Side For Superior Strength
- Features 4 Link Arms Attach To 1/4 Inch Thick Steel Frame Brackets That Integrate Into The Factory Radius Arm Brackets For A Solid Mounting Of The New Suspension
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Dropped Pit Man Arm: Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- The Bracket's Semi Boxed Construction Can Handle The Full Impact Compression
- Features 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Steering Stabilizer Brackets: Retains The Stock Vehicle Heavy-Duty Steering Stabilizer With A 1/4 Inch Thick Steel Bracket And Support Brace To Help Reduce Tire Shimmy
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2409M
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts

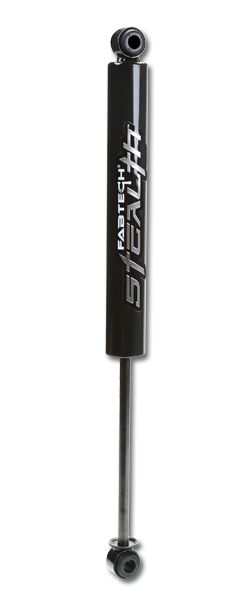

- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
