Enhance on-road performance and off-road capability with this comprehensive lift kit.
Fabtech's 4 Link lift kit is engineered to significantly improve both on-road handling and off-road performance for your vehicle. This advanced suspension system replaces the factory Radius Arm setup with a robust 4 Link configuration, allowing for enhanced articulation and stability across various terrains. The kit includes high-quality components designed to maintain optimal suspension geometry, ensuring a compliant ride quality whether on smooth roads or rugged trails.

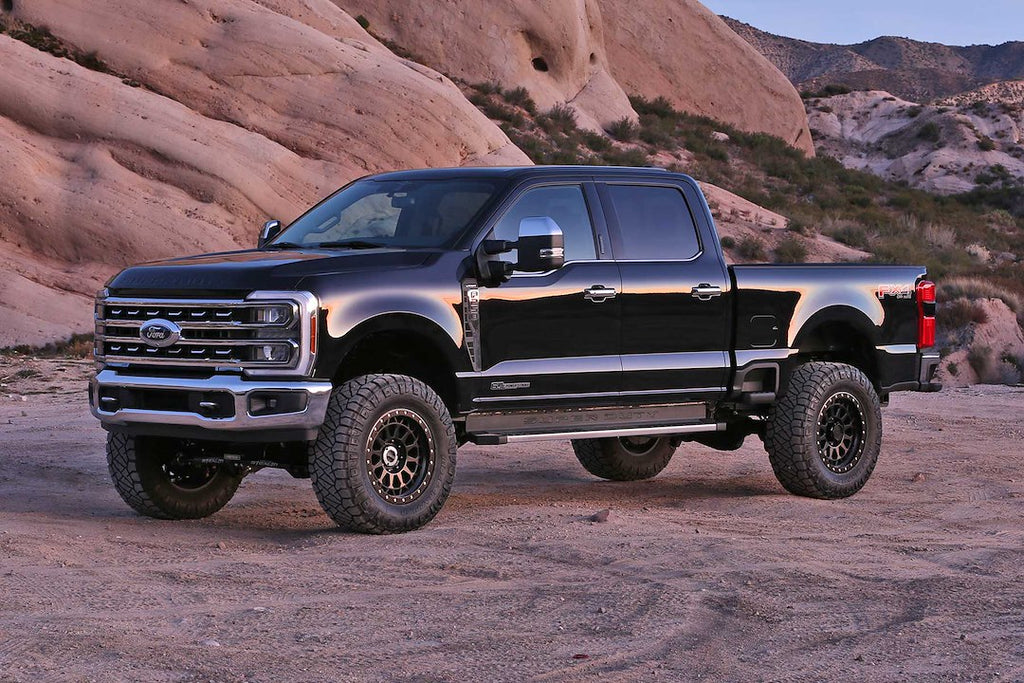

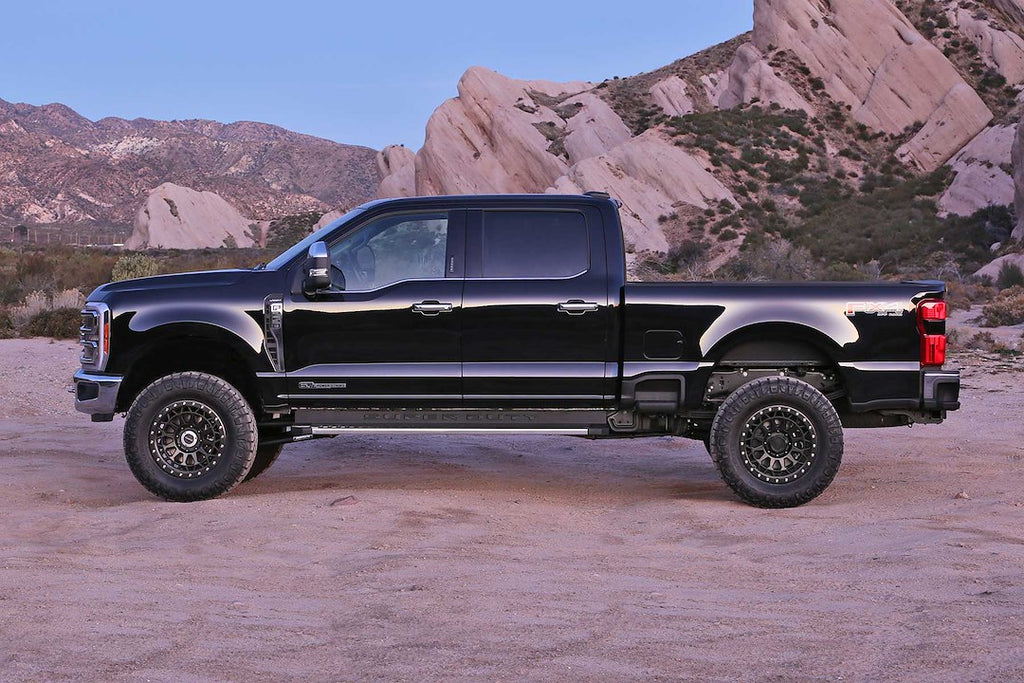

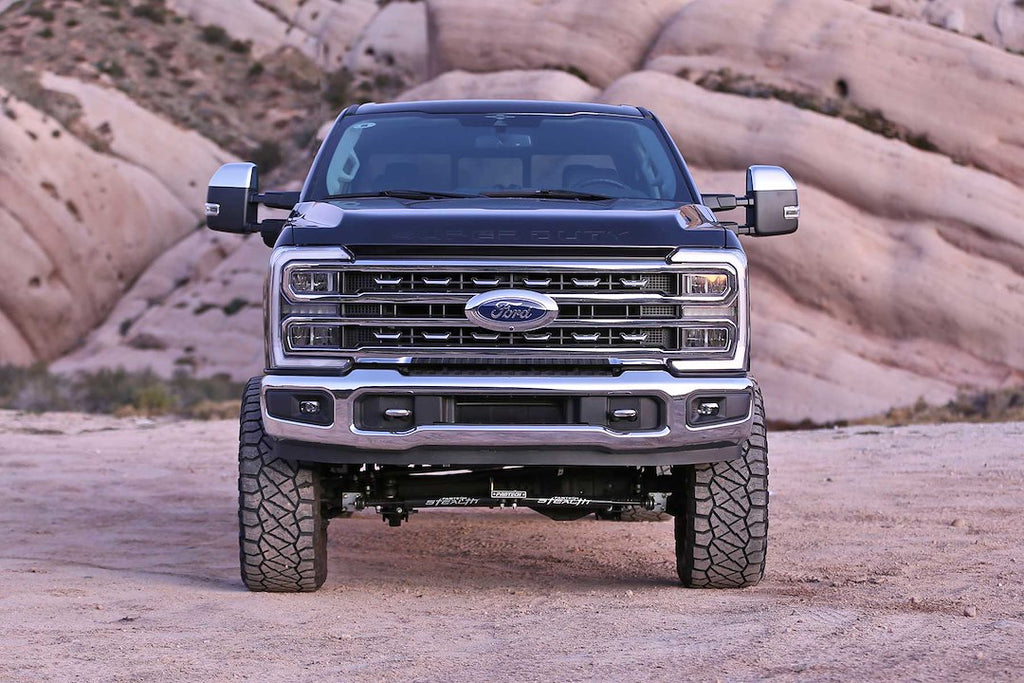

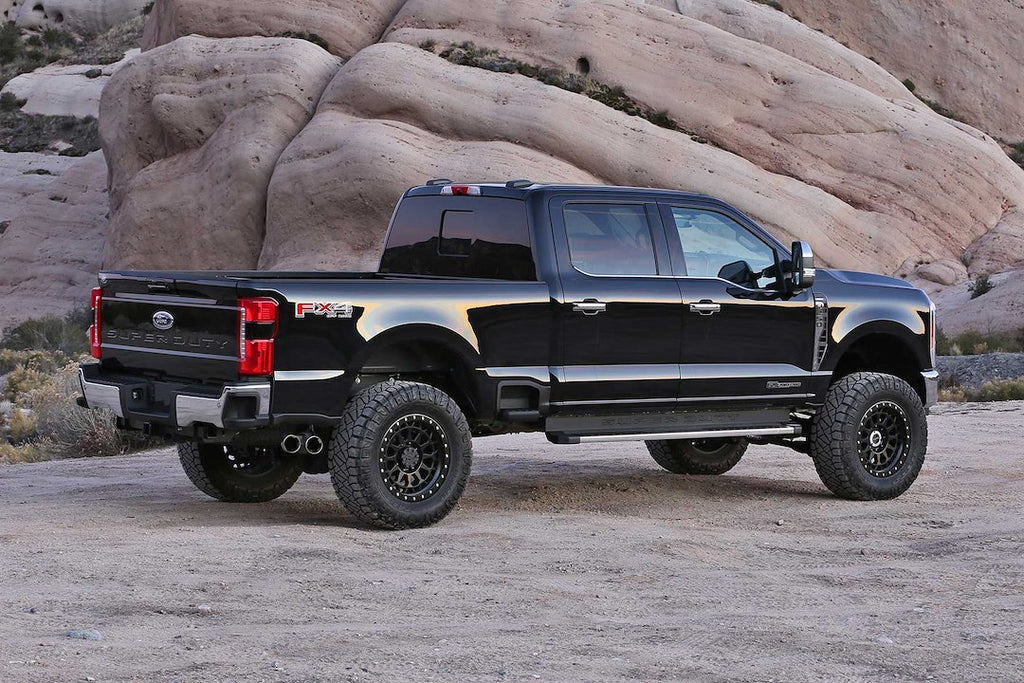

The lift kit features a 4 inch front and rear lift, accommodating larger tires up to 37 x 13.50 inches. Each component, from the hot wound coils to the heavy-duty brackets, is meticulously crafted to withstand the demands of both military and civilian applications. The use of Fabtech's legendary 5 Ton Joints on the frame pivot side ensures superior strength and durability, while the semi-boxed construction of the brackets minimizes deflection during operation.
Installation is straightforward with all necessary hardware included, making it a practical choice for those looking to enhance their vehicle's capabilities. The kit also retains the stock vehicle's heavy-duty steering stabilizer, further improving handling and reducing tire shimmy. With a focus on quality and performance, Fabtech's 4 Link lift kit stands out as a top-tier solution for serious off-road enthusiasts.

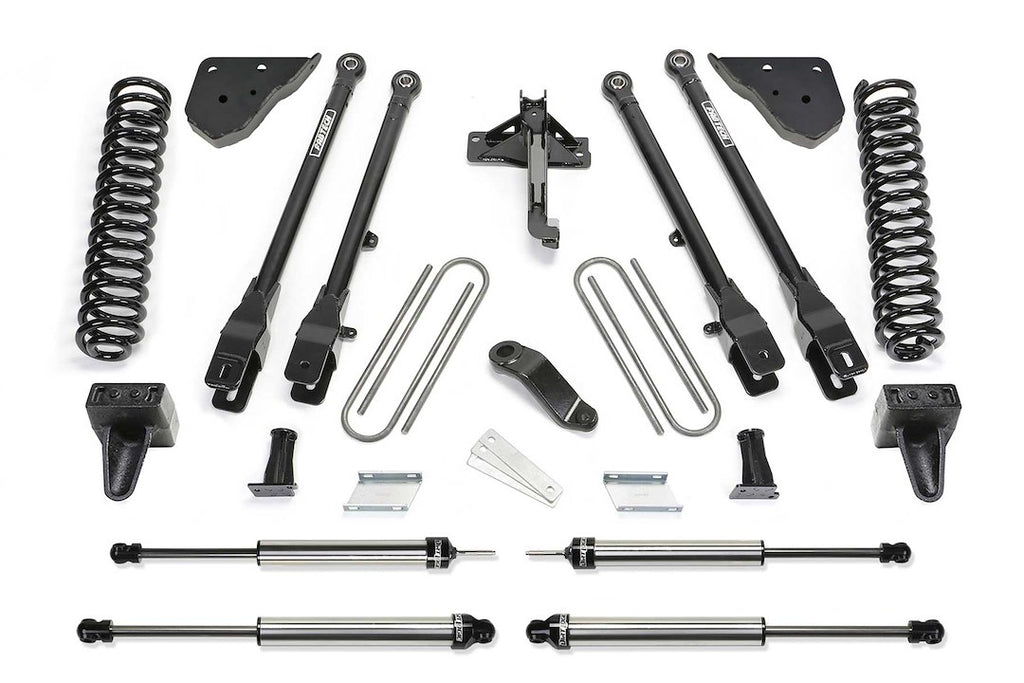

Features
- Fabtech's Legendary 5 Ton Joints Are Used On The Frame Pivot Side For Superior Strength
- Features 4 Link Arms Attach To 1/4 Inch Thick Steel Frame Brackets That Integrate Into The Factory Radius Arm Brackets For A Solid Mounting Of The New Suspension
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Dropped Pit Man Arm: Forged Steel Construction With High Strength Material That Exceeds The Factory Specifications
- The Bracket's Semi Boxed Construction Can Handle The Full Impact Compression
- Features 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Steering Stabilizer Brackets: Retains The Stock Vehicle Heavy-Duty Steering Stabilizer With A 1/4 Inch Thick Steel Bracket And Support Brace To Help Reduce Tire Shimmy
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replaces The Stock Blocks For Additional Lift Without Changing The Ride Quality Of The Factory Rear Suspension Or Load Carrying Capacity
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2409DL
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 37 x 13.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts

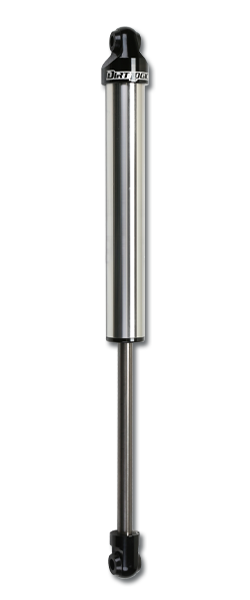

- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
Technical Documents
