Enhance performance with a robust 6 inch lift and superior offroad capability.

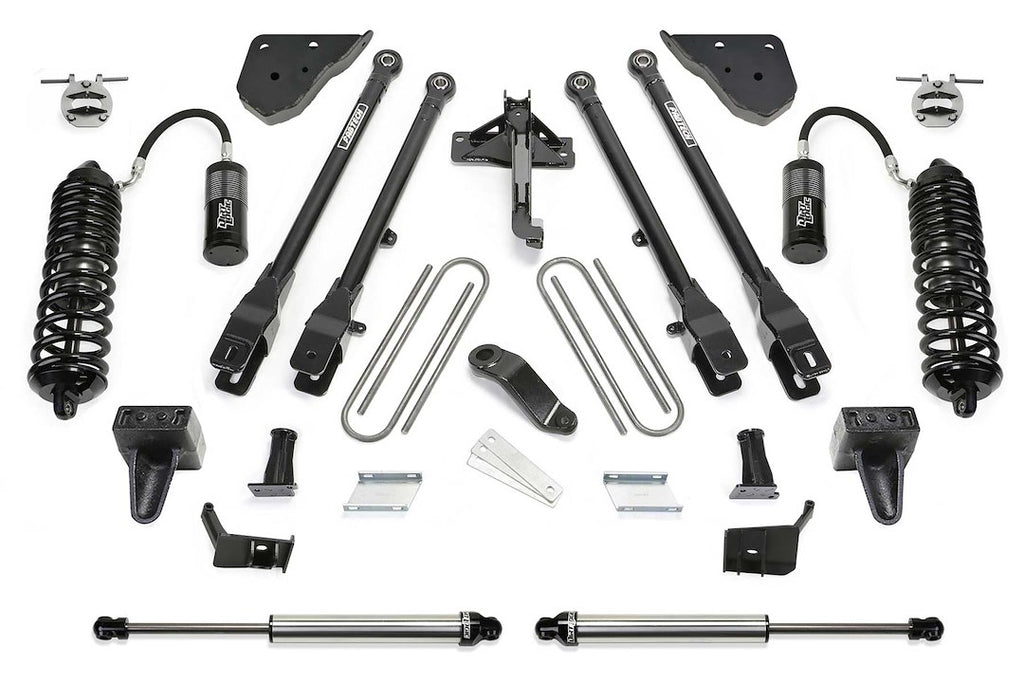

Fabtech's 4 Link lift kit is engineered specifically for the Ford Super Duty, offering a comprehensive solution for those seeking enhanced on-road performance and off-road capability. This system replaces the factory Radius Arm suspension with a 4 Link configuration, which minimizes caster change throughout the travel range, thereby improving driving stability. The kit includes high-quality components such as replacement coil springs, a track bar relocation bracket, and a pitman arm, ensuring a complete and effective installation.

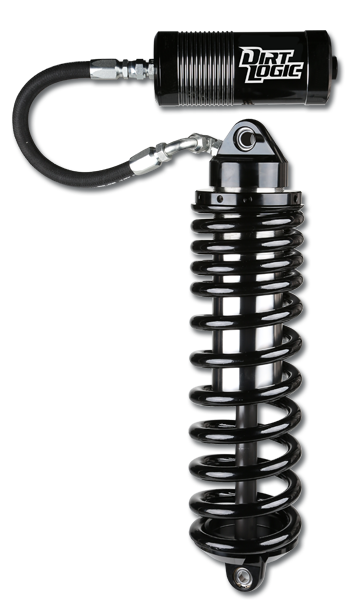

Designed for rugged terrain, the 4 Link lift kit provides increased articulation compared to traditional Radius Arm systems, allowing for better handling over obstacles at various speeds. The inclusion of Dirt Logic 4.0 remote reservoir coil over shock absorbers in the front and non-reservoir shock absorbers in the rear enhances ride quality both on and off the road. With over a decade of proven performance in military applications, this lift kit exemplifies durability and reliability.
The kit also features heavy-duty link arms and robust sway bar drop brackets, which are essential for maintaining proper suspension geometry and steering functionality. The rear lift is achieved through a block and u-bolt system, ensuring secure attachment of the differential. Fabtech's commitment to quality and performance makes this lift kit a top choice for Ford Super Duty owners looking to elevate their vehicle's capabilities.
Features
- Fabtech Heavy Duty Link Arms: Fabtech’s Legendary 5 Ton Joints Are Used On The Frame Pivot Side For Superior Strength
- Fabtech Front Coil Springs: Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Trac Bar Relocation Bracket: 1/4 Inch Thick Steel Bracketry Repositions The Factory Track Bar To Center The Axle Under The Vehicle With The Increased Lift Height
- Sway Bar Drop Brackets: 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Pitman Arm: Designed Specifically For The Ford Super Duty To Work In Conjunction With The Factory Drag Link And Fabtech’s Track Bar Bracket For Proper Steering Functionality
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle: A Critical Part That Demands The Best Quality For Your Vehicle

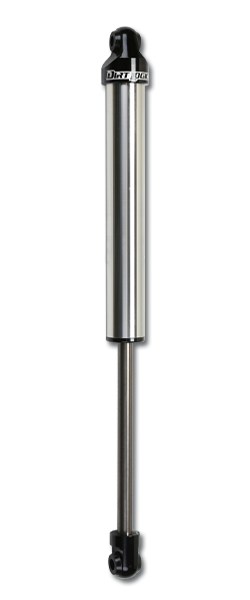

- Dirt Logic 2.25’s Are Designed To Replace Factory Shocks With A Larger, More Robust Configuration
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2420DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Over Shock Absorbers
- Rear Lift Type: Non Reservoir Shock Absorbers
- Minimum Wheel Diameter: 17
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
