Enhance performance with a robust 6 inch lift and superior articulation.
Fabtech's 4 Link lift kit for the Ford Super Duty is engineered to enhance both on-road performance and off-road capability. This comprehensive system replaces the factory Radius Arm suspension with a 4 Link front suspension, ensuring minimal caster change throughout the travel range, which improves driving stability. Designed for rugged terrain, the kit offers increased articulation compared to traditional systems, allowing for better handling over obstacles at various speeds.

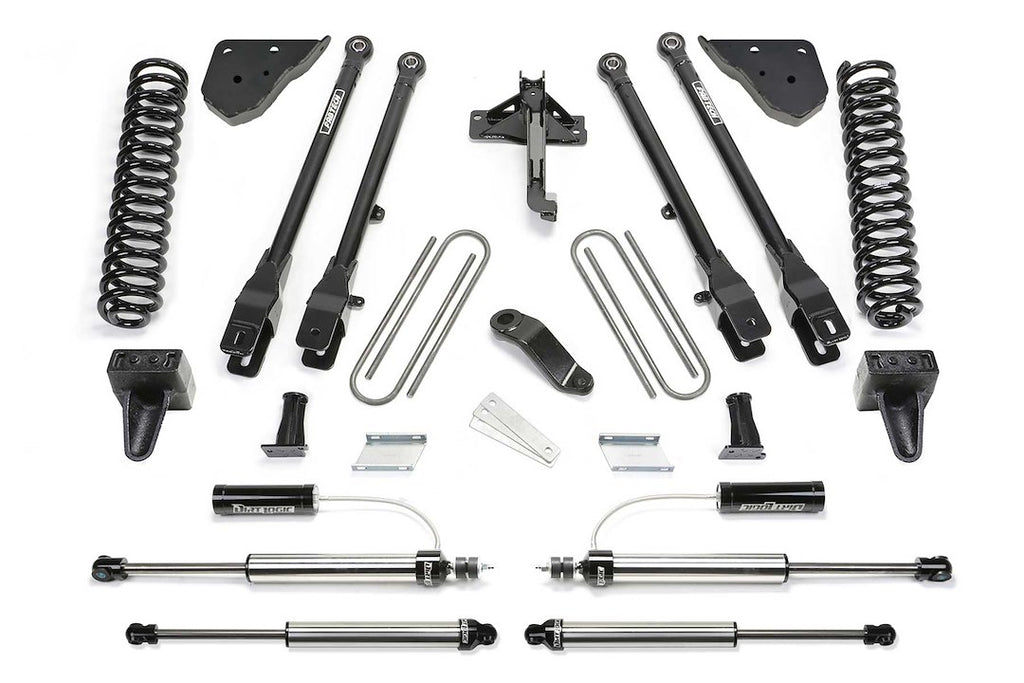

The lift kit includes high-quality components such as replacement coil springs, a track bar relocation bracket, and a pitman arm, all crafted to maintain proper suspension geometry. The rear lift is achieved through a block and u-bolt kit, ensuring secure attachment of the rear differential. With over a decade of proven service in military applications, this lift kit stands out for its durability and performance.
Fabtech's commitment to quality is evident in the use of heavy-duty link arms and specially designed Dirt Logic shocks, which replace factory shocks with a more robust configuration. The kit is designed to accommodate larger tires, enhancing the vehicle's off-road capabilities while maintaining a compliant ride quality on various terrains.
Features
- Fabtech Heavy Duty Link Arms: Fabtech’s Legendary 5 Ton Joints Are Used On The Frame Pivot Side For Superior Strength
- Fabtech Front Coil Springs: Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Trac Bar Relocation Bracket: 1/4 Inch Thick Steel Bracketry Repositions The Factory Track Bar To Center The Axle Under The Vehicle With The Increased Lift Height
- Sway Bar Drop Brackets: 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Pitman Arm: Designed Specifically For The Ford Super Duty To Work In Conjunction With The Factory Drag Link And Fabtech’s Track Bar Bracket For Proper Steering Functionality
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle: A Critical Part That Demands The Best Quality For Your Vehicle

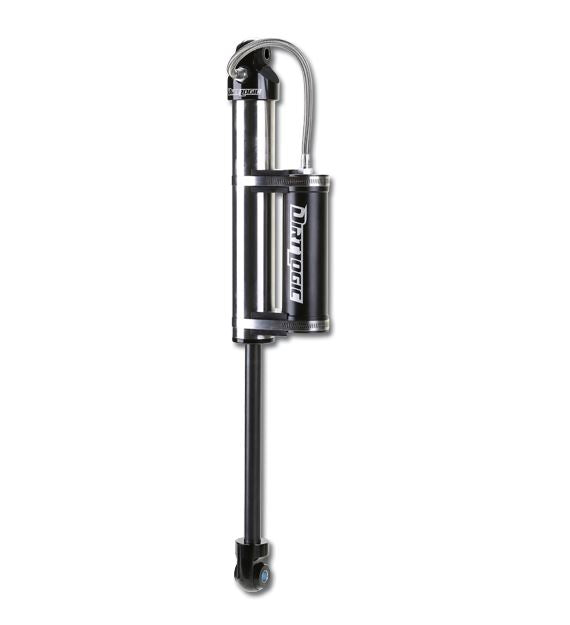

- Dirt Logic 2.25’s Are Designed To Replace Factory Shocks With A Larger, More Robust Configuration
Specifications
- Manufacturer: Fabtech Motorsports
- Manufacturer Part Number: K2418DL
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Springs
- Rear Lift Type: Lift Blocks
- Minimum Wheel Diameter: 17
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Compatibility / Fit
- 2023-2025 Ford F-250 Super Duty
- 2023-2025 Ford F-350 Super Duty
