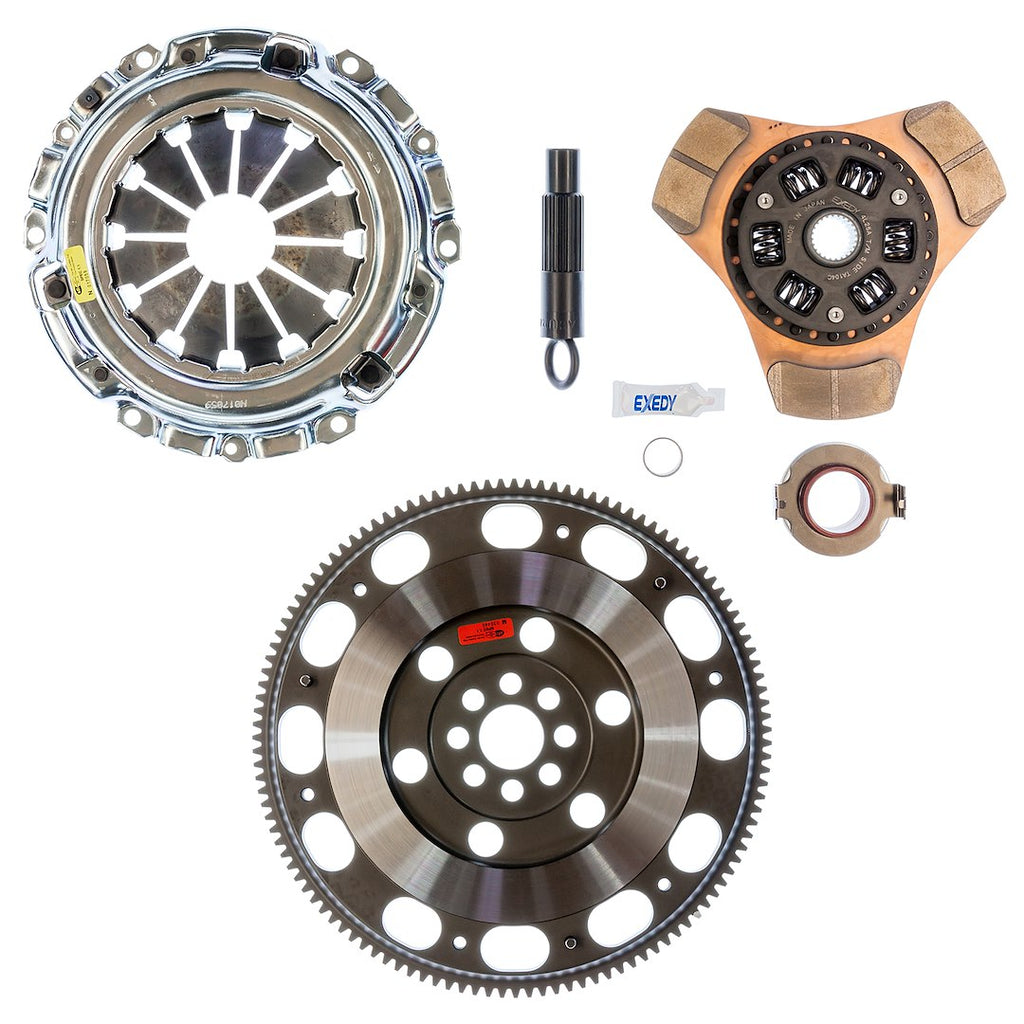

Exedy Cerametallic Clutch Set (MPN: 08951FW)

High-performance clutch set for modified engines with advanced features.

The Exedy Cerametallic Clutch Set is engineered for high power modified engines, providing superior performance and durability. Utilizing cerametallic friction material, this clutch set can withstand significantly more abuse than standard disc assemblies, ensuring reliable operation without slipping or fading. The Stage 2 design incorporates sprung center dampers that effectively reduce impact and shock loads transmitted through the drivetrain, enhancing overall vehicle performance.

This clutch set features both thick and thin disc options, allowing users to choose based on their specific needs. The thick discs offer enhanced heat capacity for demanding applications, while the thin discs reduce inertia, facilitating quicker shifts and improved synchro durability. The pressure plates are constructed from ductile materials, achieving high burst strength across various temperature ranges, which contributes to the clutch's longevity and reliability.

Exedy Lightweight Flywheels complement this clutch set by combining low weight and high thermal capacity, designed for both racing and street use. The flywheels are made from solid one-piece billet chromoly steel or chromoly steel forgings, ensuring reduced weight and inertia for better engine response. Special design features enhance airflow, improving cooling efficiency, while the integrated ring gear teeth eliminate the risk of separation seen in aluminum flywheels.

Features

• EXEDY Cerametallic Clutches Are Designed To Handle The Abuse Of High Power Modified Engines
• Cerametallic Friction Material Can Handle Much More Abuse Than Stock Type Disc Assemblies Without Slipping And Fading
• Stage 2 Cerametallic Clutch Discs Have Sprung Center Dampers To Reduce The Impact And Shock Loads Transmitted Through The Drivetrain
• The “thick” Discs Have Better Heat Capacity And Therefore Better Durability In Demanding Applications
• The “thin” Discs Offer Greatly Reduced Inertia To Improve Shift Effort, Allow For Quicker Shifting, And Improve Synchro Durability
• Ductile Material Is Used For All Pressure Plates And, High Burst Strength Can Be Achieved In All Temperature Ranges
• Clutch Covers Are Designed To Achieve A Clamping Load That Is Approx. 40 Percent Higher Than The Genuine Part Allowing A Higher Torque Transmitting Capacity

Specifications

• Manufacturer: Exedy Clutch and Flywheels
• Manufacturer Part Number: 08951FW
• Input Shaft Size: 1 Inch X 24 Spline
• Pressure Plate Design: Diaphragm
• Disc Diameter: 215 Millimeter
• Number Of Friction Discs: 1 Disc
• Disc Friction Material: Cerametallic
• Disc Hub Design: Sprung
• Pressure Plate Clamp Load: 1596 Pound
• Pressure Plate Centrifugal Assist: No Centrifugal Assist
• Torque Holding Capacity: 224 Feet/Pound
• Includes Throwout Bearing: No
• Includes Pilot Bearing: No
• Includes Alignment Tool: Yes

Compatibility / Fit

• 2002-2015 Honda Civic
