Reliable 2 Circuit Connector for Efficient Electrical Systems

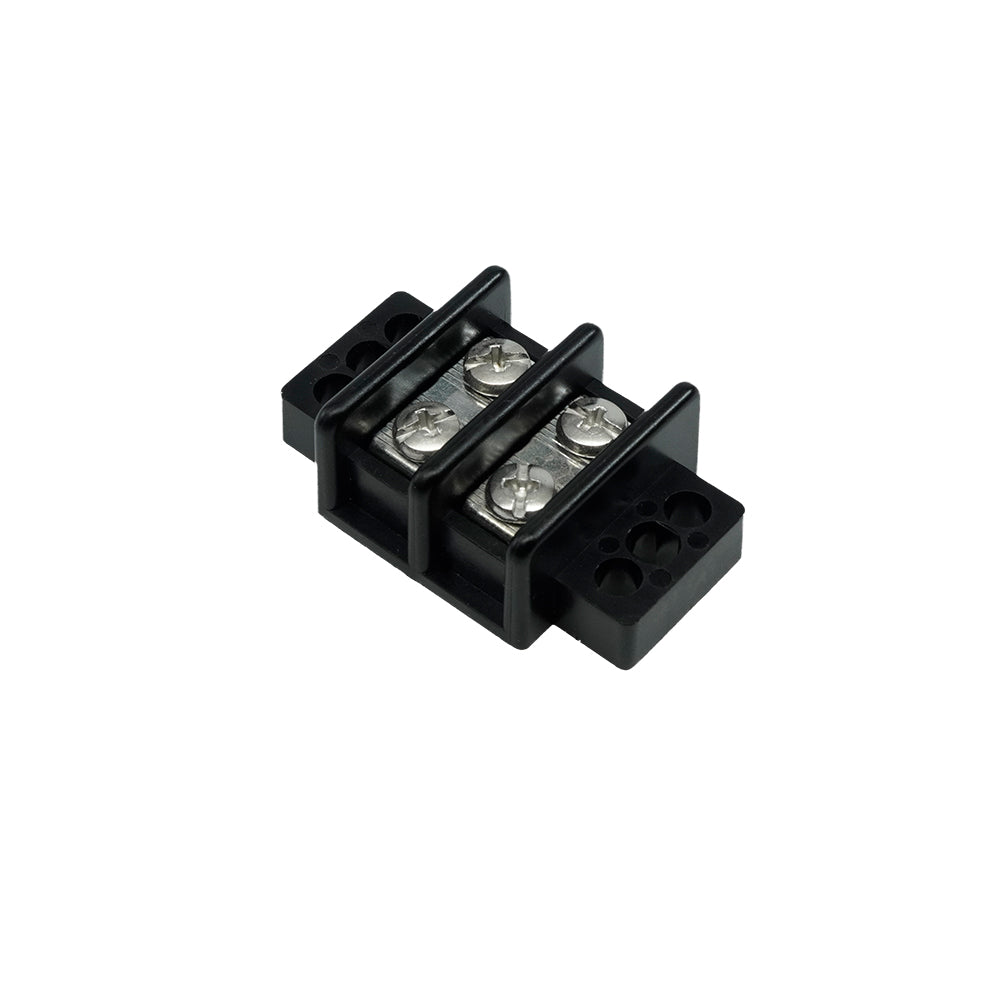

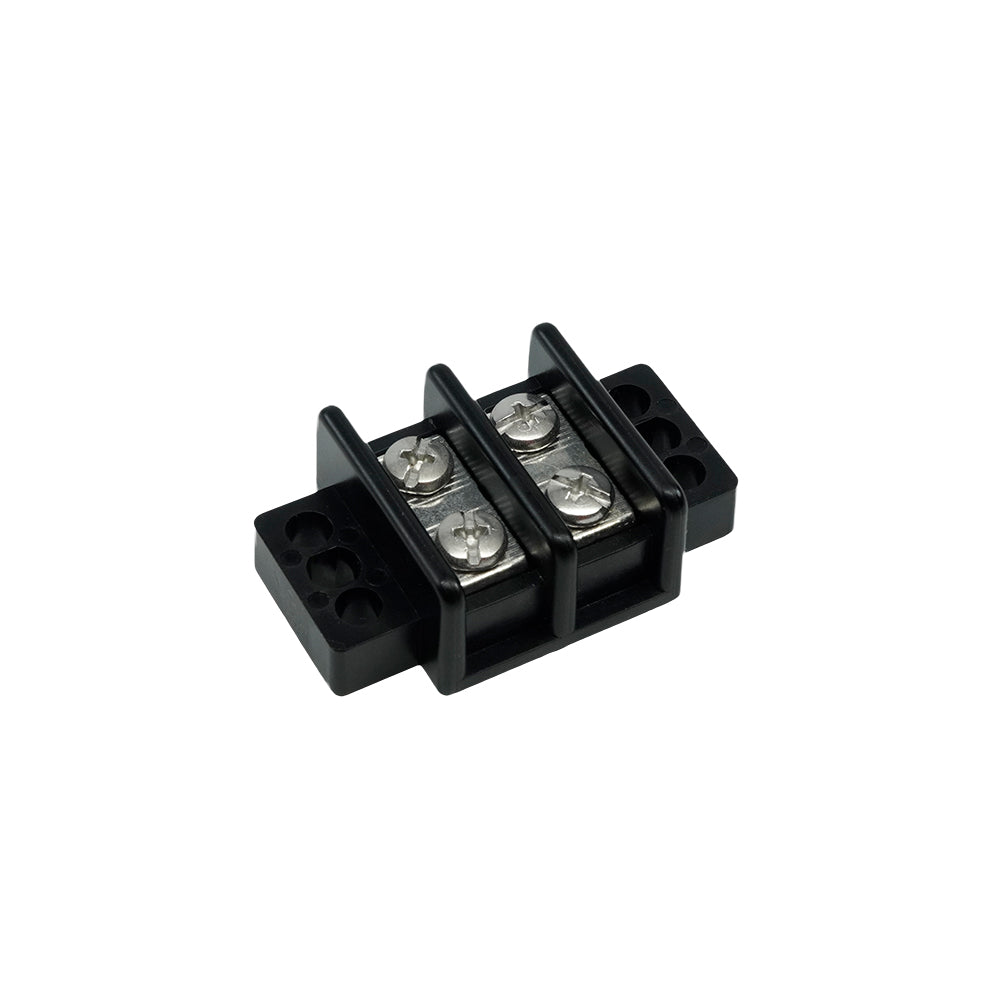

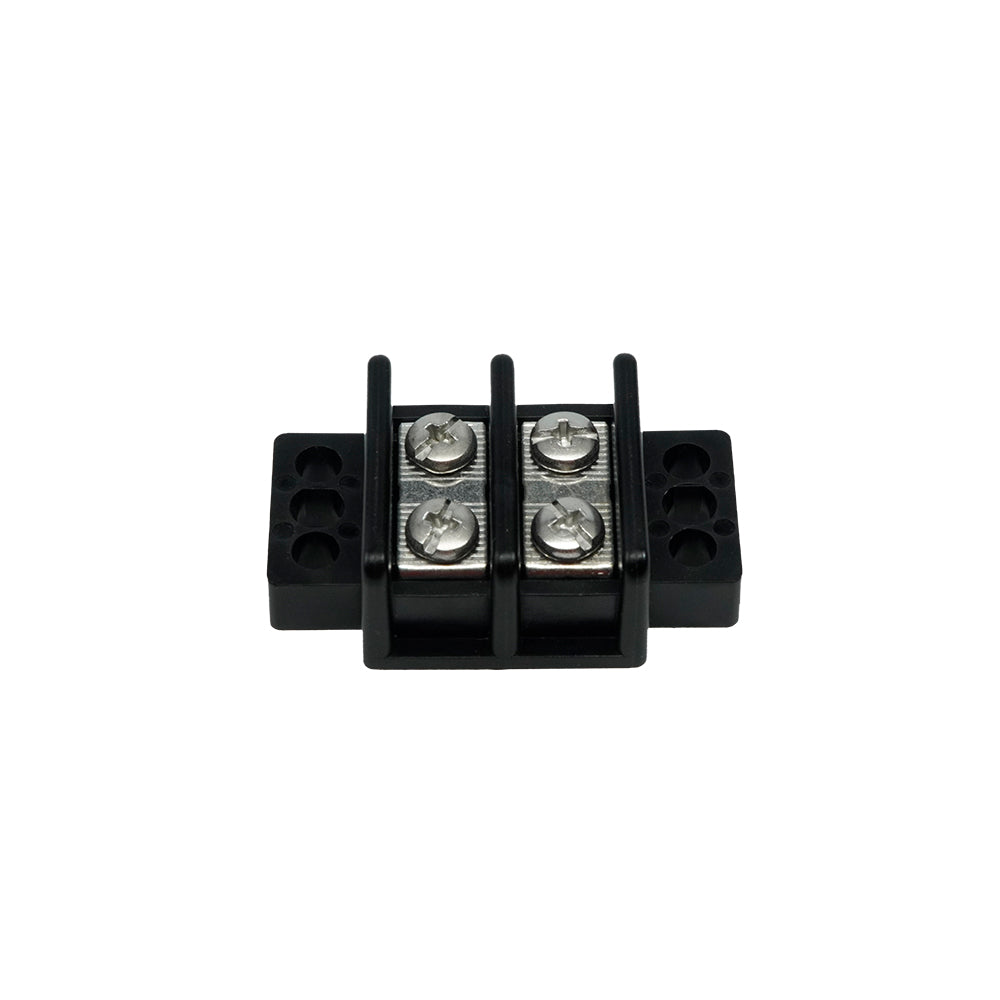

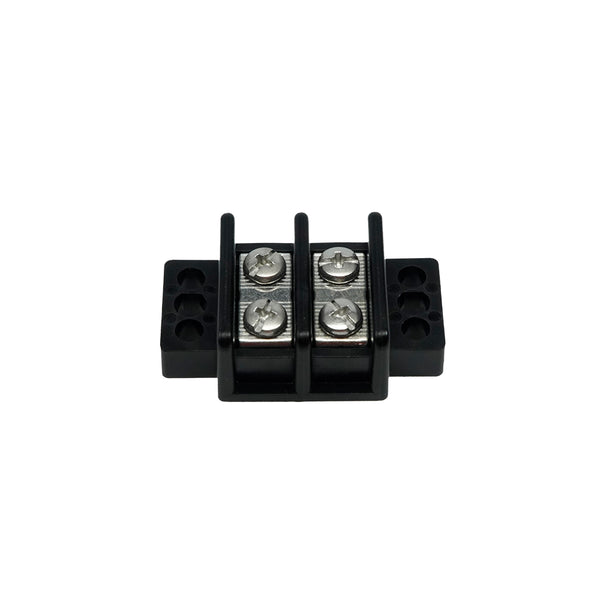

The Egis Wire Terminal Block is designed for robust electrical connections, featuring a 2 circuit configuration that supports up to 30 amps and 240 volts AC/DC. This terminal block is constructed with tin plated copper connectors, ensuring excellent conductivity and durability. The phenolic material provides high temperature insulation, making it suitable for various applications, including marine environments.
Each connection pair consists of one input and one output screw connected to separate copper alloy bus bars, enhancing reliability and performance. The design includes high insulation walls to protect ring terminal splices from shorting to adjacent circuits or ground, ensuring safe operation. Additionally, anti-rotation ribs on the conductor strips minimize the risk of wire terminal rotation, even under strain relief conditions.
With a compact size of 2.1 inches in length and 1.3 inches in width, this terminal block is easy to install in tight spaces. It is engineered to resist dust and water intrusion, providing reliable circuit protection throughout the life of the electrical system installation. The Egis Wire Terminal Block is an essential component for maintaining efficient and safe electrical connections.
Features
- Protects Ring Terminal Splices From Shorting To Adjacent Circuits Or Ground With High Insulation Walls
- Anti-Rotation Ribs On Conductor Strips Reduce The Chance Of Wire Terminal Rotation If Strain Relief Distances Are Long
- High Temperature Insulation Material, Tin Plated Copper Alloy Conductors, And Stainless Steel Hardware
- Dust And Water Intrusion To Ensure Reliable Circuit Protection For The Life Of The Electrical System Installation
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 2230-02
- Number Of Pole: 4 Pole Double Row
- Connection Material: Copper
- Voltage Rating: 240 Volt AC/DC
- Ampere Rating: 30 Amp
- Wire Size: 2.1 Inch Length x 1.3 Inch Width
- Termination Type: Screw-On
- Color: Black
- Material: Phenolic
- Marine: Yes
