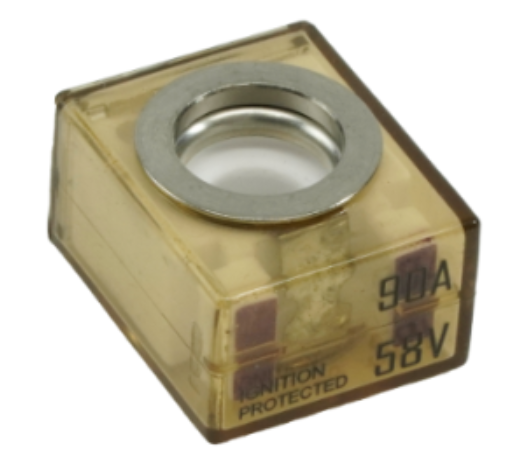

Egis Terminal Fuse 90 Amp (MPN: 3603-090)

Reliable circuit protection for marine and automotive applications.

Egis Mobile Electric offers the Terminal Fuse rated at 90 Amps, designed for robust electrical systems in vehicles. This fuse is engineered to provide reliable circuit protection, ensuring safe operation in demanding environments. With an IP66 protection rating, it is sealed against dust and water intrusion, making it suitable for marine applications and harsh conditions.

The high interrupt current capability of this fuse allows it to safely protect circuits connected to large paralleled battery banks, effectively managing significant available power. It prevents short circuit events and over-current loads, which can lead to overheating of wire insulation and potential damage to electrical systems.

Additionally, the ignition protected design allows for safe installation in closed compartments where explosive gases may be present. The fuse is built to withstand shock and vibration, ensuring durability and longevity in various applications.

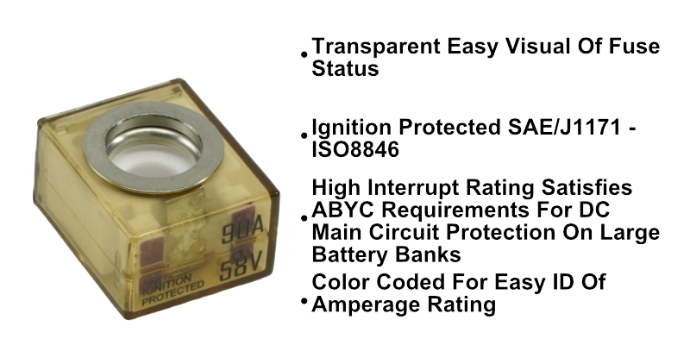

Features

• Sealed Against Dust And Water Intrusion To Ensure Reliable Circuit Protection For The Life Of The Electrical System Installation
• High Interrupt Current: Safely Protects Circuits Connected To Large Paralleled Battery Banks With Significant Available Power
• Protects Electrical Circuits From Short Circuit Events And Over-Current Loads, Preventing Wire Insulation Overheating And Subsequent Destruction
• Ignition Protected Safe For Installation In Closed Compartments With Potential Explosive Gases Harsh Environment Design With Shock And Vibration Resistance

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 3603-090
• Type: Terminal
• Industry Classification: MRBF
• Ampere Rating (A): 90 Amp
• Quantity: Single
• Slow Blow: No
• Marine: Yes

Technical Documents

• 3601-3602-3603-mrbf-fuse-and-fuse-holders-30a-300a.pdf
