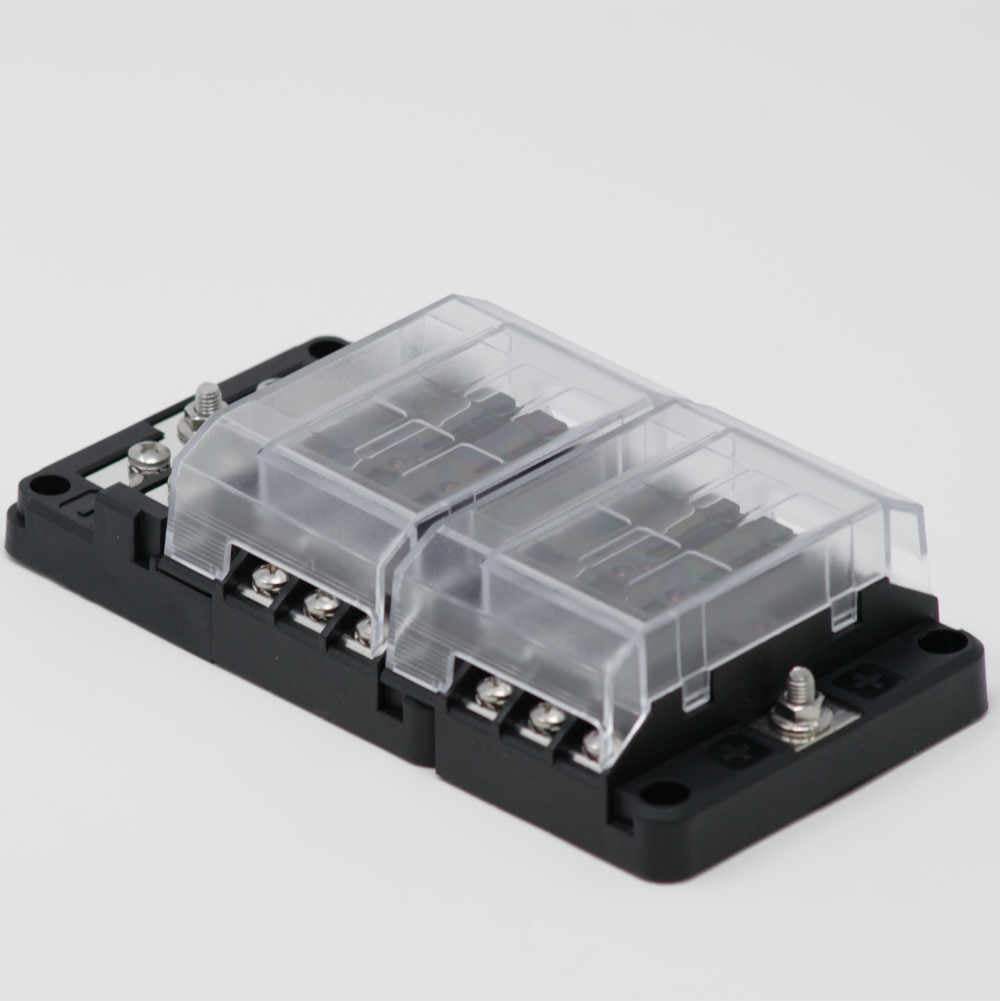

Advanced 12 Circuit Fuse Block with LED Diagnostics and Protective Cover
The Egis Fuse Block is designed for 36 Volt DC systems with a 30 Amp capacity, featuring an in-line configuration that accommodates 12 circuit positions. This fuse block utilizes ATO, ATC, and ATF blade style fuses, ensuring compatibility with a wide range of applications. The inclusion of LED status indicators enhances the ability to diagnose system faults quickly, allowing for efficient troubleshooting and maintenance.
Constructed with high temperature materials and stainless steel self-locking hardware, this fuse block is suitable for mounting in various locations on a vehicle, even in harsh environments. It supports SAE circuit protection standards, providing reliable protection against thermal and short circuit events. The design includes two locations per six circuits for spare or test resistors, which can be useful for reducing siren volumes during evaluation.
The Egis Fuse Block is built with 100 percent non-ferrous corrosion resistant materials, ensuring durability and longevity. All attachment screws and nuts are self-locking, which enhances connection reliability. This product is ideal for marine applications, making it a versatile choice for various electrical systems.
Features
- Designed With High Temperature Materials And Stainless Steel Self-Locking Hardware Allow Mounting Anywhere On Vehicle

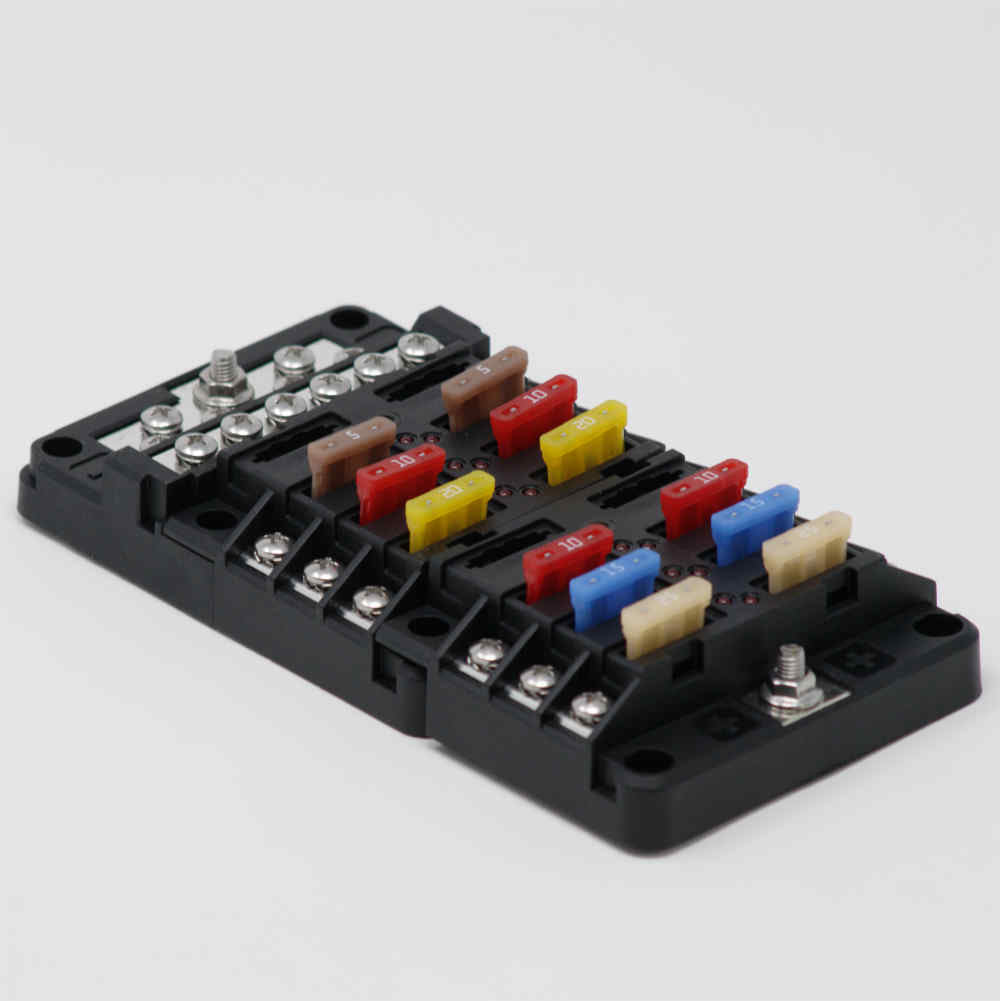

- Protects Branch Circuits By Accepting ATO Style Fuses Ranging From 1 Through 40 Ampere
- Supports SAE Circuit Protection Standards For Thermal/ Short Circuit Events
- Two Locations Per Six Circuits For Spare Or Test Resistors For Reducing Siren Volumes During Evaluation
- 100 Percentage Non Ferrous Corrosion Resistant Materials, All Attachment Screws And Nuts Are Self-Locking

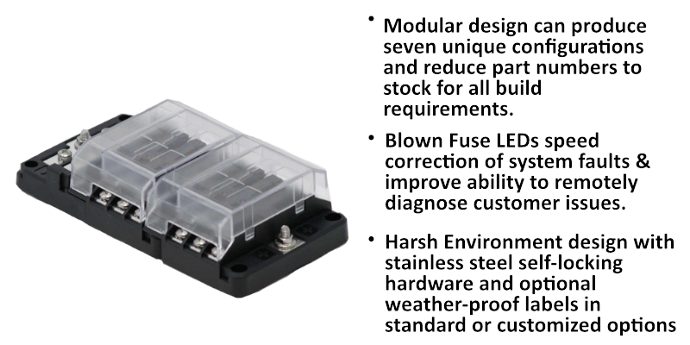

- LED Fuse Diagnostics

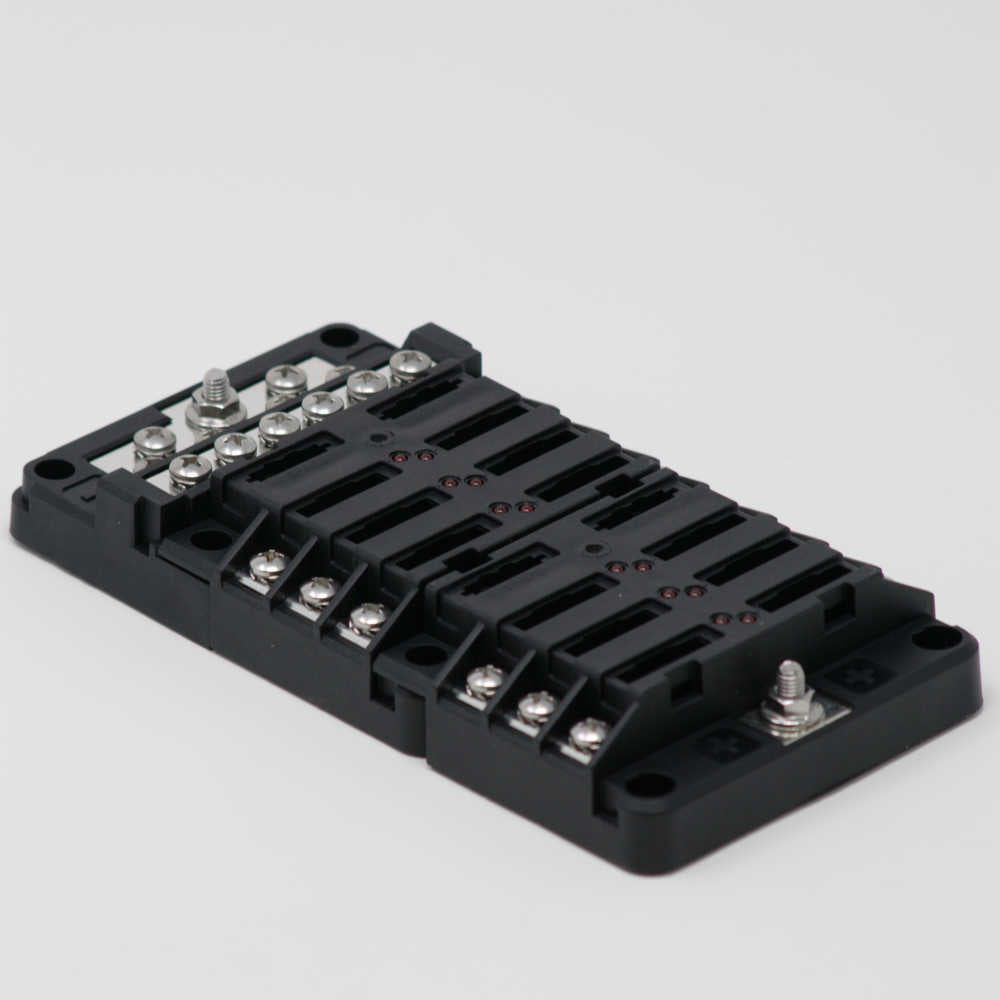

- Screw Type Terminal Ensure Connection Reliability
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 8026
- Power Rating: 36 Volt DC/ 30 Amp
- Type: In-Line
- Circuit Type: 12 Circuit Positions
- Fuse Type: ATO / ATC / ATF Blade Style Fuses
- Status Indicator Type: LED
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: Yes
- Marine: Yes
