Advanced fuse block with LED diagnostics and robust design for reliable circuit protection.

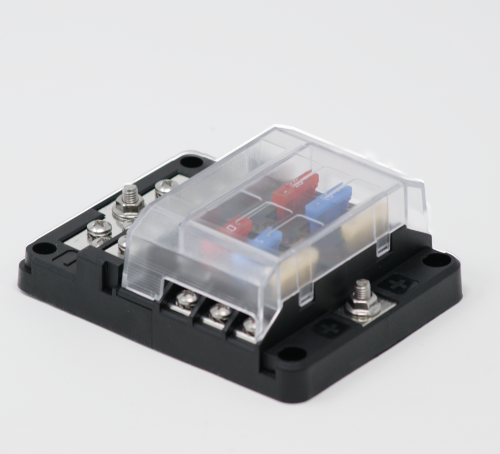

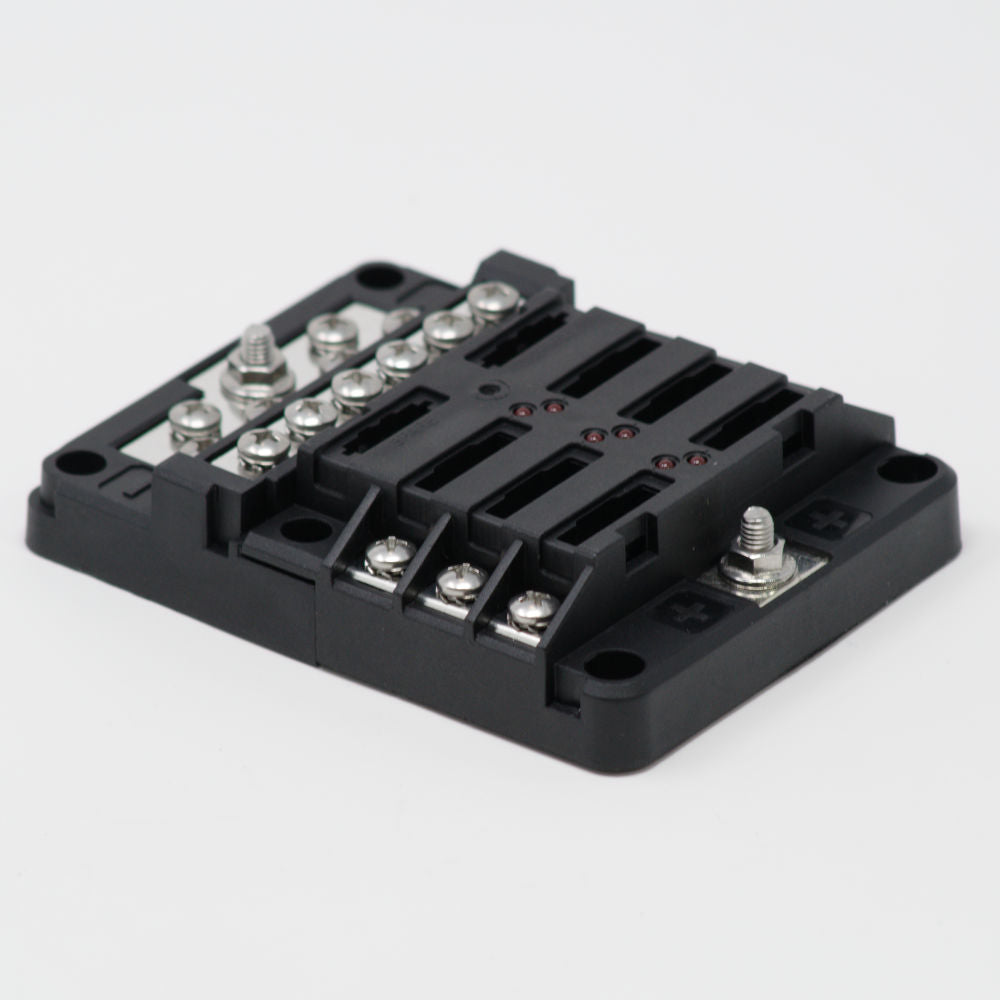

The Egis Fuse Block is engineered for 36 Volt DC systems with a 30 Amp capacity, featuring an in-line design that accommodates six circuit positions. This fuse block utilizes ATO, ATC, and ATF blade style fuses, ensuring compatibility with a wide range of applications. The inclusion of LED status indicators enhances the ability to diagnose system faults quickly, facilitating efficient troubleshooting and maintenance.
Constructed with high temperature materials and stainless steel self-locking hardware, this fuse block is designed for durability and can be mounted in various locations on a vehicle. It supports SAE circuit protection standards, safeguarding branch circuits against thermal and short circuit events. Additionally, the design incorporates two locations per six circuits for spare or test resistors, allowing for adjustments during system evaluations.
The use of 100 percent non-ferrous corrosion resistant materials ensures longevity, while screw type terminals provide reliable connections. This fuse block is suitable for harsh environments and includes a protective cover to enhance its resilience against external factors.
Features
- Designed With High Temperature Materials And Stainless Steel Self-Locking Hardware Allow Mounting Anywhere On Vehicle

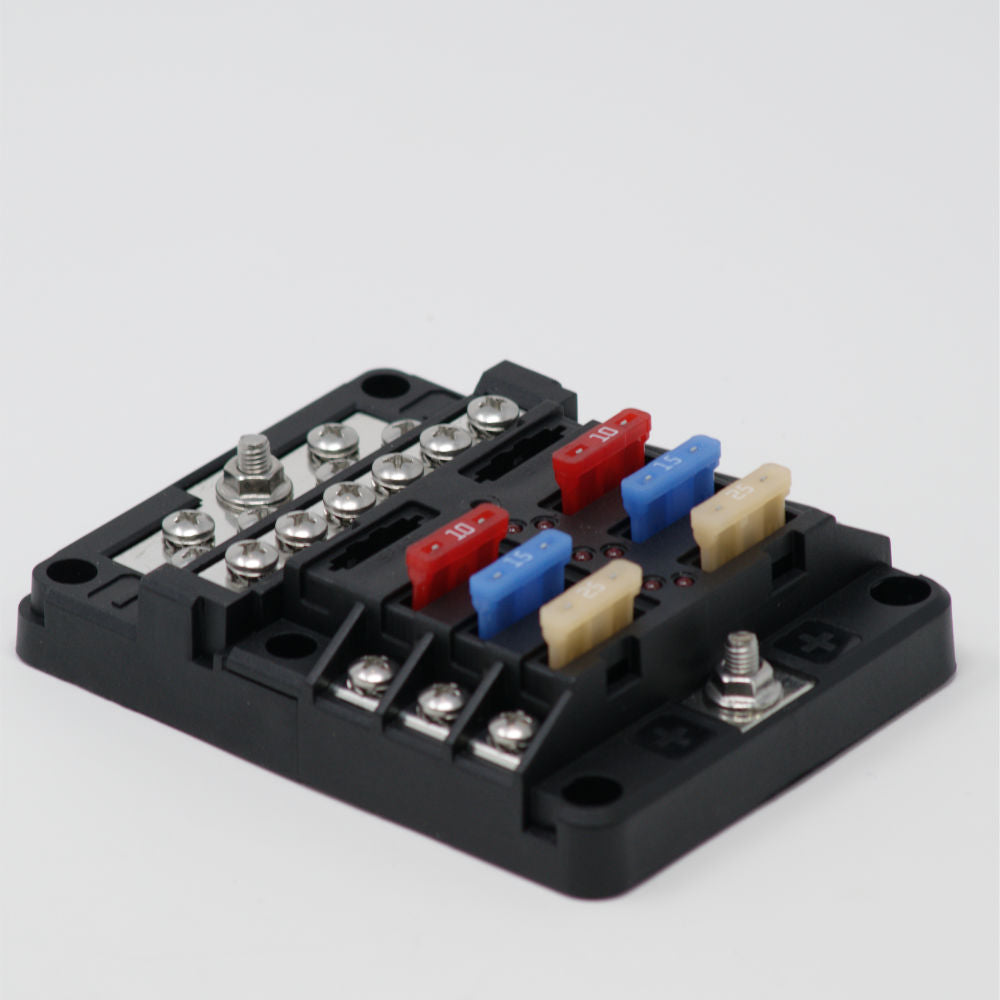

- Protects Branch Circuits By Accepting ATO Style Fuses Ranging From 1 Through 40 Ampere
- Supports SAE Circuit Protection Standards For Thermal/ Short Circuit Events
- Two Locations Per Six Circuits For Spare Or Test Resistors For Reducing Siren Volumes During Evaluation
- 100 Percentage Non Ferrous Corrosion Resistant Materials, All Attachment Screws And Nuts Are Self-Locking

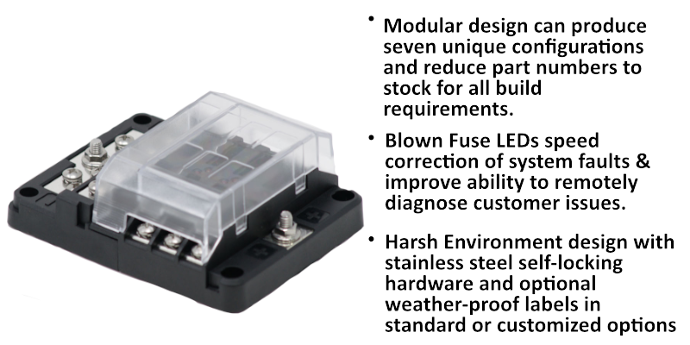

- LED Fuse Diagnostics
- Screw Type Terminal Ensure Connection Reliability
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 8025
- Power Rating: 36 Volt DC/ 30 Amp
- Type: In-Line
- Circuit Type: 6 Circuit Positions
- Fuse Type: ATO / ATC / ATF Blade
- Status Indicator Type: LED
- Cover Style: Protective Cover
- Includes Flashers: No
- Includes Fuses: No
- Includes Horn Relay: No
- Includes Mounting Brackets: No
- Includes Terminals: Yes
- Marine: Yes
