Efficient remote switching for high ampere loads with robust design.

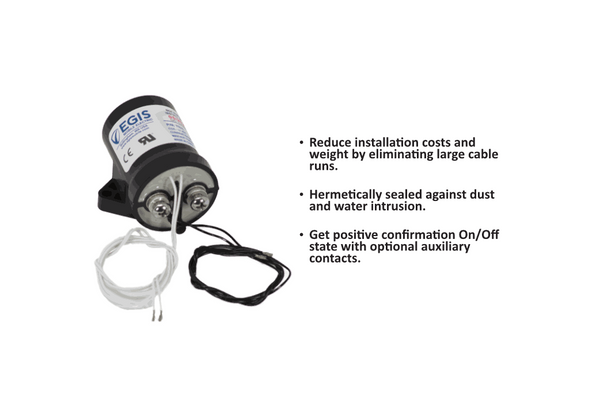

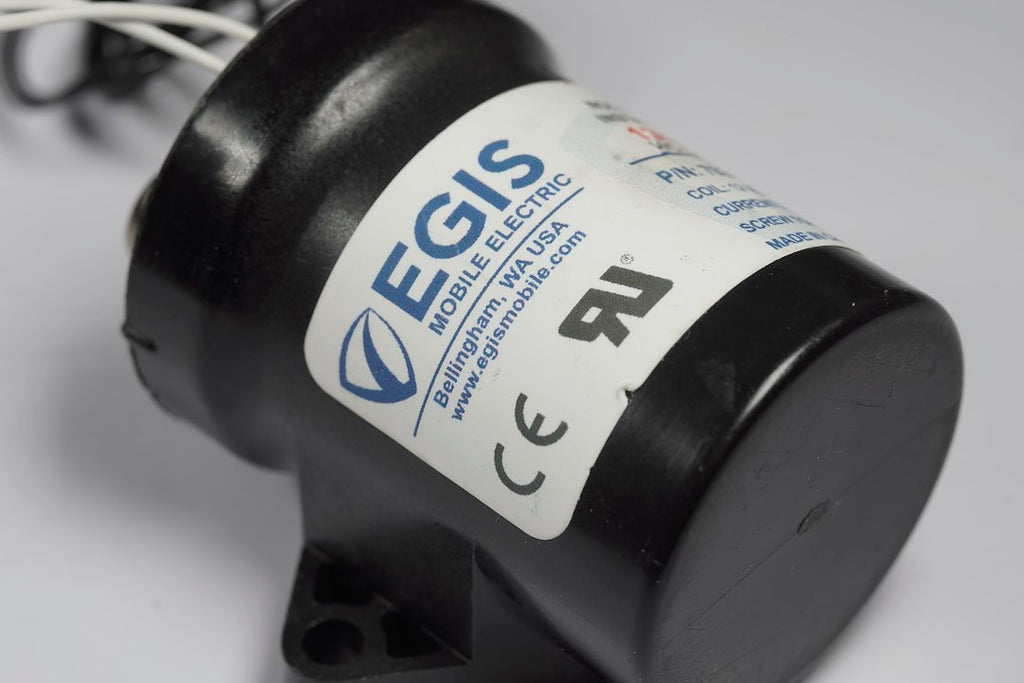

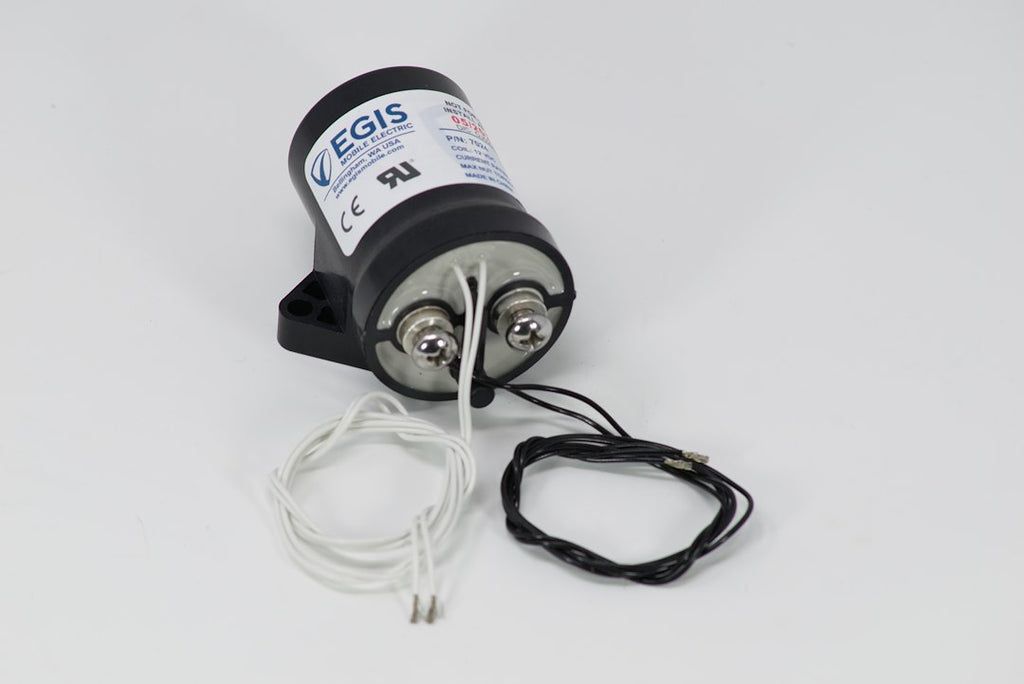

The Egis Electrical Contactor is designed for high-performance remote switching of engine and auxiliary loads, significantly reducing installation costs and weight by eliminating the need for extensive cable runs to manual switches. This contactor features a hermetically sealed enclosure that protects against dust and moisture intrusion, ensuring reliable operation throughout the life of the installation. With a continuous ampere rating of 100 Amps and a voltage rating of 8 to 16 Volts DC, it is suitable for various applications, including those requiring higher switching voltages up to 48 Volts.
Constructed with a nylon housing and copper terminals, the contactor is built to withstand harsh environments, operating effectively in temperatures ranging from -40 to 185 degrees Fahrenheit. The IP67 and IP69K ratings provide assurance of its durability in challenging conditions. Additionally, the contactor includes reinforced mounting holes for secure installation and optional auxiliary contacts for remote status indication, enhancing its functionality and versatility in various setups.
Features
- Sealed Enclosure Hermetically Sealed Against Dust And Moisture Penetration
- 18-8 Stainless Steel Self Locking Hardware Resists Corrosion And Ensure Long Term Connection Reliability With Premium Hardware
- High Interrupt Capability

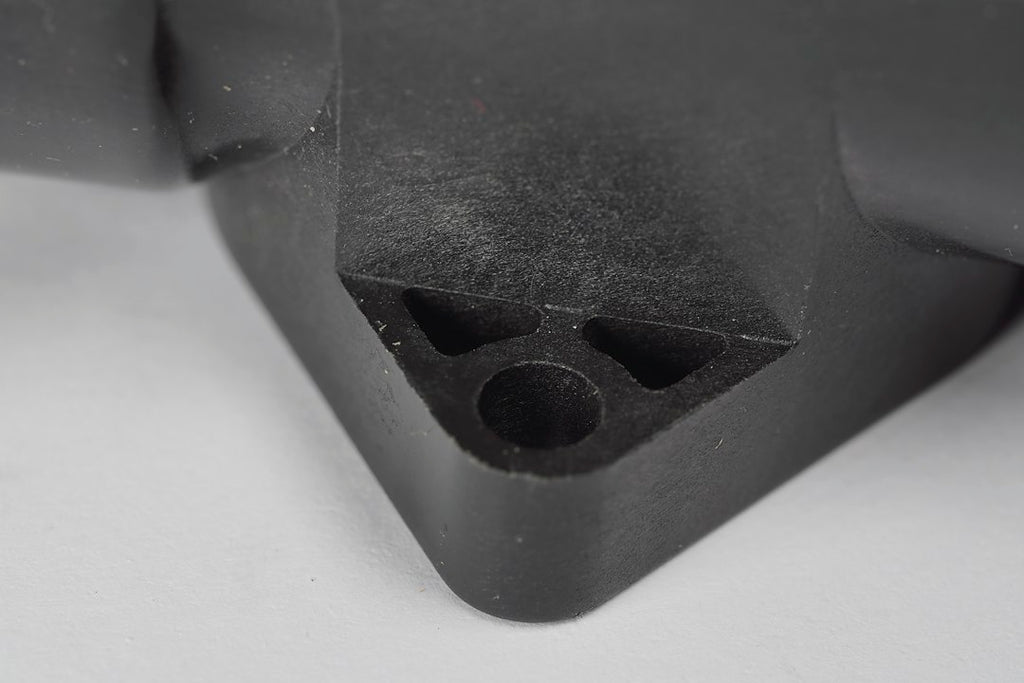

- Easy Mounting Reinforced Mounting Holes Provide Secure Installation And Easy Attachment For The Installer

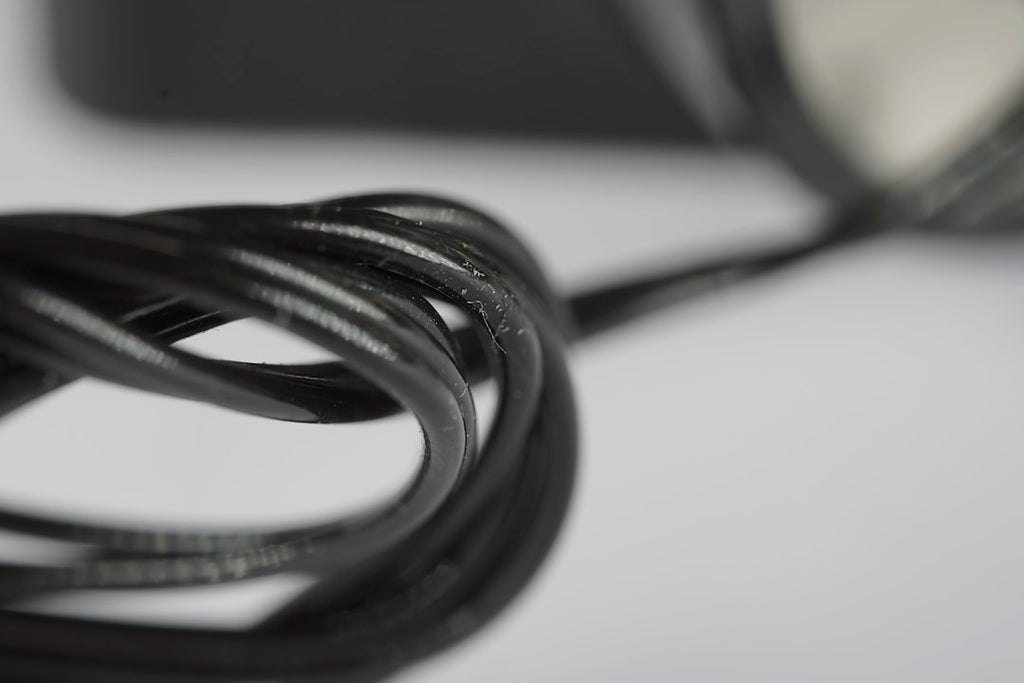

- Remote Status Support Optional Auxiliary Contacts That Support Remote Status Indication
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 7024
- Contact Configuration: Single Pole Single Throw Normally Open(SPST-NO)
- Continuous Ampere Rating (A): 100 Amp
- Voltage Rating: 8 To 16 Volt
- Electrical Endurance Rating (Cycles): 100000 Cycle

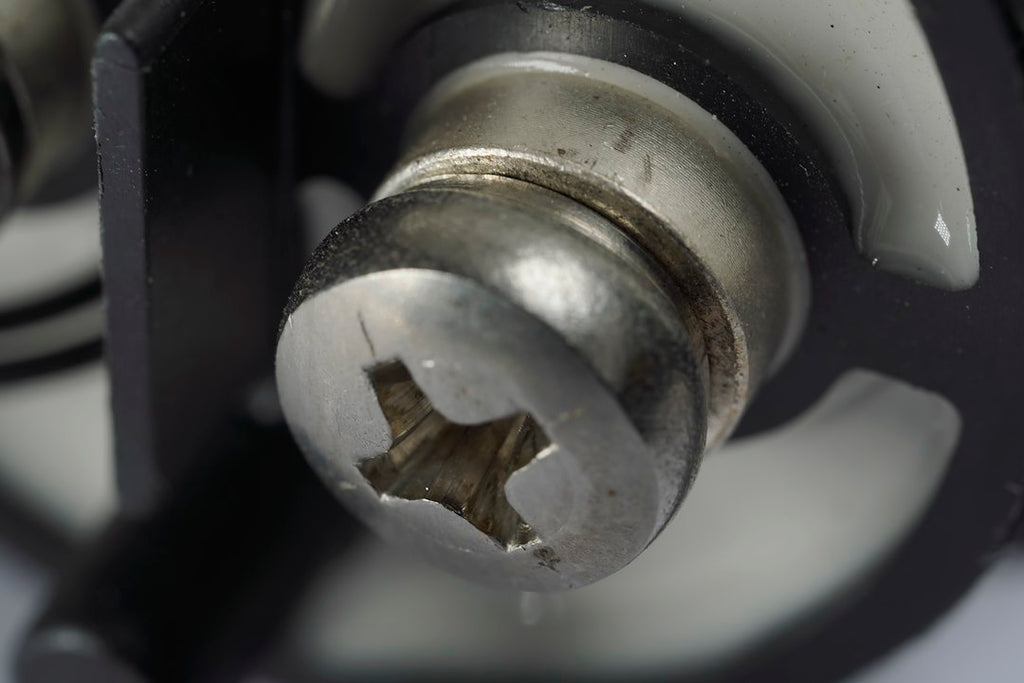

- Terminal Type: M5-0.8 Stud
- Universality: Semi-Universal
- Mounting Type: Side Mount
- Waterproof Rating: IP67 Rated
- Power Rating: 5.5 Watt
- Ampere Rating At 12 Volts: 0.46 Amp
- Certification: ISO-8846/ UL 1500 Standards/ CE Approved
- Ampere Rating At 24 Volts: 0.25 Amp
- Operating Temperature: -40 To 185 Degree Fahrenheit
- Color: Black
- Housing Material: Nylon
- Terminal Material: Copper
- With Auxiliary Contacts: Yes
