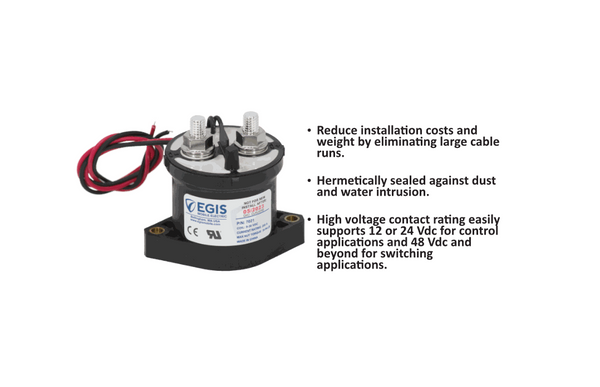

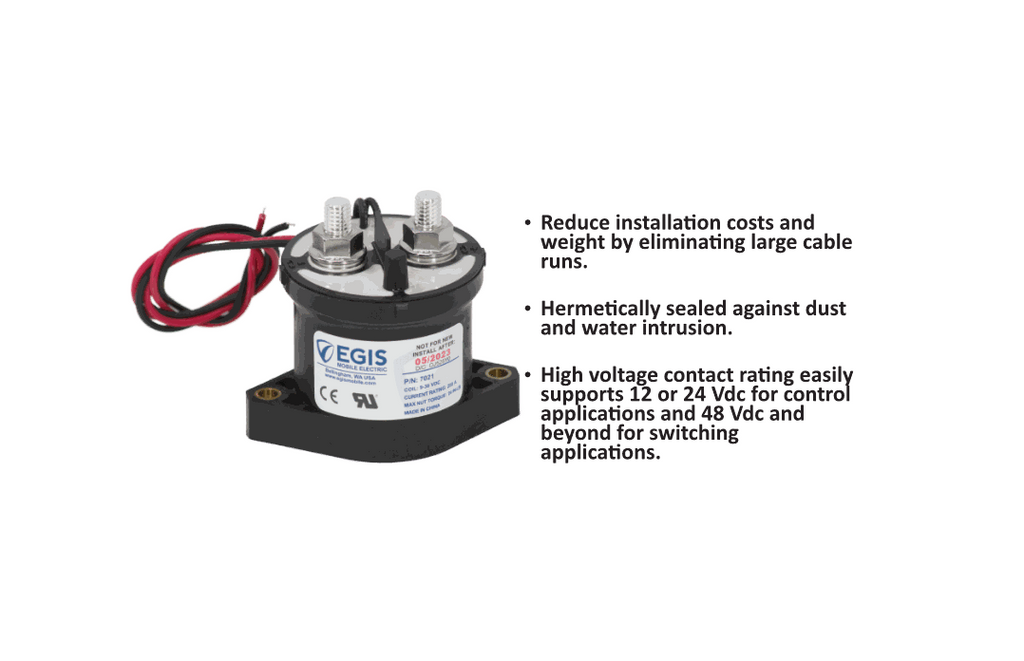

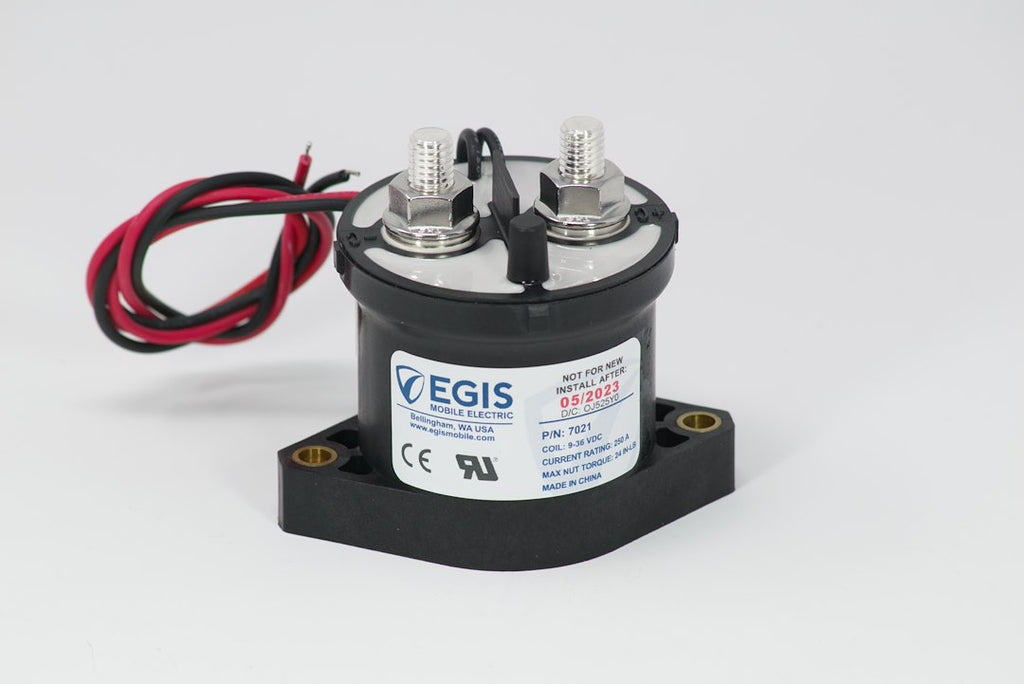

Egis Electrical Contactor (MPN: 7021)

Robust remote switching for high ampere engine loads

The Egis Electrical Contactor is designed for high-performance applications requiring reliable remote switching of engine and auxiliary loads. With a continuous ampere rating of 250 Amps and a voltage range of 9 to 36 Volts DC, this contactor is suitable for various control voltage applications, including 12 and 24 Volt systems. Its hermetically sealed enclosure ensures protection against dust and moisture, making it ideal for harsh environments with an IP67/IP69K rating.

Constructed with a nylon housing and copper terminals, the contactor is built to withstand extreme temperatures ranging from -40 to 185 degrees Celsius. The use of 18-8 stainless steel self-locking hardware enhances connection reliability and resists corrosion, ensuring long-term performance. The reinforced mounting holes facilitate easy installation, allowing for secure attachment and reducing installation costs by eliminating the need for extensive cable runs to manual switches.

This contactor is CE certified and meets ISO-8846 and UL 1500 standards, ensuring compliance with industry regulations. With a high interrupt capability and an electrical endurance rating of 100,000 cycles, the Egis Electrical Contactor is engineered for durability and efficiency in demanding applications.

Features

• Sealed Enclosure Hermetically Sealed Against Dust And Moisture Penetration

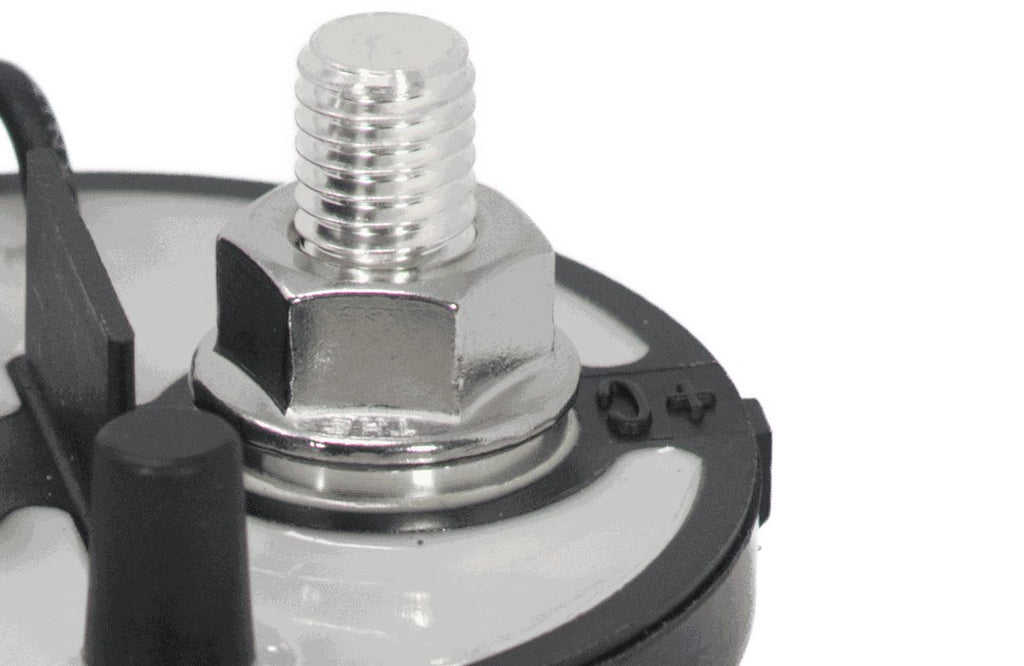

• 18-8 Stainless Steel Self Locking Hardware Resists Corrosion And Ensure Long Term Connection Reliability With Premium Hardware
• High Interrupt Capability

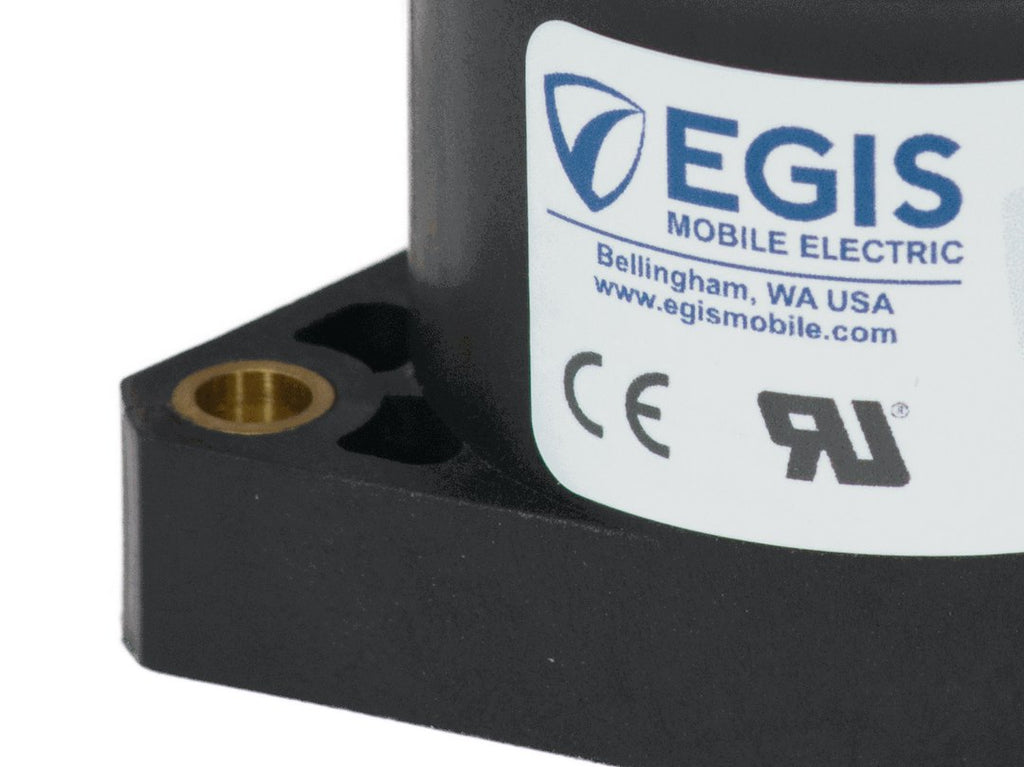

• Easy Mounting Reinforced Mounting Holes Provide Secure Installation And Easy Attachment For The Installer

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 7021
• Contact Configuration: Single Pole Single Throw Normally Open(SPST-NO)
• Continuous Ampere Rating (A): 250 Amp
• Voltage Rating: 9 To 36 Volt
• Electrical Endurance Rating (Cycles): 100000 Cycle
• Terminal Type: M8-1.25 Stud
• Universality: Semi-Universal
• Waterproof Rating: IP67 Rated
• Power Rating: 1.7 Watt
• Ampere Rating At 12 Volts: 0.13 Amp
• Certification: ISO-8846/ UL 1500 Standards/ CE Approved
• Ampere Rating At 24 Volts: 0.07 Amp
• Operating Temperature: -40 To 185 Degree Fahrenheit
• Color: Black
• Housing Material: Nylon
• Terminal Material: Copper
• With Auxiliary Contacts: No

Technical Documents

• 7021-7022_Hermetically_Sealed_Contactors.pdf
