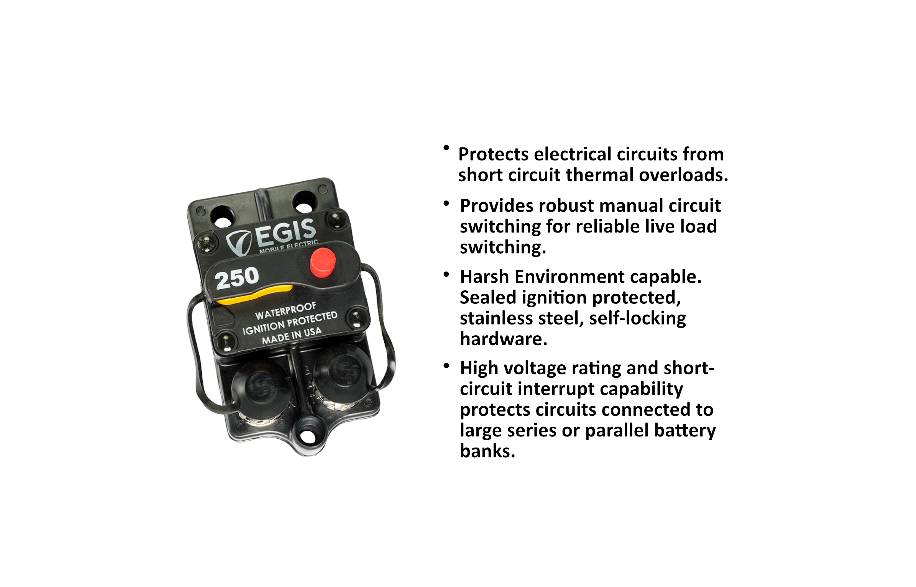

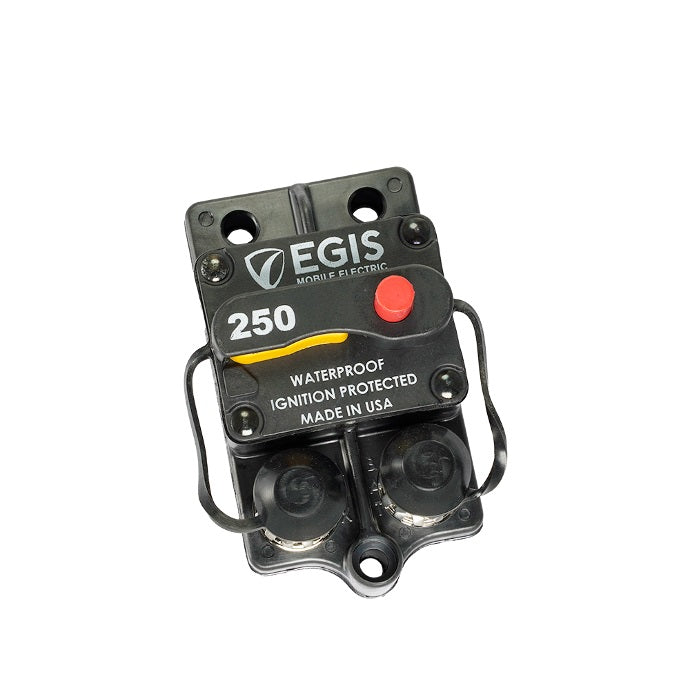

Egis Circuit Breaker Surface Mount (MPN: 4709-250)

Reliable circuit protection with advanced features for harsh environments.

The Egis Circuit Breaker Surface Mount is designed for robust performance in demanding applications. With a 250 Amp rating and a voltage capacity of 30 Volt DC, this circuit breaker is suitable for various electrical systems, including marine environments. Its manual and switchable reset type ensures easy operation and maintenance, while the surface mount design allows for straightforward installation.

Constructed with weatherproof housing, this circuit breaker is sealed against dust and water intrusion, providing reliable circuit protection throughout the life of the installation. The high electrical endurance of 2,000 cycles at full current ensures longevity and dependability, making it an essential component for systems with large paralleled battery banks.

The integrated terminal insulators prevent inadvertent shorts, enhancing safety during operation. Additionally, the stainless steel hardware and serrated flange nuts are corrosion and vibration resistant, making this circuit breaker suitable for harsh environmental conditions. Made in the USA, the Egis Circuit Breaker Surface Mount combines quality and functionality for effective circuit management.

Features

• Sealed Against Dust And Water Intrusion To Ensure Reliable Circuit Protection For The Life Of The Electrical System Installation
• High Voltage (48 Volt DC) Rating Easily Supports 12 And 24 Volt DC Applications While Offering Advanced Protection For 36 And 48 Volt DC
• High Electrical/ Manual Switching Endurance Delivers 2,000 Cycles At Full Current
• High Interrupt Current: Safely Protects Circuits Connected To Large Paralleled Battery Banks With Significant Available Power

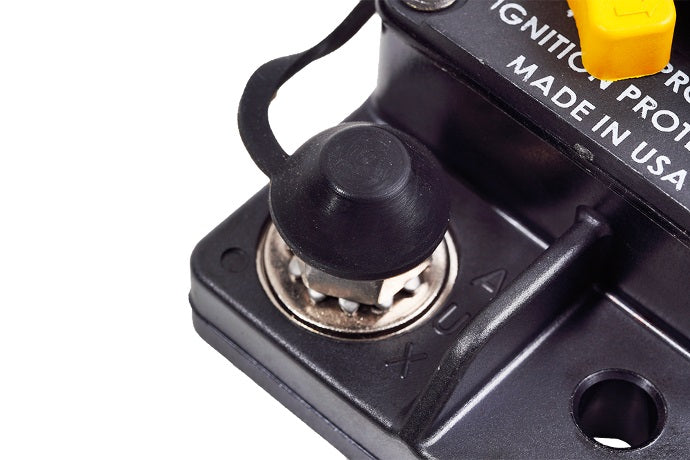

• Integrated Terminal Insulators Protects Against Inadvertent Shorts From Positive Terminals To Adjacent Grounded Surfaces

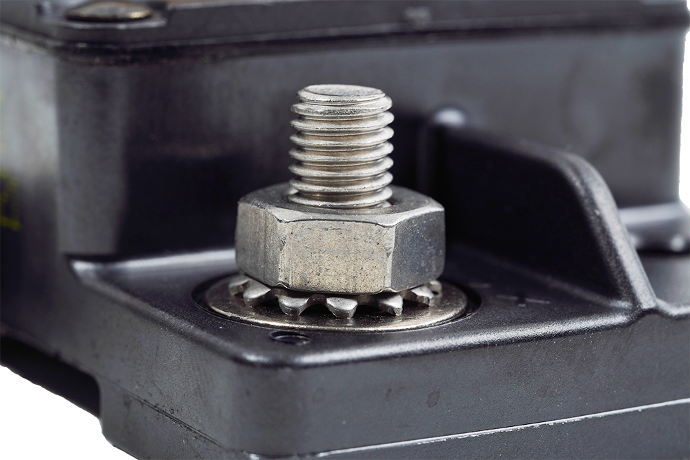

• Stainless Steel Hardware/ Serrated Flange Nuts Corrosion And Vibration Resistant For Harsh Environment Applications
• Allows For Circuit Isolation And Maintenance Of Load Circuits
• Made In USA

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 4709-250
• Ampere Rating: 250 Amp
• Voltage Rating: 30 Volt DC
• Reset Type: Manual And Switchable
• Terminal Connection: 3/8 Inch-16 Stud
• Type: Surface Mount
• Quantity: Single
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Technical Documents

• 4709_Series_Surface_Mount_Circuit_Breakers_175-250A_Revised.pdf
