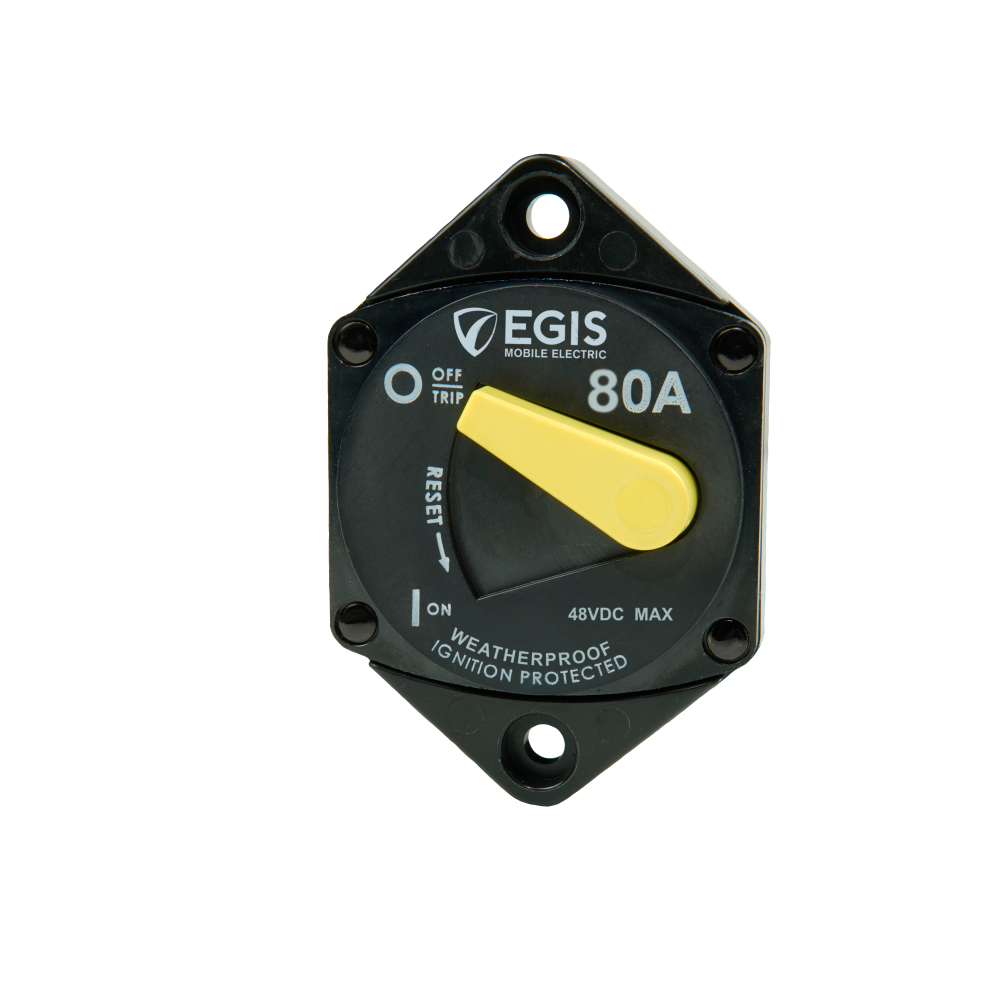

Reliable 80 AMP Circuit Protection for Marine and DC Applications
The Egis Circuit Breaker 87 Series is designed for robust circuit protection in various electrical systems. With an 80 AMP rating and a voltage capacity of 48 Volt DC, this panel mount circuit breaker is suitable for both 12 and 24 Volt DC applications, providing advanced protection for higher voltage systems as well. Its manual and switchable reset feature allows for easy operation and maintenance, ensuring reliable performance in demanding environments.
Constructed with a weatherproof housing and IP66 protection rating, the Egis Circuit Breaker is sealed against dust and water intrusion, making it ideal for marine applications and harsh conditions. The stainless steel hardware and serrated flange nuts enhance corrosion and vibration resistance, ensuring longevity and durability. The circular design facilitates easy installation in panel cutouts, streamlining the setup process.
This circuit breaker is engineered for high electrical endurance, capable of delivering 2,000 cycles at full current, which is essential for systems connected to large paralleled battery banks. Compliance with CE, RoHS, SAE J553, and ABYC-E-11 standards further underscores its reliability and safety in electrical installations. Made in the USA, the Egis Circuit Breaker 87 Series is a dependable choice for maintaining circuit isolation and protecting load circuits.
Features
- IP 66 Sealed Against Dust And Water Intrusion To Ensure Reliable Circuit Protection For The Life Of The Electrical System Installation
- High Voltage (48 Volt DC) Rating Easily Supports 12 And 24 Volt DC Applications While Offering Advanced Protection For 36 And 48 Volt DC
- High Electrical/ Manual Switching Endurance Delivers 2,000 Cycles At Full Current
- High Interrupt Current: Safely Protects Circuits Connected To Large Paralleled Battery Banks With Significant Available Power

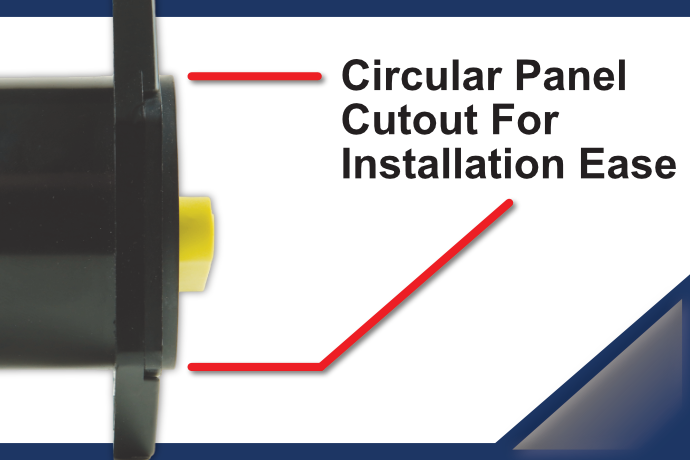

- Circular Design Compatible With Circular Cutout Enables Easy In Panel Installation

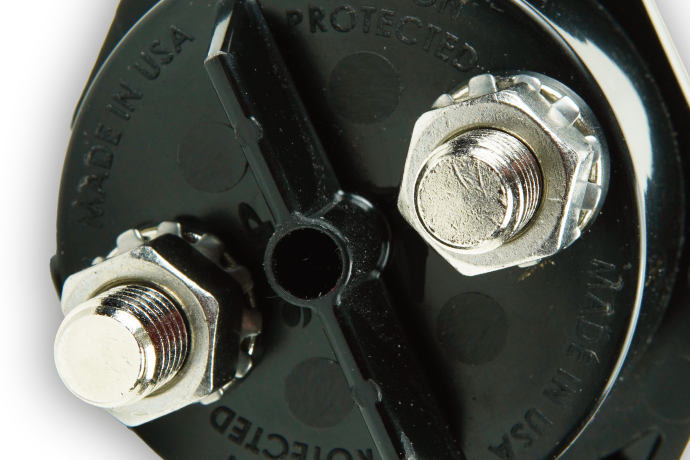

- Stainless Steel Hardware/ Serrated Flange Nuts Corrosion And Vibration Resistant For Harsh Environment Applications
- Allows For Circuit Isolation And Maintenance Of Load Circuits
- Made In USA
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 4707-080
- Ampere Rating: 80 Amp
- Voltage Rating: 48 Volt DC

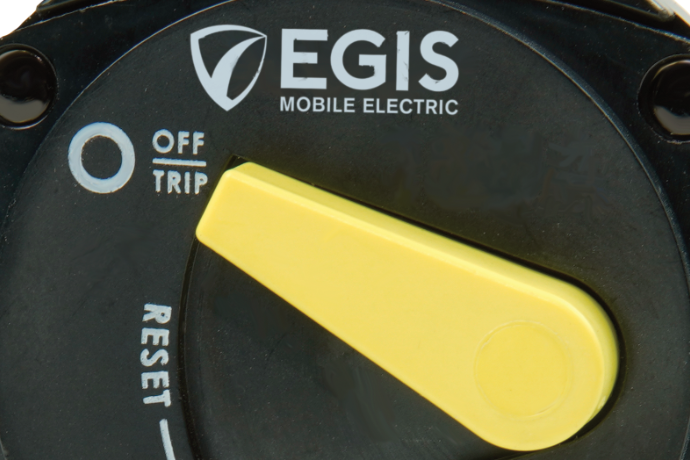

- Reset Type: Manual And Switchable
- Terminal Connection: 5/16 Inch-18 Stud
- Type: Panel Mount
- Quantity: Single
- Estimated Install Time (Hours): 0.25
- Marine: Yes
