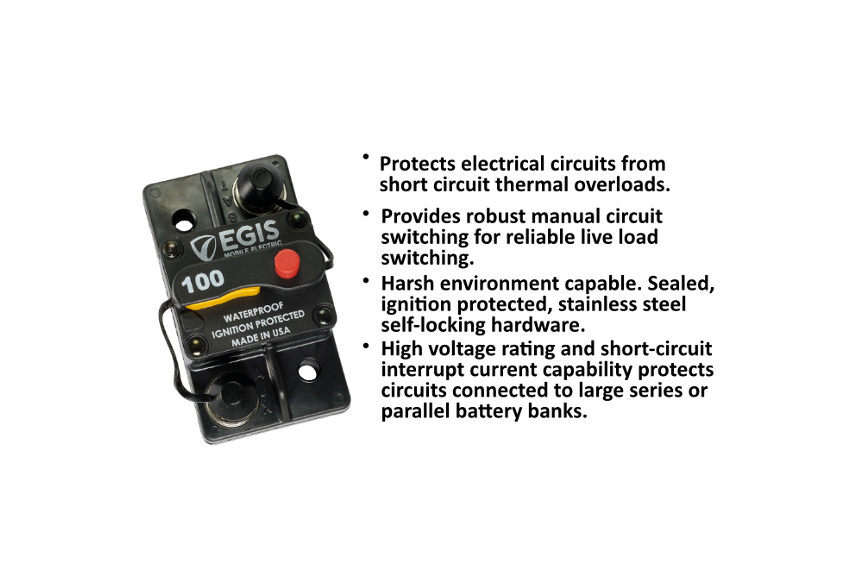

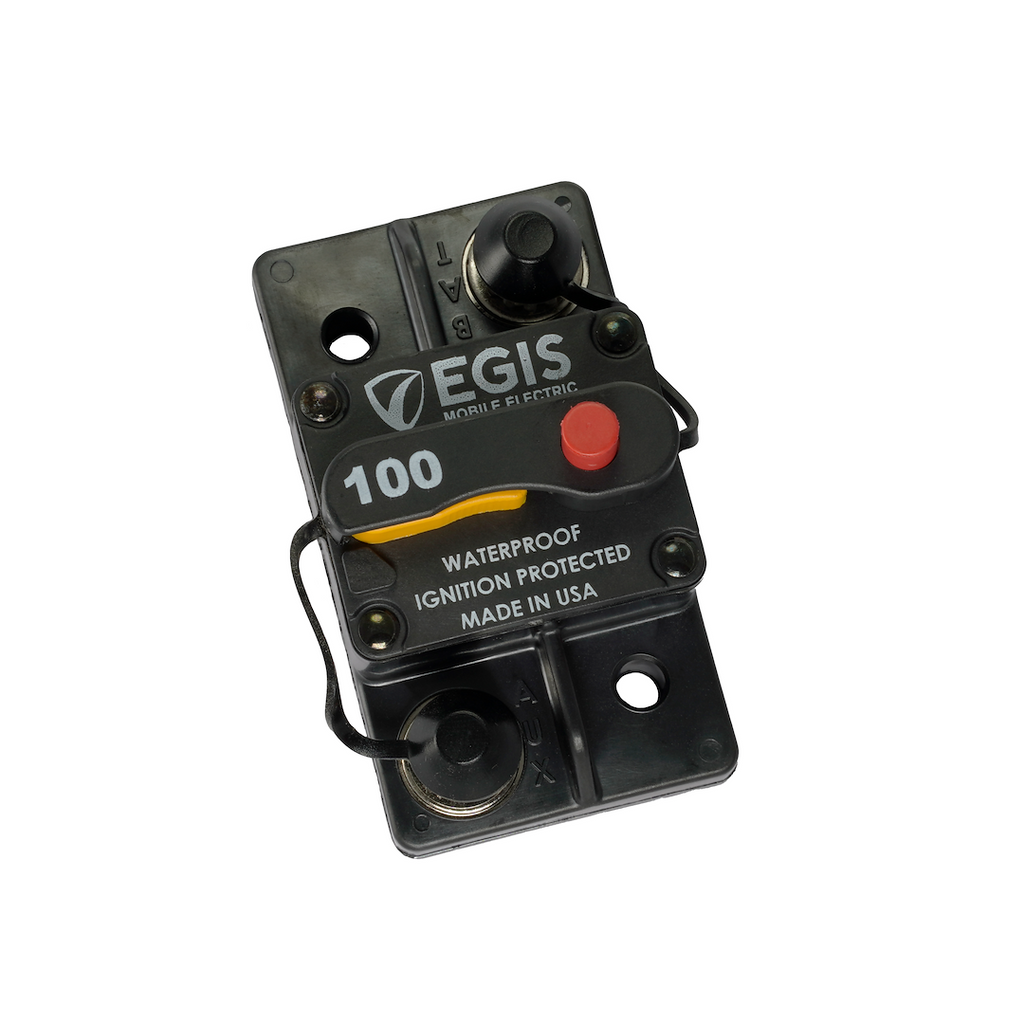

Egis Circuit Breaker 100 AMP (MPN: 4703-100)

Reliable circuit protection with advanced features for demanding applications.

The Egis Circuit Breaker is designed for robust performance in various electrical systems, featuring a 100 AMP rating and a 48 Volt DC capacity. This surface mount breaker is engineered to withstand harsh environments, with a weatherproof housing that is sealed against dust and water intrusion, ensuring reliable circuit protection throughout its lifespan. The high visibility On/Off lever allows for easy operation, while the stainless steel hardware and serrated flange nuts provide corrosion and vibration resistance, making it suitable for marine applications.

This circuit breaker supports not only 48 Volt DC applications but also effectively manages 12 and 24 Volt DC systems, offering advanced protection for larger setups with significant power availability. With a manual and switchable reset type, it allows for circuit isolation and maintenance of load circuits, enhancing the safety and reliability of your electrical installations. The integrated terminal insulators further protect against inadvertent shorts, ensuring safe operation in demanding conditions.

With a high electrical and manual switching endurance of 2,000 cycles at full current, the Egis Circuit Breaker is built to last. Its design includes features that cater to the needs of users requiring dependable circuit protection in various applications, from automotive to marine environments. Made in the USA, this circuit breaker exemplifies quality and durability.

Features

• Sealed Against Dust And Water Intrusion To Ensure Reliable Circuit Protection For The Life Of The Electrical System Installation
• High Voltage (48 Volt DC) Rating Easily Supports 12 And 24 Volt DC Applications While Offering Advanced Protection For 36 And 48 Volt DC
• High Electrical/ Manual Switching Endurance Delivers 2,000 Cycles At Full Current
• High Interrupt Current: Safely Protects Circuits Connected To Large Paralleled Battery Banks With Significant Available Power
• Integrated Terminal Insulators Protects Against Inadvertent Shorts From Positive Terminals To Adjacent Grounded Surfaces
• Stainless Steel Hardware/ Serrated Flange Nuts Corrosion And Vibration Resistant For Harsh Environment Applications
• Allows For Circuit Isolation And Maintenance Of Load Circuits
• Made In USA

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 4703-100
• Ampere Rating: 100 Amp
• Voltage Rating: 48 Volt DC
• Reset Type: Manual And Switchable
• Terminal Connection: 1/4 Inch-28 Stud
• Type: Surface Mount
• Quantity: Single
• Estimated Install Time (Hours): 0.25
• Marine: Yes

Technical Documents

• 4703-4706_Series_Surface_Mount_Circuit_Breakers_50-150A_Revised.pdf
