Efficiently manage dual battery banks with advanced sensing technology.

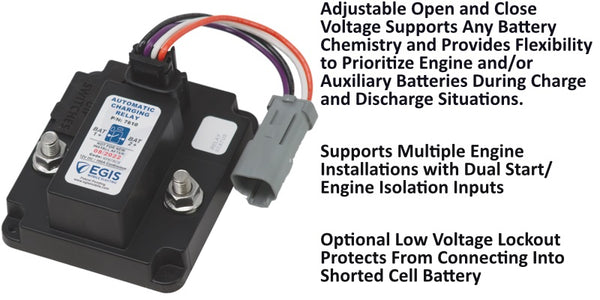

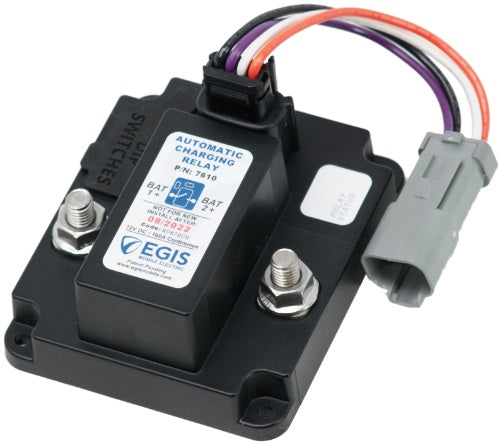

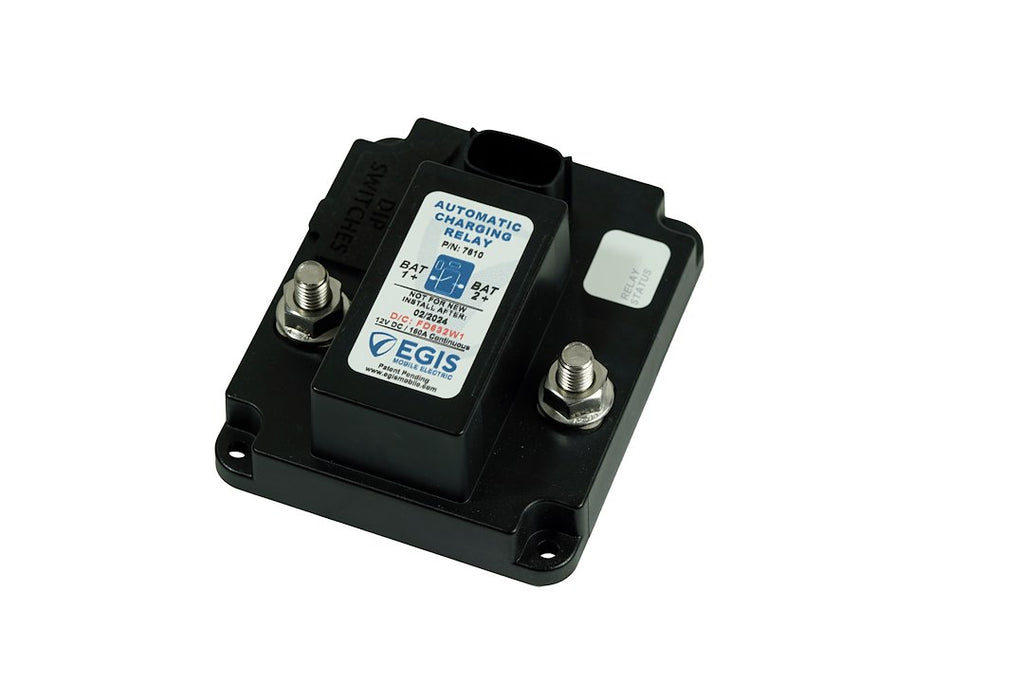

The Egis Battery Voltage Sensing Relay is designed to facilitate the charging of two independent battery banks from a single charging source. Operating within a voltage range of 8 to 18 volts DC, this relay supports various battery chemistry combinations and is suitable for multiple engine installations. Its robust construction features stainless steel self-locking hardware and high-temperature materials, allowing for versatile mounting options in diverse environments.
This relay includes a remote switch for start assist, ensuring maximum cranking amps are available by allowing manual connection of batteries. The ultra-low power draw and integrated sealed plug enhance reliability by eliminating corrosion risks. Additionally, the relay offers a low amp output that can be utilized to report device status remotely or to drive a secondary relay for charging a battery bank without a direct charge source.
With dimensions of 3.36 inches in length, 3.98 inches in width, and 2.12 inches in height, the Egis Battery Voltage Sensing Relay is compact yet powerful, rated for 160 amps. Its dual start and engine isolation capabilities make it a versatile solution for managing battery systems effectively.
Features
- Ultra-Low Power Draw

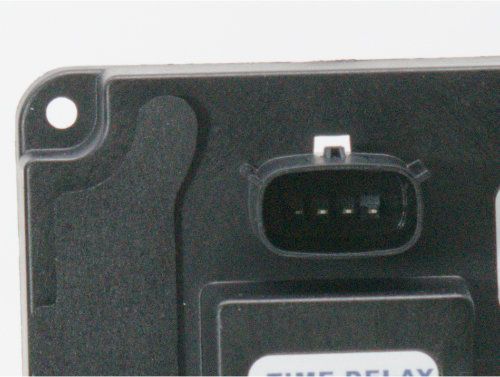

- Integrated Sealed Plug Eliminates Corrosion
- Start Assist Input Option To Ensure Maximum Cranking Amps Available By Allowing Manually Connecting Of Batteries Via Remote Switch

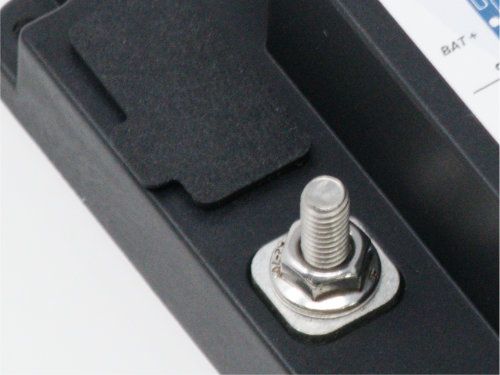

- Bullet-Proof Construction Sealed Unit, Stainless Steel Hardware, High Temperature Materials Allow Mounting Anywhere
- Additional Low Amp Output Can Be Used To Report Device Status Remotely, Or Drive A Secondary Relay For Charge To A Battery Bank Without A Charge Source
- Dual Start/ Engine Isolation
Specifications
- Manufacturer: Egis
- Manufacturer Part Number: 7610
- Function: Allows Charging Of Two Independent Battery Banks From A Single Charging Source
- Operating Voltage: 8 To 18 Volt DC
- Ampere Rating: 160 Amp
- Length (IN): 3.36 Inch
- Width (IN): 3.98 Inch
- Height (IN): 2.12 Inch
- Mounting Type: Top Side Mount
