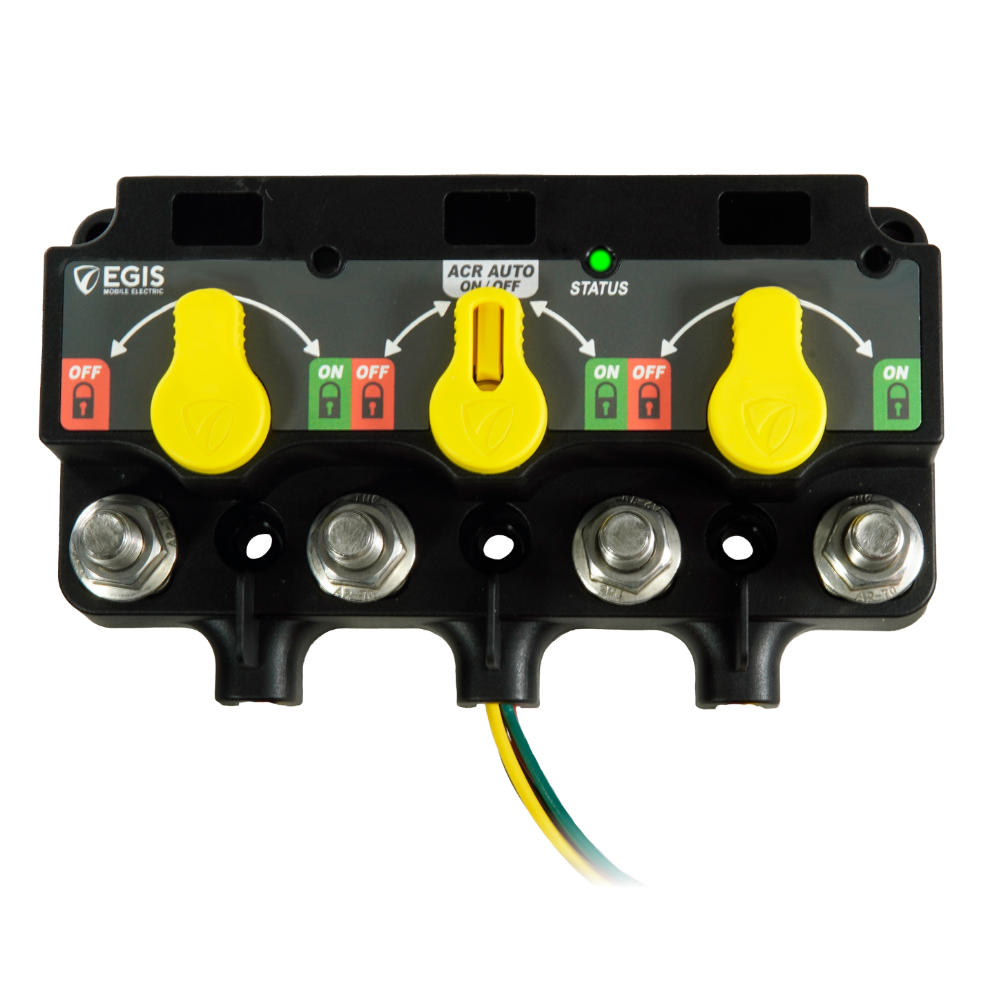

Egis Battery Disconnect Switch (MPN: 8830-1939)

High-performance rotary switch for marine applications with advanced features.

The Egis Battery Disconnect Switch is engineered for modern lithium battery-based electrical systems, accommodating higher on/off charge voltage settings compared to traditional battery chemistries. This rotary switch operates within a voltage range of 8 to 36 volts DC and supports a continuous capability of 500 amps, making it suitable for demanding marine applications. Its compact design, measuring 3.74 inches in length, 6.45 inches in width, and 2.03 inches in height, allows for versatile installation options while maintaining a robust performance profile.

Equipped with intuitive front-facing manual override knobs, the switch allows users to lock relays in either the ON or OFF position for servicing. The integrated LED indicators provide clear visual status, with a remote LED replicating the local device status for enhanced monitoring. The switch features programmable dip switches for flexible functionality, enabling users to control each relay individually.

Constructed with high-quality stainless steel components, the Egis Battery Disconnect Switch is designed to withstand harsh marine environments, ensuring durability and reliability. The Gortex vent regulates internal pressure, preventing moisture entry and extending the product's lifespan. This switch not only protects terminal studs and cable edges from shorts but also simplifies circuit identification with included weatherproof labels.

Features

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries
• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED
• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground
• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8830-1939
• Type: Rotary With Fixed Lever
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes
