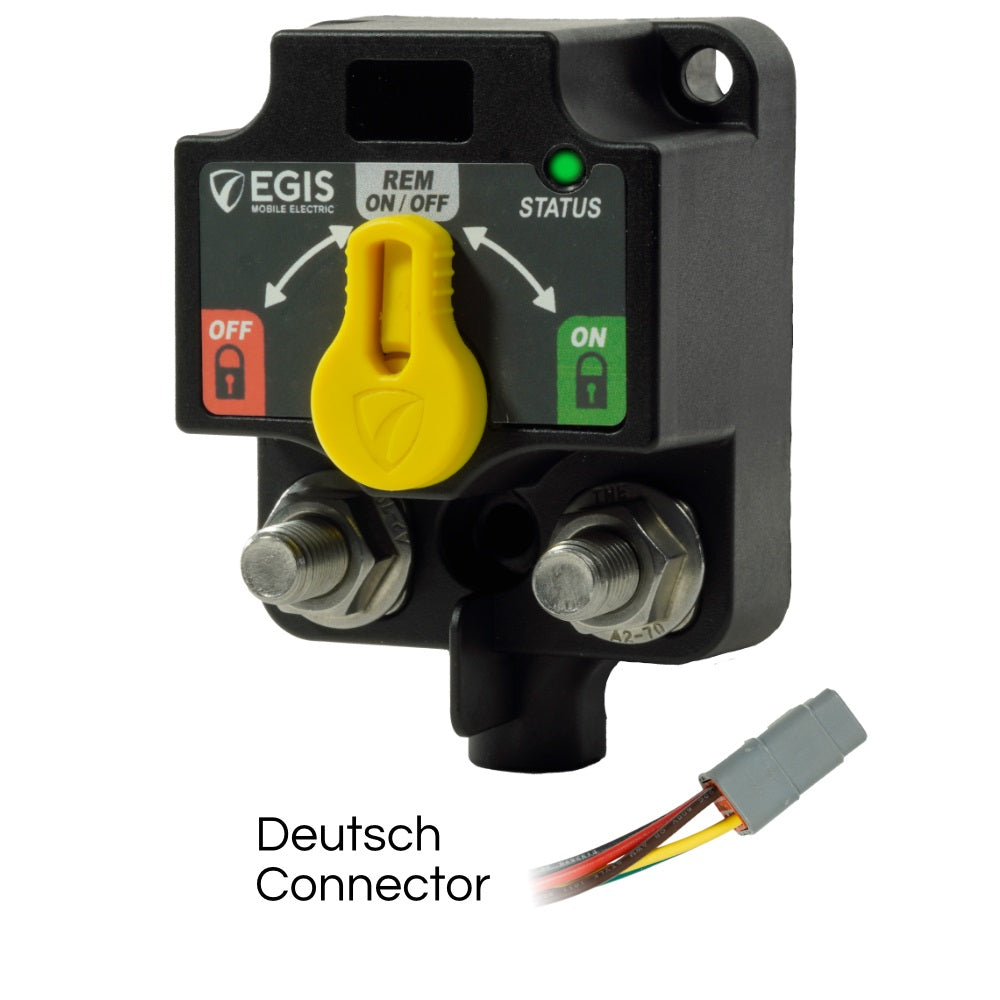

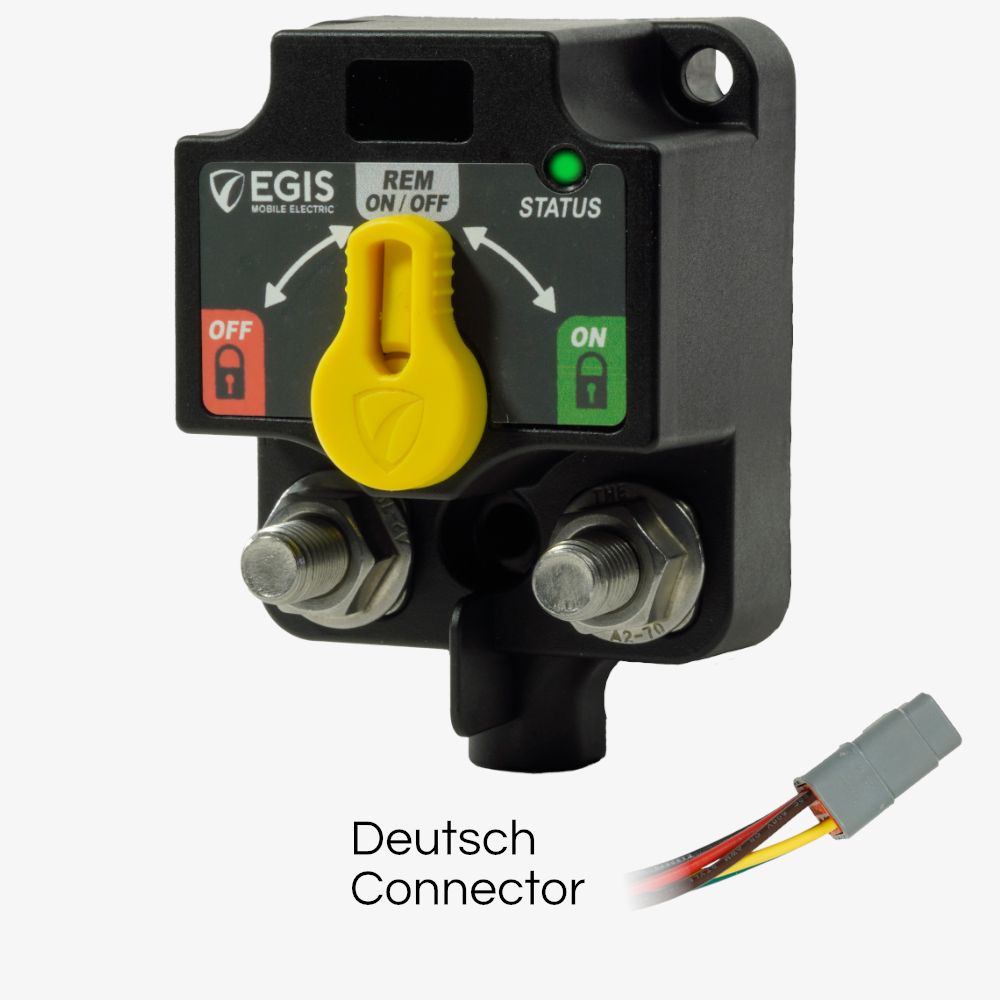

Egis Battery Disconnect Switch (MPN: 8810-1500)

Reliable rotary switch for marine applications with high current capacity.

The Egis Battery Disconnect Switch is engineered for marine applications, providing a robust solution for managing electrical systems. This rotary switch operates within a voltage range of 8 to 36 volts DC and supports a continuous capability of 500 amps, making it suitable for modern lithium battery systems that require higher on/off charge voltage settings. The switch features a compact footprint and is designed with stainless steel self-locking hardware to ensure durability in harsh environments.

Equipped with an intuitive front-facing manual override knob, the switch allows users to lock relays in either the ON or OFF position for servicing. The integrated LED indicator provides a clear visual status of the device, while a remote LED replicates the local indicator for added convenience. The switch also includes programmable dip switches for flexible functionality, allowing users to control each relay individually.

Designed to protect terminal studs and cable terminal edges from inadvertent shorts, the Egis Battery Disconnect Switch is built to withstand corrosion, ensuring longevity and reliability. With features such as weatherproof labeling and a Gortex vent to regulate internal pressure, this switch is optimized for performance in demanding marine conditions.

Features

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries

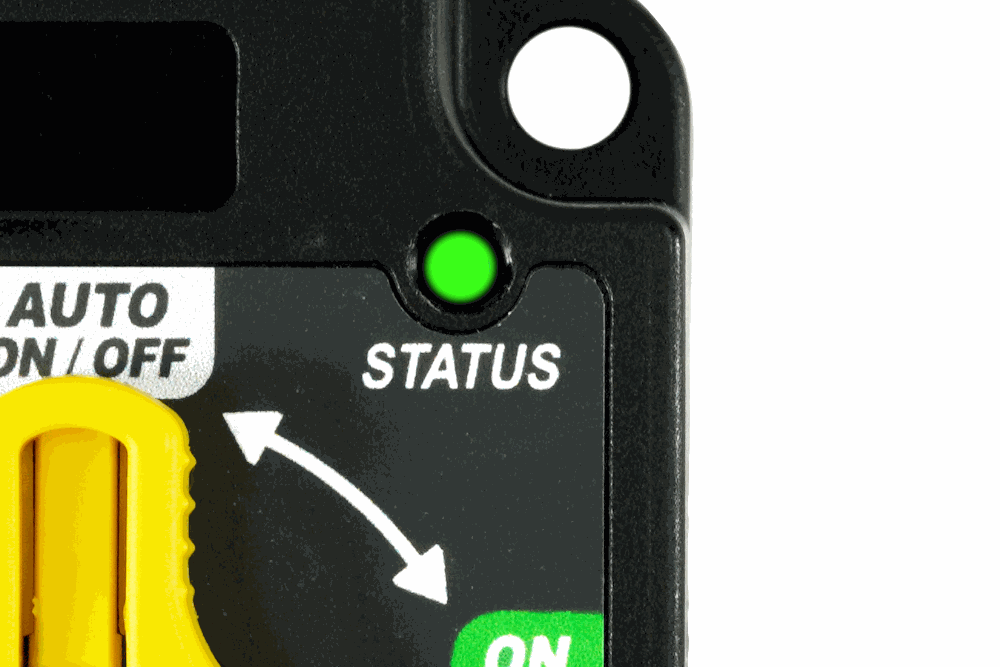

• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED

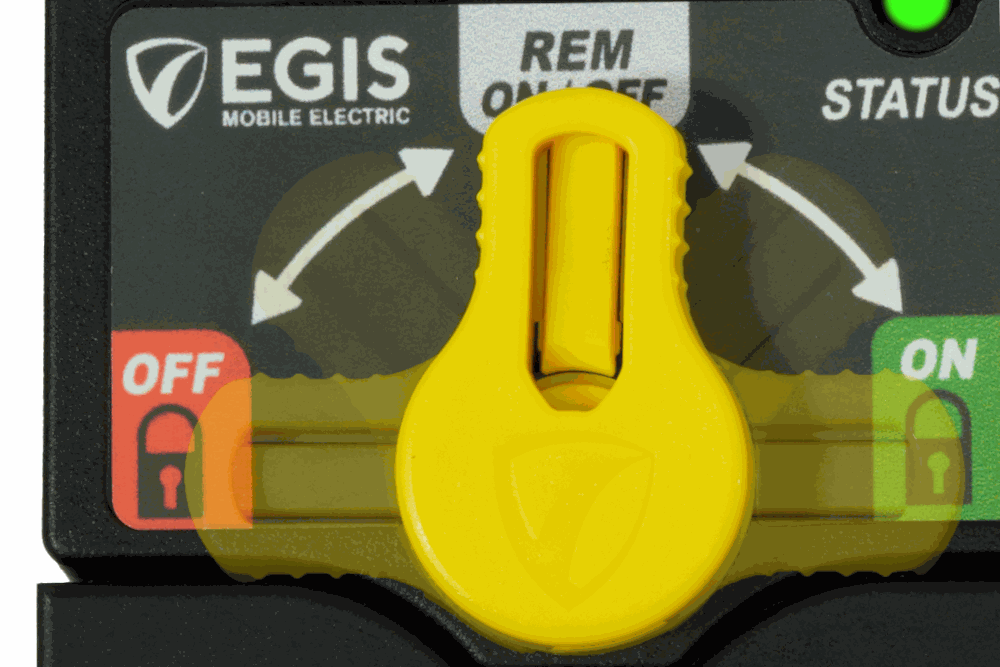

• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground

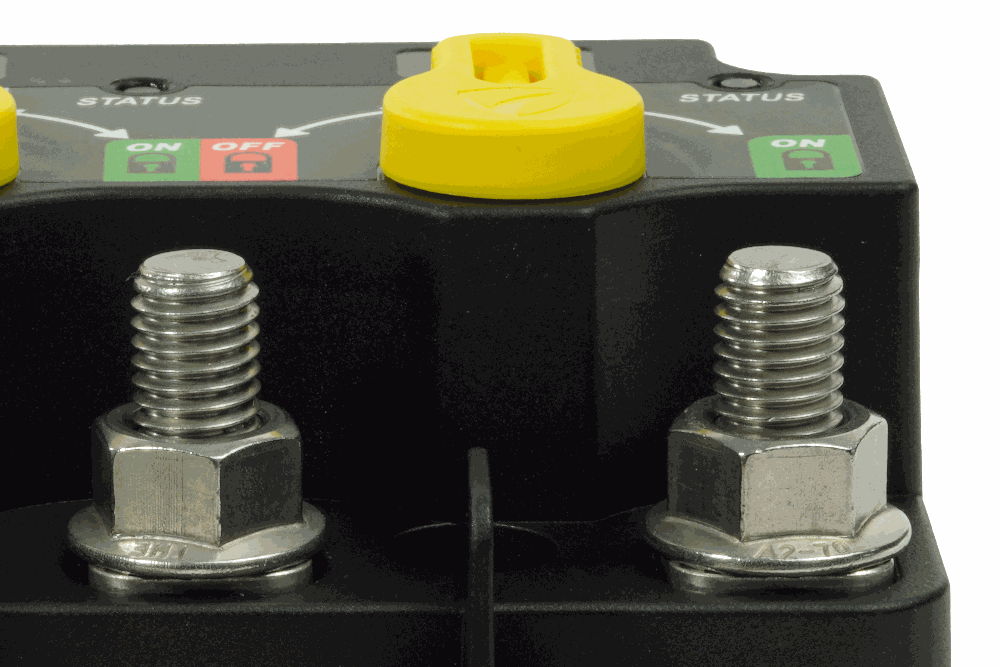

• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8810-1500
• Type: Rotary With Fixed Lever
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes

Technical Documents

• XD_Series_Flex_2_Relay-VSR_Specification-R3.pdf
