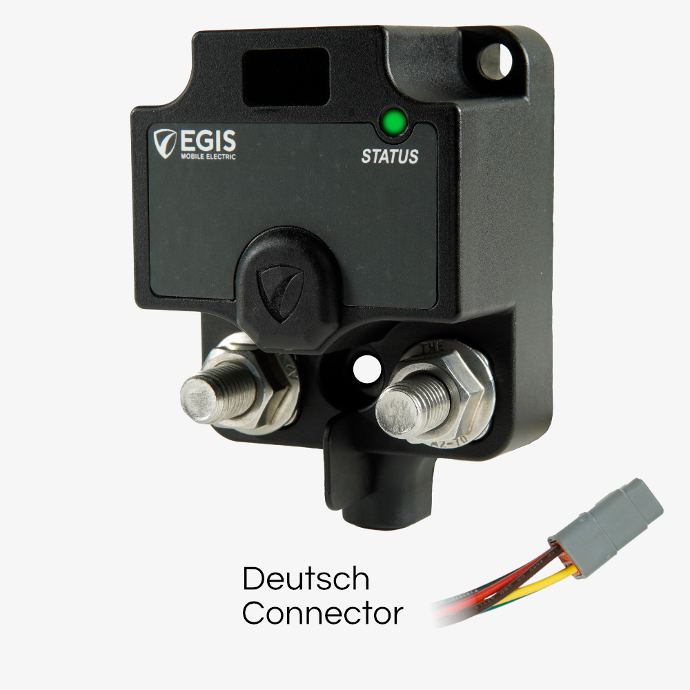

Egis Battery Disconnect Switch (MPN: 8810-1400)

Reliable battery management for marine applications with advanced features.

The Egis Battery Disconnect Switch is engineered for modern lithium battery-based electrical systems, accommodating higher on/off charge voltage settings compared to traditional battery chemistries. This switch operates within a voltage range of 8 to 36 volts DC and supports a continuous capability of 500 amps, making it suitable for demanding marine applications. Its compact design, measuring 3.15 inches in length, 2.59 inches in width, and 1.96 inches in height, allows for easy installation in tight spaces.

Featuring a front-facing LED indicator, the switch provides clear visual status feedback, while a remote LED replicates the local indicator for convenience. The device includes programmable dip switches for flexible functionality, allowing users to control each relay individually. The stainless steel construction ensures durability and resistance to corrosion, making it reliable in harsh marine environments.

The switch is designed with safety in mind, protecting terminal studs and cable edges from inadvertent shorts. Additionally, it includes weatherproof labeling for easy circuit and relay identification. With a high-quality Gortex vent, the switch regulates internal pressure to prevent moisture entry, ensuring longevity and performance in challenging conditions.

Features

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries

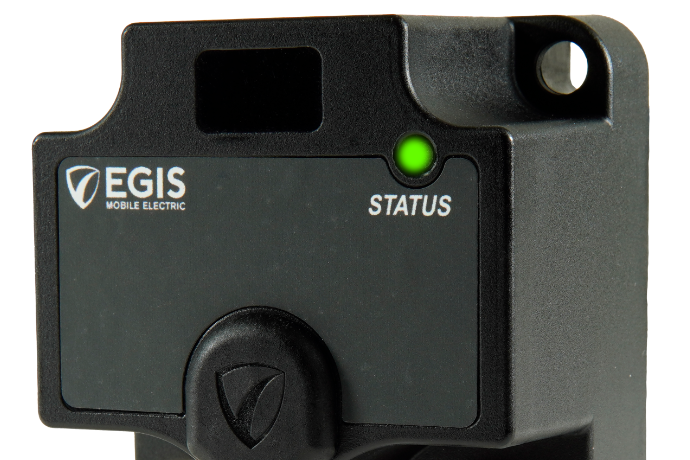

• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED

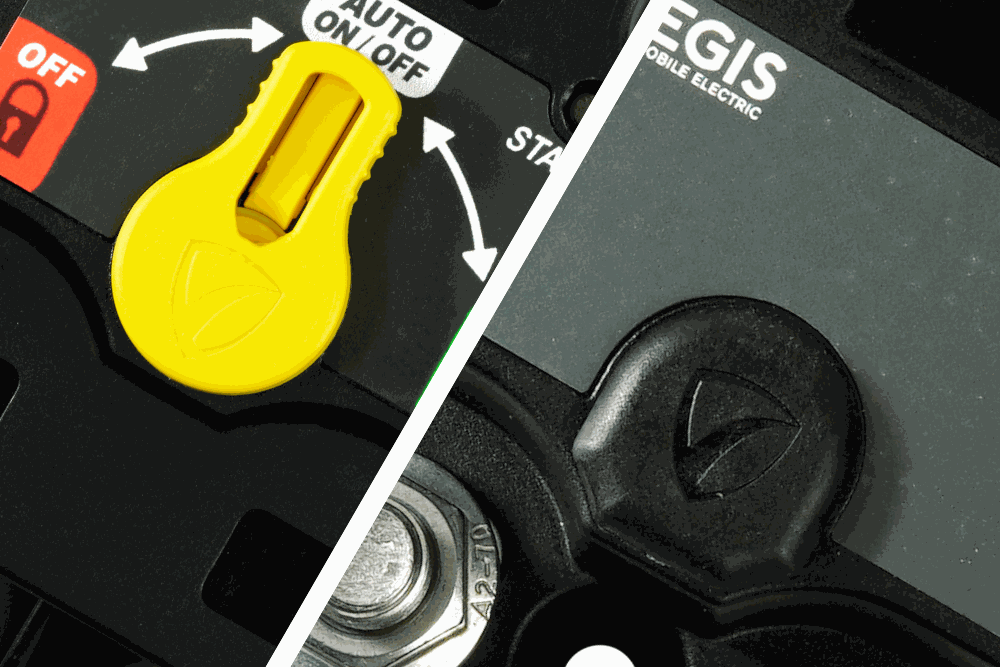

• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground

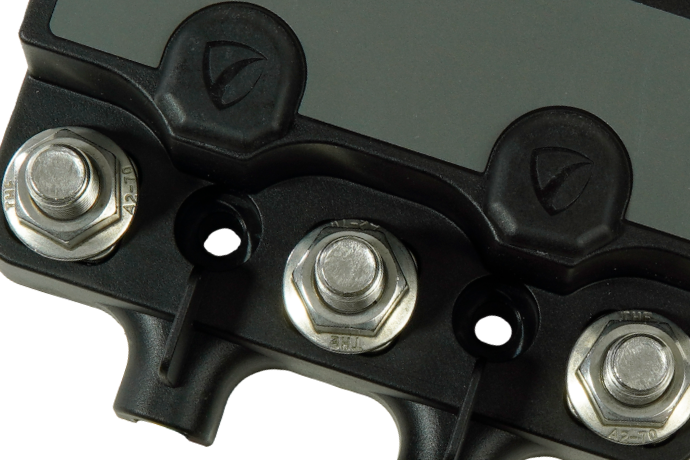

• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8810-1400
• Type: Push Button Switch
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes

Technical Documents

• XD_Series_Flex_2_Relay-VSR_Specification-R3.pdf
