Egis Battery Disconnect Switch (MPN: 8810-1300)

Reliable rotary switch for marine applications with high current capacity.

The Egis Battery Disconnect Switch is engineered for modern lithium battery-based electrical systems, accommodating higher on/off charge voltage settings compared to traditional battery chemistries. This rotary switch features a continuous capability of 500 amps and a maximum cranking current of 1500 amps, making it suitable for demanding marine applications. Its compact design, measuring 3.15 inches in length, 2.59 inches in width, and 1.96 inches in height, allows for versatile installation options while maintaining a low profile.

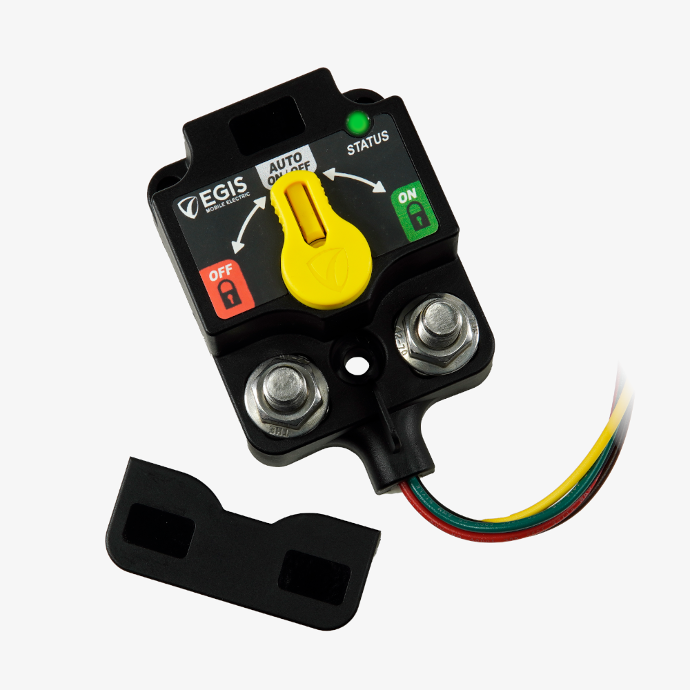

Equipped with intuitive front-facing manual override knobs, the switch allows users to lock relays in either the on or off position for servicing. The built-in LED indicator provides a clear visual status of the device, while a remote LED replicates the local indicator for added convenience. The switch is designed with programmable dip switches under a protective cover, enabling flexible functionality tailored to specific needs.

Constructed with high-quality stainless steel hardware, the Egis Battery Disconnect Switch is resistant to corrosion, ensuring durability in harsh marine environments. The design includes features that protect terminal studs and cable terminal edges from inadvertent shorts, enhancing safety and reliability. Additionally, a Gortex vent regulates internal pressure, preventing moisture entry and contributing to the longevity of the product.

Features

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries
• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED
• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground
• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8810-1300
• Type: Rotary With Fixed Lever
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes

Technical Documents

• XD_Series_Flex_2_Relay-VSR_Specification-R3.pdf
