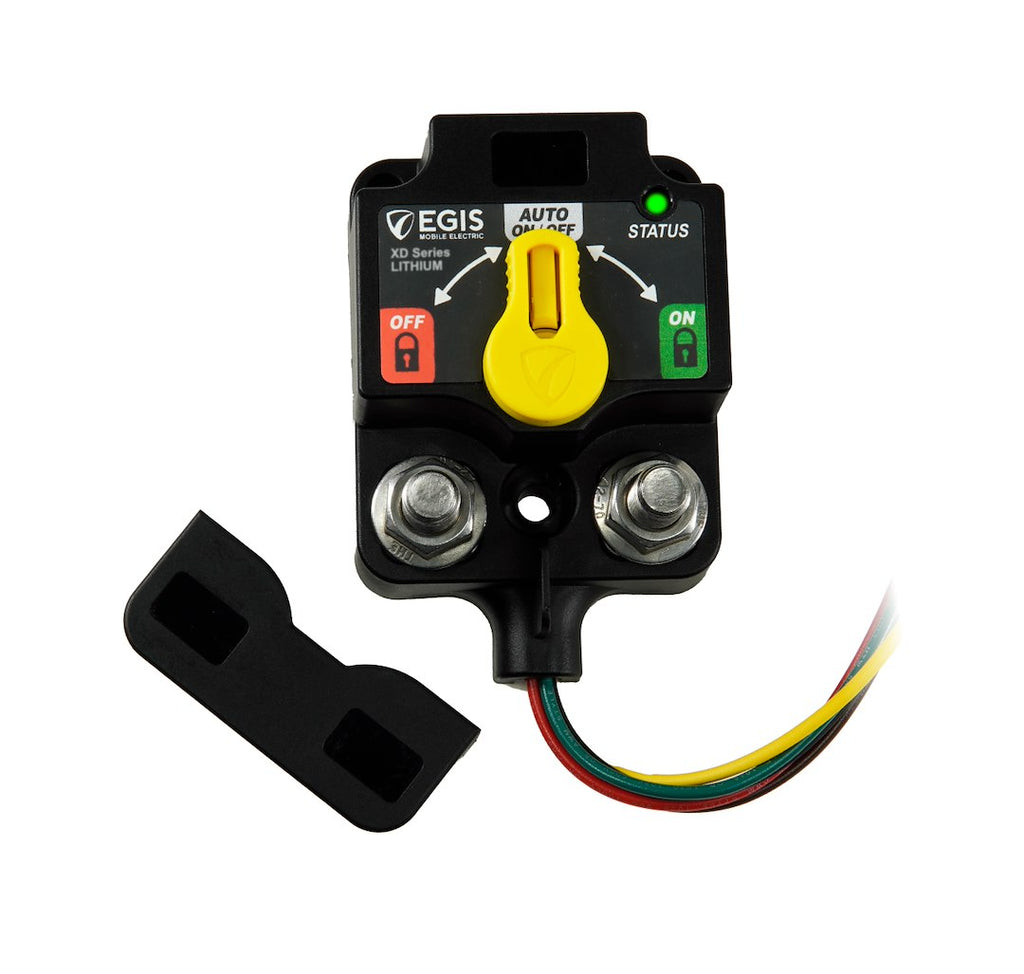

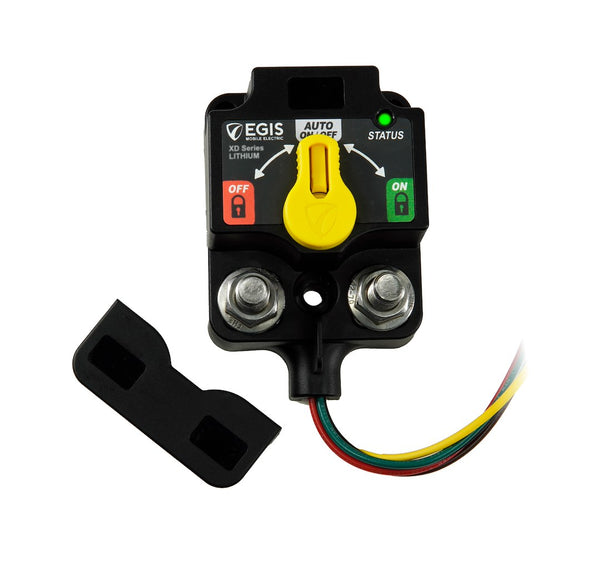

Egis Battery Disconnect Switch (MPN: 8610-1300)

Reliable rotary switch for marine applications with high current capacity.

The Egis Battery Disconnect Switch is engineered for marine applications, providing a robust solution for managing electrical systems. This rotary switch operates within a voltage range of 8 to 36 volts DC and supports a continuous current rating of 500 amps, making it suitable for modern lithium battery systems that require higher on/off charge voltage settings. The switch features a compact design with dimensions of 3.15 inches in length, 2.59 inches in width, and 1.96 inches in height, allowing for easy installation in tight spaces.

Equipped with intuitive front-facing manual override knobs, the switch allows users to lock relays in either the ON or OFF position for servicing. The inclusion of a front-facing LED indicator provides a clear visual status of the device, while a remote LED replicates the local indicator for added convenience. The switch is designed with programmable dip switches located under a protective cover, enabling flexible functionality tailored to specific needs.

Constructed with high-quality stainless steel components, the Egis Battery Disconnect Switch is resistant to corrosion, ensuring durability in harsh marine environments. The design also includes features that protect terminal studs and cable terminal edges from inadvertent shorts, enhancing safety and reliability. With a high-quality Gortex vent, the switch regulates internal pressure to prevent moisture entry, contributing to a long product life.

Features

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries
• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED
• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground
• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8610-1300
• Type: Rotary With Fixed Lever
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes
