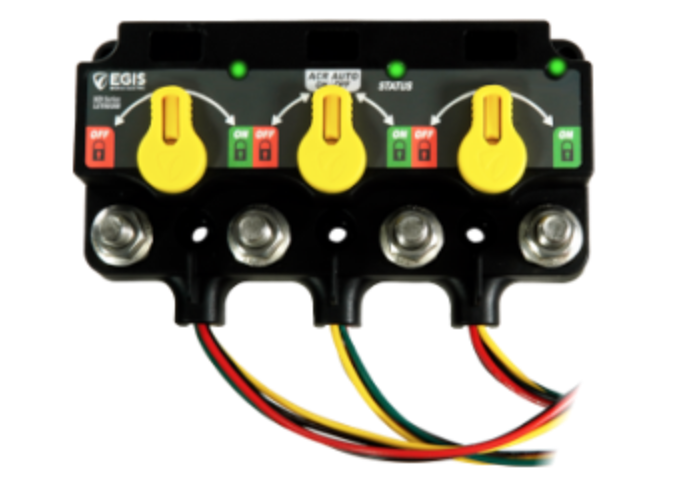

Egis Battery Disconnect Switch (MPN: 8530-1535)

Reliable rotary switch for marine applications with high current capacity.

The Egis Battery Disconnect Switch is engineered for marine applications, providing a robust solution for managing electrical systems. This rotary switch operates within a voltage range of 8 to 36 volts DC and supports a continuous capability of 500 amps, making it suitable for modern lithium battery-based systems that require higher on/off charge voltage settings. The switch features a compact footprint and is designed with stainless steel self-locking hardware to ensure durability in harsh environments.

Equipped with intuitive front-facing manual override knobs, the switch allows users to lock relays in either the ON or OFF position for servicing. The easy-to-read LED indicator provides visual status, while a remote LED replicates the local device status for convenience. Additionally, the switch includes programmable dip switches for flexible functionality, allowing users to control each relay individually.

Protection against inadvertent shorts is a key feature, with terminal studs and cable terminal edges safeguarded from potential damage. The high-quality Gortex vent regulates internal pressure, preventing moisture entry and ensuring long product life. With a temperature operating range of -40 to 221 degrees Fahrenheit, this switch is built to withstand extreme conditions, making it a reliable choice for marine electrical systems.

Features

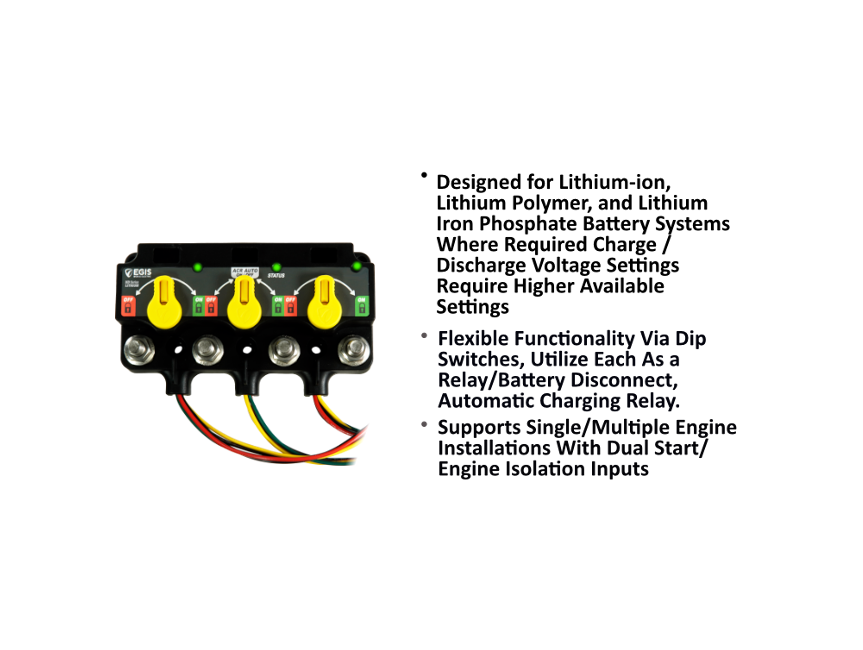

• Designed For Modern Lithium Battery Based Electrical System Applications That Often Require Higher On/ Off Charge Voltage Settings Over Legacy Battery Chemistries

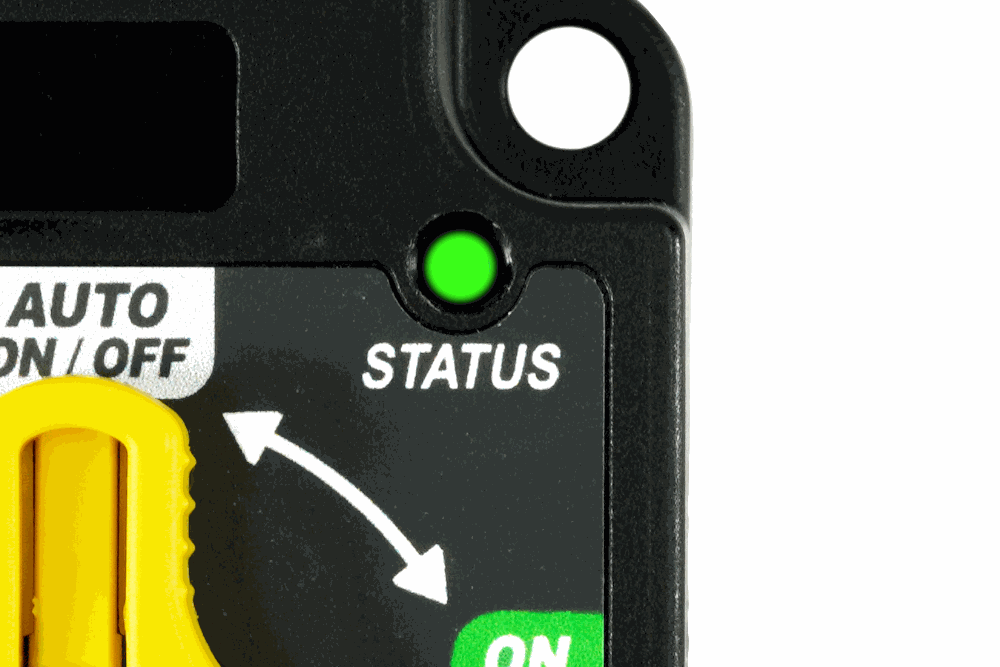

• Easy To See Front Facing LED Indicator Provides Visual Device Status, Remote LED Replicates Local On-Device LED

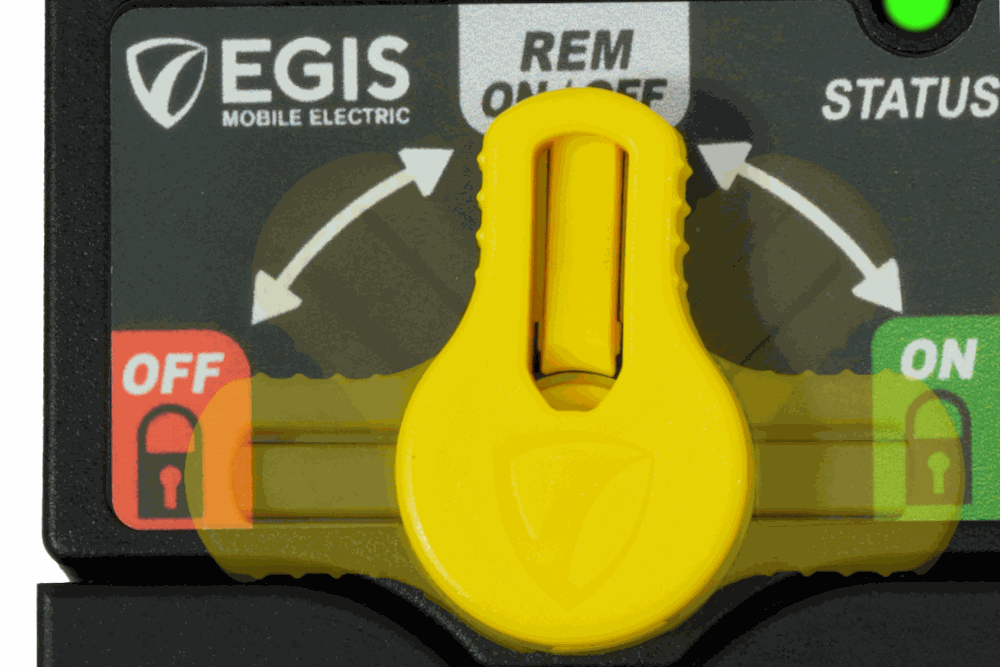

• Force Each Individual Relay Open Or Closed And Optionally Leave Knob In Either Position To Lock Relay In Either Condition
• Convenient Recesses For Included Weatherproof Label Set Makes Circuit And Relay Identification Easy
• Protects Terminal Studs And Cable Terminal Edges From Inadvertent Shorts To Each Other Or Ground

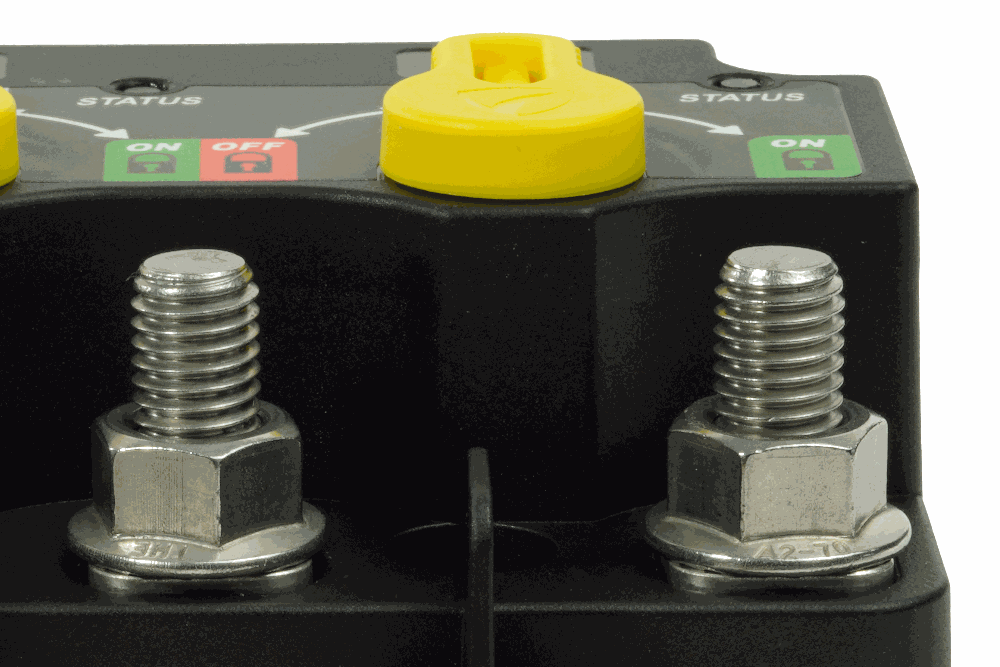

• Corrosion Is No Issue With Quality Stainless Steel Studs And Self-Locking Flanged Nuts
• Programmable Via Dip Switches Located Under Protective Cover
• High Quality Gortex Vent Regulates Internal Device Pressure To Eliminate Moisture Entry Across Seals And Ensure Long Product Life In Harsh Environments

Specifications

• Manufacturer: Egis
• Manufacturer Part Number: 8530-1535
• Type: Rotary With Fixed Lever
• Activation Type: Manual
• Continuous Ampere Rating (A): 500 Amp
• Installation Type: Bolt-On
• Marine: Yes

Technical Documents

• XD_Series_Flex_L_-_Lithium_Battery_-_Relay-VSR_Specification-R2.pdf
