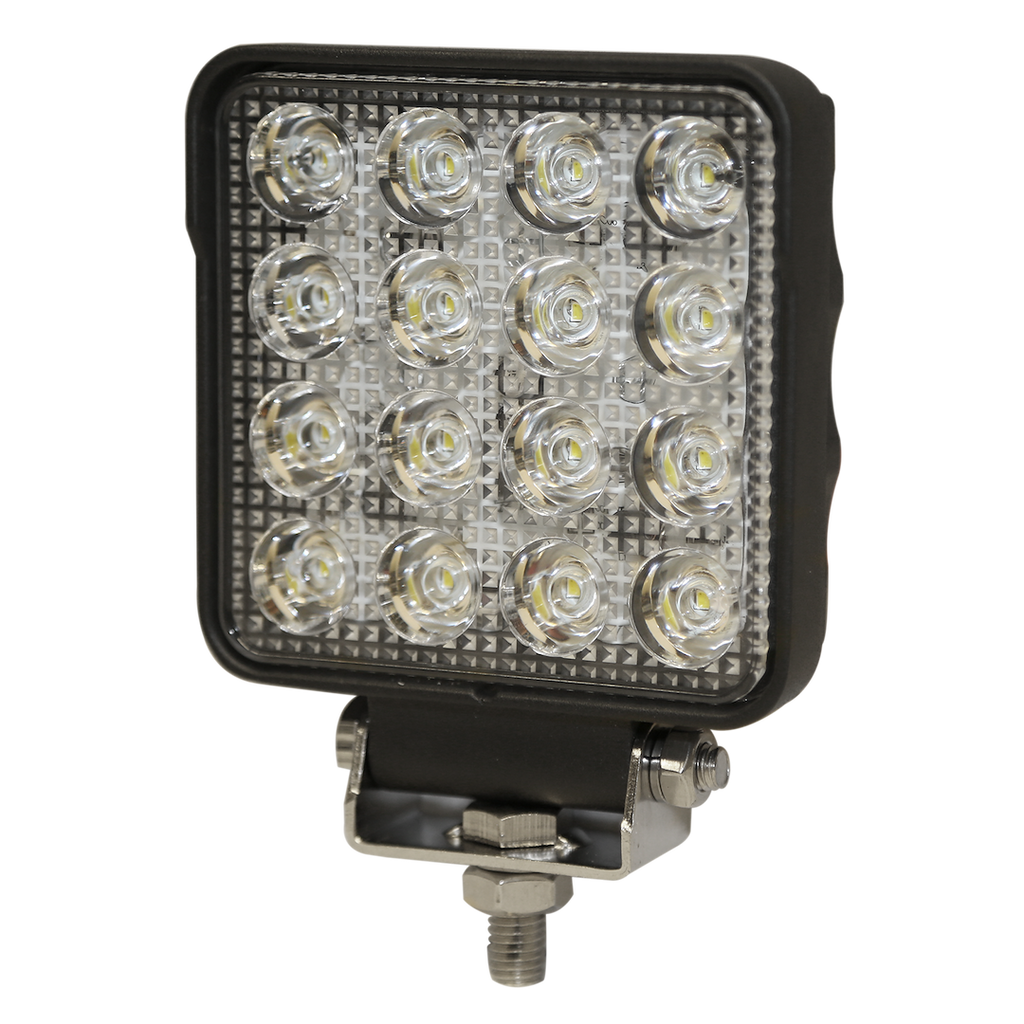

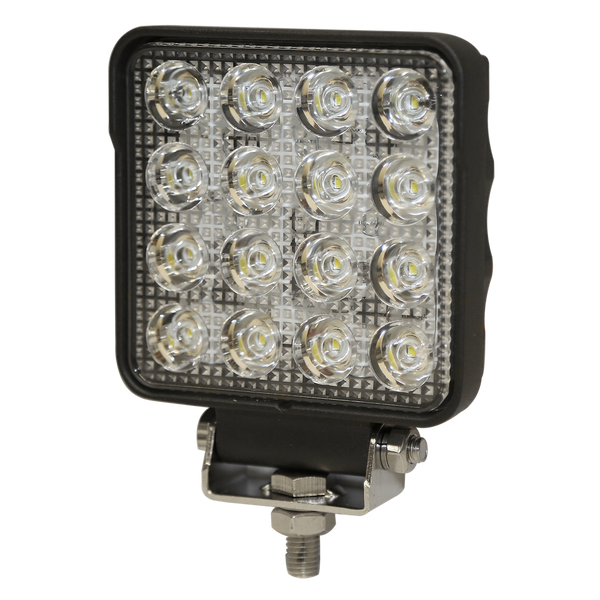

Ecco Electronic Work Light (MPN: EW2421)

High-intensity LED work lamp with exceptional durability and efficiency.

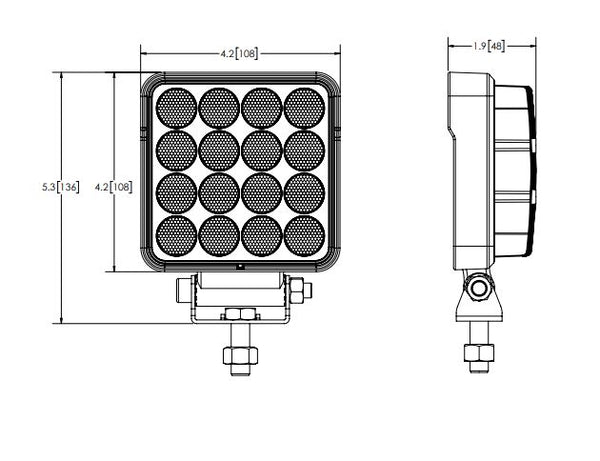

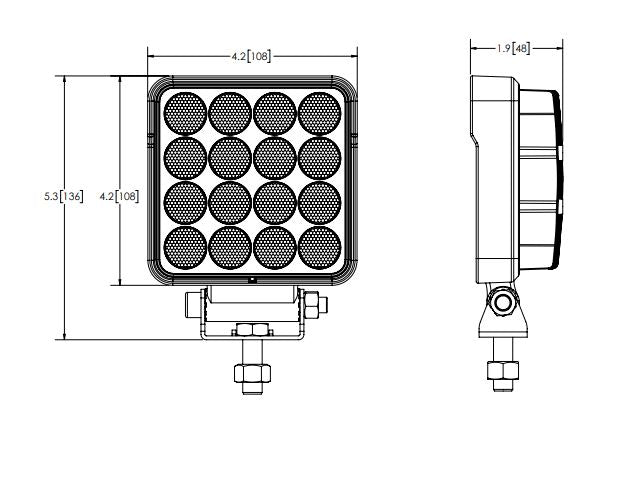

The Ecco Electronic Work Light is designed to deliver high-intensity illumination with its 16 LED configuration, providing a powerful output of 2400 raw lumens and 2200 effective lumens. This work lamp operates on a 12 to 24 Volt DC power source, making it versatile for various applications. With a compact square design measuring 4.3 inches in width and height, it is suitable for pedestal mounting in tight spaces.

Constructed with an aluminum heatsink housing and a polycarbonate lens, this work light is built to withstand harsh conditions, featuring an IP67 rating for intrusion protection. The maintenance-free life expectancy of over 80,000 hours ensures long-term reliability while maintaining a low amp draw of 2 amps. This combination of features makes the Ecco Electronic Work Light an efficient choice for demanding environments.

Whether used in construction, automotive, or outdoor settings, this LED work lamp provides bright, flood beam lighting that enhances visibility and safety. The included steel mounting bracket allows for easy installation, ensuring that the light can be positioned exactly where it is needed.

Features

• 16 3-Watt LEDs
• Aluminum Heatsink Housing
• Polycarbonate Lens
• Steel Mounting Bracket
• IP67 Rated

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: EW2421
• Type: Pedestal Mount
• Bulb Type: LED
• Power Source: 12 To 24 Volt
• Quantity: Single
• Diameter (IN): Not Applicable
• Length (IN): 4-1/4 Inch
• Width (IN): 2-3/4 Inch
• Height (IN): 4-1/4 Inch
• Housing Color: Black
• Light Color: White
• Shape: Square
• Lens Material: Polycarbonate
• Housing Material: Aluminum
• Bulb or Lens Guard: No
• Ampere Rating At 12 Volts: 2 Amp
• Includes Charging Port: No
• Includes Mounting Hardware: Yes

Technical Documents

• 920-0421-00.pdf
• EW2421_ECCO_8.5x11.pdf
• EW2421.pdf
