Ecco Electronic Warning Light (MPN: ED3712BC)

Versatile LED light with dual color and multiple mounting options.

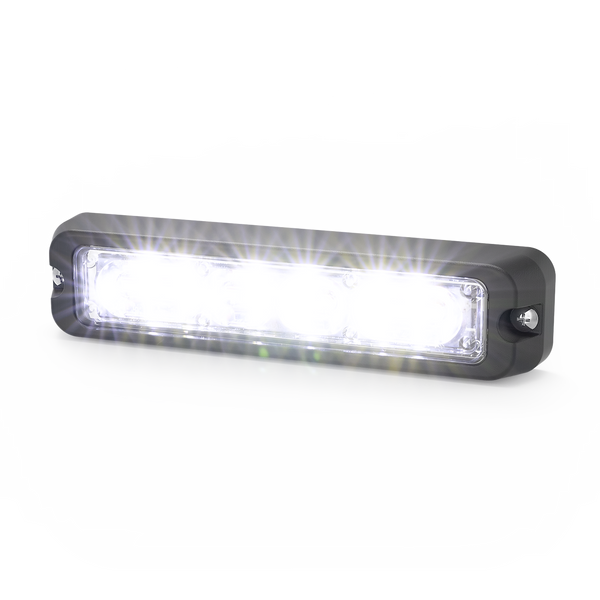

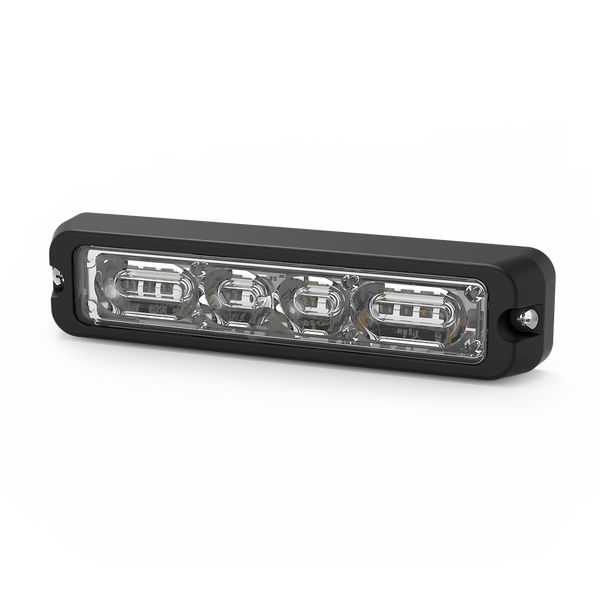

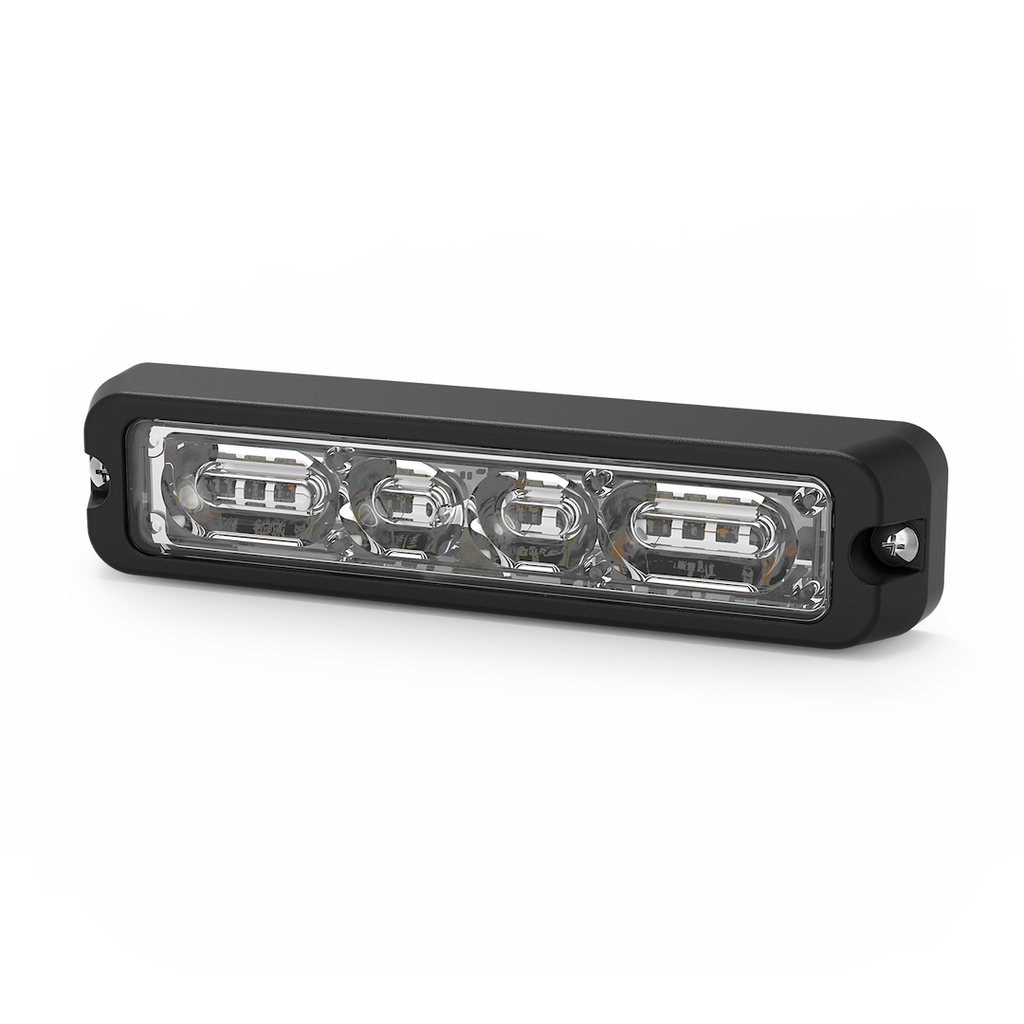

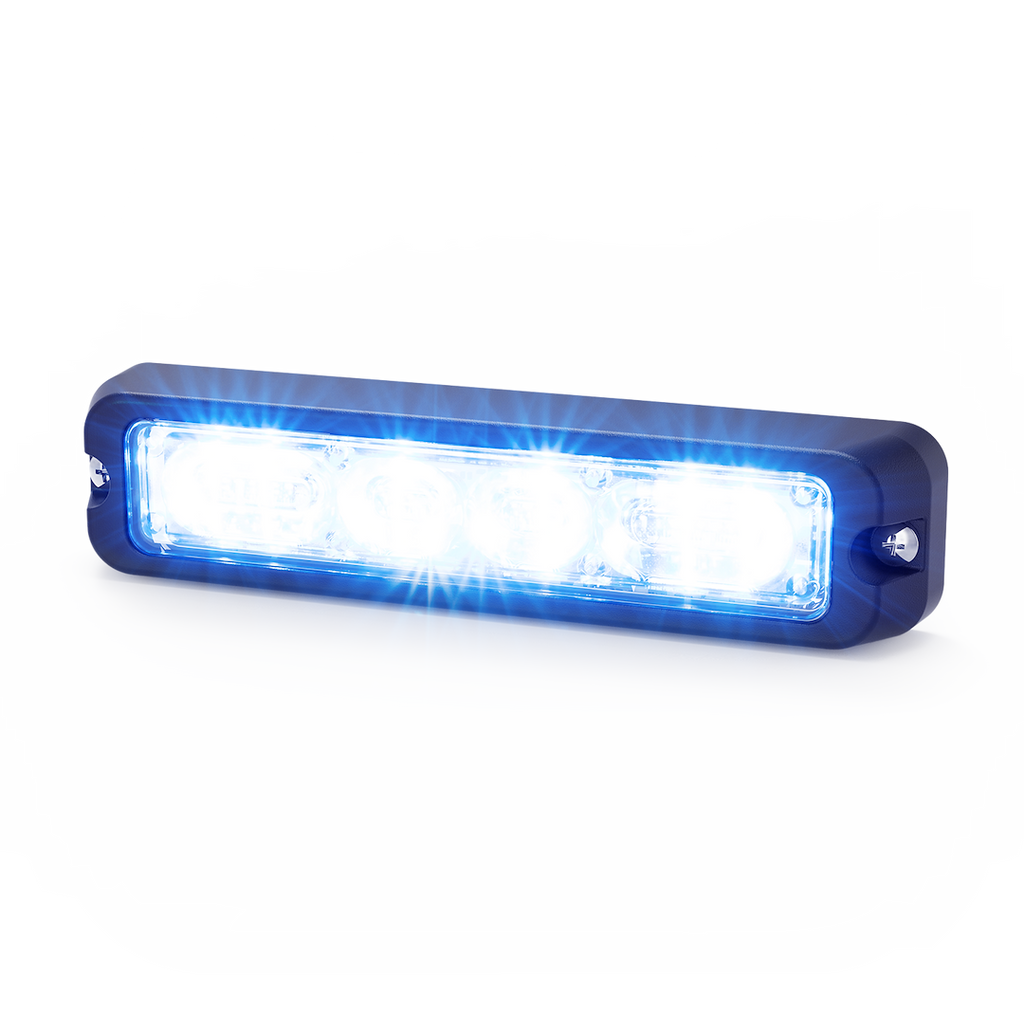

The Ecco Electronic Warning Light is a low profile LED unit designed for versatility and high visibility. Measuring 5.2 inches in width, 0.8 inches in depth, and 1.2 inches in height, this warning light features dual-color outputs with six high intensity LEDs for each color, providing effective signaling in various applications. It supports four different mounting options including surface mount, tilt bracket, self-adhesive mount, and edge mount, allowing for flexible installation in diverse environments.

This warning light is equipped with 12 distinct flash patterns and offers synchronization capability, ensuring maximum light output from all angles. The temperature range of -22 degrees Fahrenheit to +122 degrees Fahrenheit (-30 degrees Celsius to +50 degrees Celsius) makes it suitable for use in extreme conditions. The Ecco Electronic Warning Light is powered by a 12 to 24 volt supply, making it compatible with a wide range of vehicles and equipment.

Features

• 12 High Intensity LEDs (6 Per Color)
• Dual-Color Warning
• 12 Flash Patterns
• Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit (-30 Degree Celsius To +50 Degree Celsius)
• Synchronizable

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: ED3712BC
• Shape: Rectangular
• Length (IN): 0.8 Inch
• Width (IN): 5.2 Inch
• Height (IN): 1.2 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Multi Mount
• Lens Color: Blue/ White
• Light Pattern: 12 Flash Pattern
• Power Supply: 12 To 24 Volt
• Wire Length (FT): No Wire
• With Cigarette Lighter Plug: No
• Number Of Alley Lights: No Alley Lights
• Number Of Takedown Lights: No Takedown Lights
• Number Of Flashing Marker Lights: No Flashing Marker Lights
• Includes Control Panel: No
• Includes Gaskets: No

Technical Documents

• 920-0399-00.pdf
• ED3712-ED3716_ECCO_8.5x11.pdf
• ED3712XX.pdf
