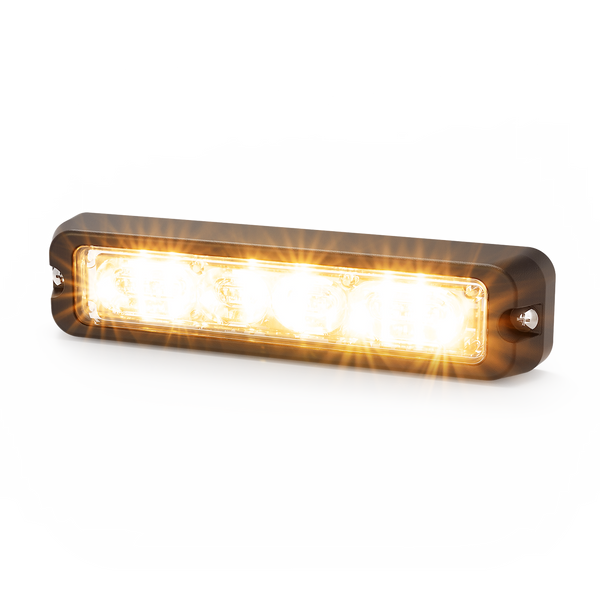

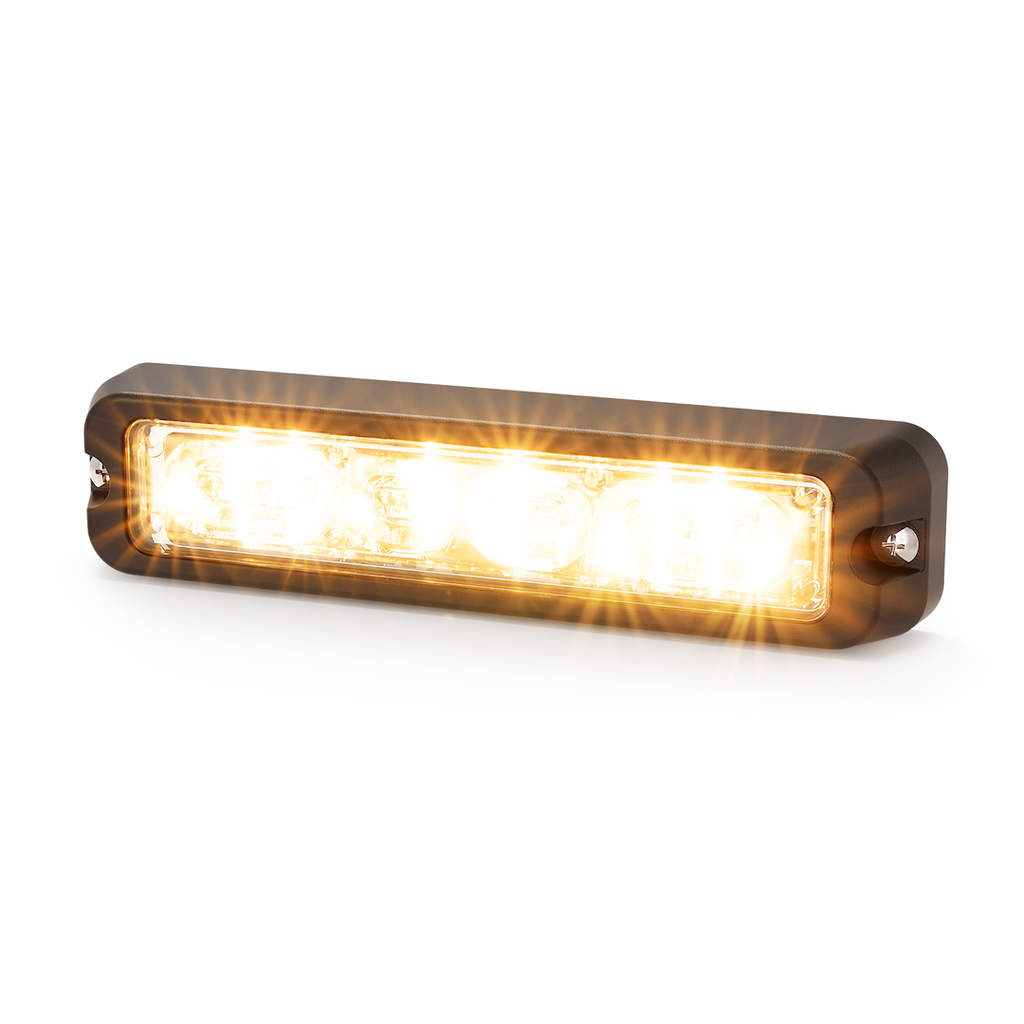

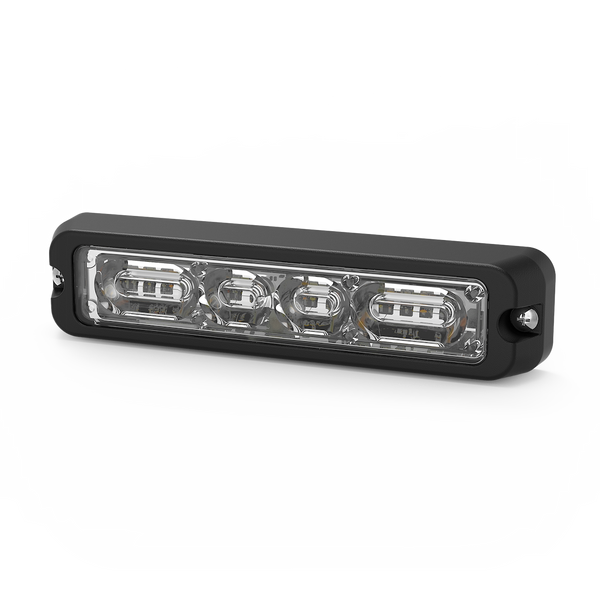

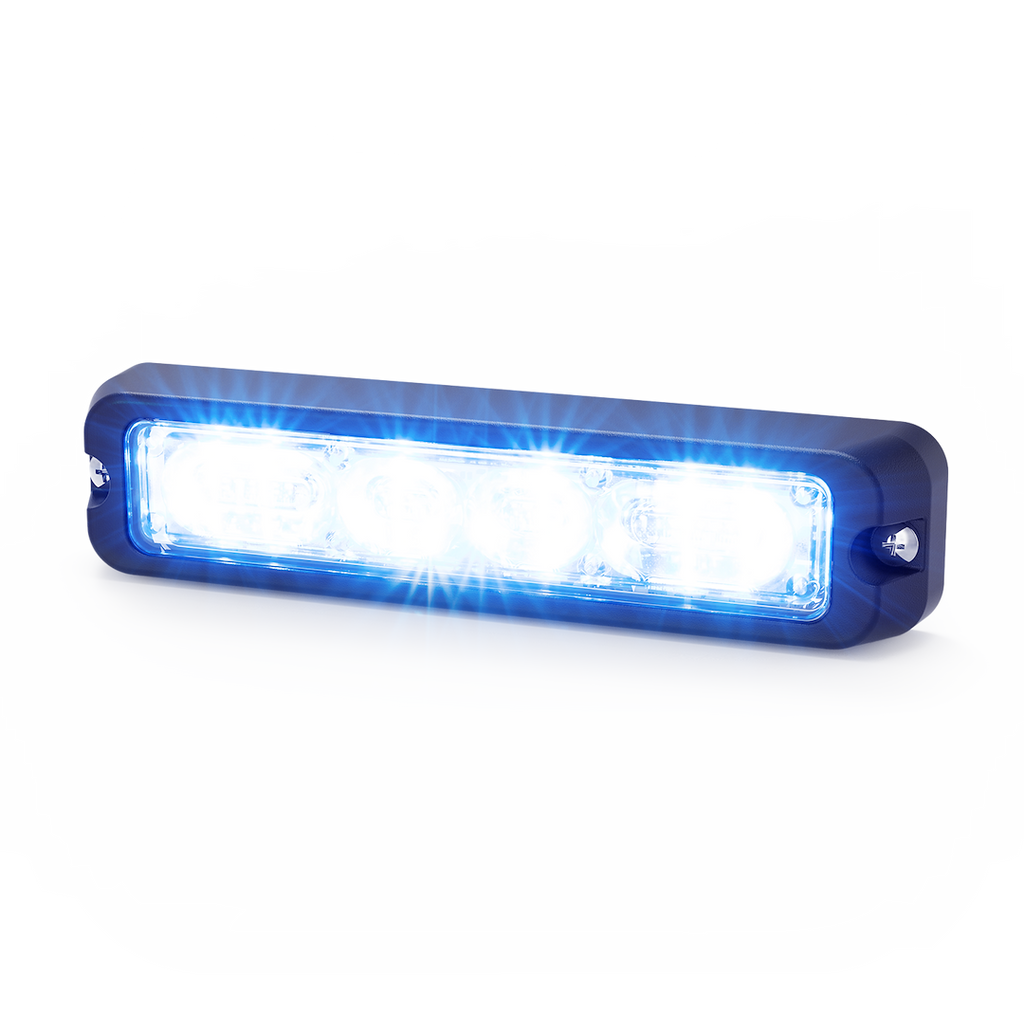

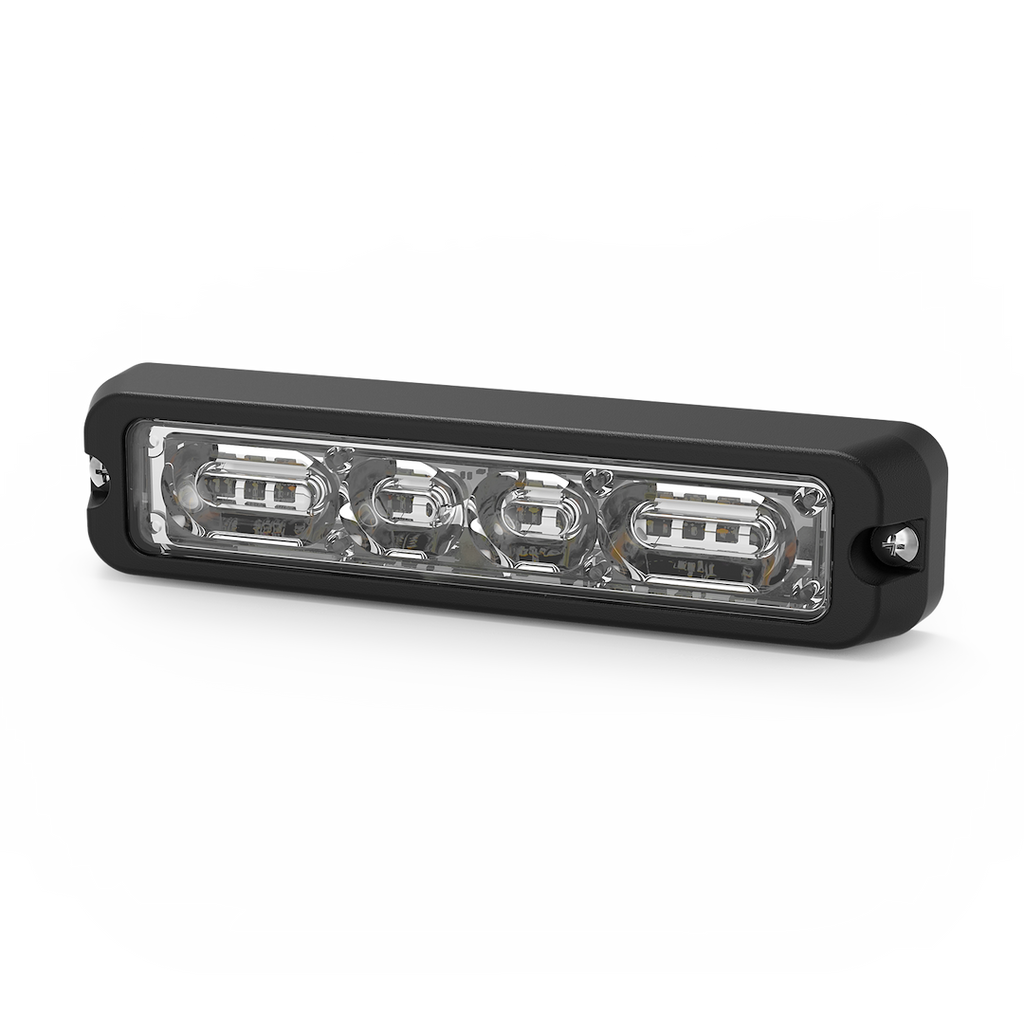

Ecco Electronic Warning Light (MPN: ED3712AB)

Versatile dual-color LED light with multiple mounting options and flash patterns.

The Ecco Electronic Warning Light is a low profile LED unit designed for versatility and high visibility. Measuring 5.2 inches in width, 0.8 inches in depth, and 1.2 inches in height, this warning light features dual-color outputs with six high intensity LEDs for each color, providing amber and blue illumination. It is suitable for a variety of applications, thanks to its four mounting options: surface mount, tilt bracket, self-adhesive mount, and edge mount.

This warning light offers 12 distinct flash patterns and synchronization capabilities, ensuring maximum light output from all angles. The temperature range of this unit is from -22 degrees Fahrenheit to +122 degrees Fahrenheit, making it reliable in various environmental conditions. The Ecco Electronic Warning Light operates on a power supply of 12 to 24 volts, making it compatible with a wide range of vehicles and equipment.

Features

• 12 High Intensity LEDs (6 Per Color)
• Dual-Color Warning
• 12 Flash Patterns
• Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit (-30 Degree Celsius To +50 Degree Celsius)
• Synchronizable

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: ED3712AB
• Shape: Rectangular
• Length (IN): 0.8 Inch
• Width (IN): 5.2 Inch
• Height (IN): 1.2 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Multi Mount
• Lens Color: Amber/ Blue
• Light Pattern: 12 Flash Pattern
• Power Supply: 12 To 24 Volt
• Wire Length (FT): No Wire
• With Cigarette Lighter Plug: No
• Number Of Alley Lights: No Alley Lights
• Number Of Takedown Lights: No Takedown Lights
• Number Of Flashing Marker Lights: No Flashing Marker Lights
• Includes Control Panel: No
• Includes Gaskets: No

Technical Documents

• 920-0399-00.pdf
• ED3712-ED3716_ECCO_8.5x11.pdf
• ED3712XX.pdf
