Compact LED warning light with multiple flash patterns for versatile applications.

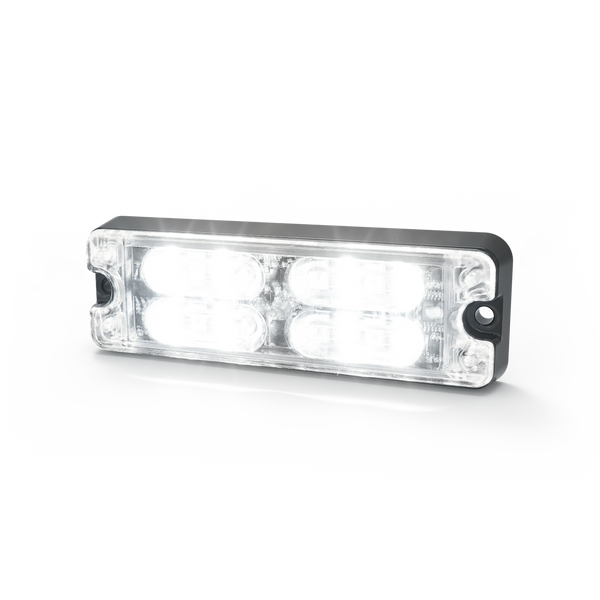

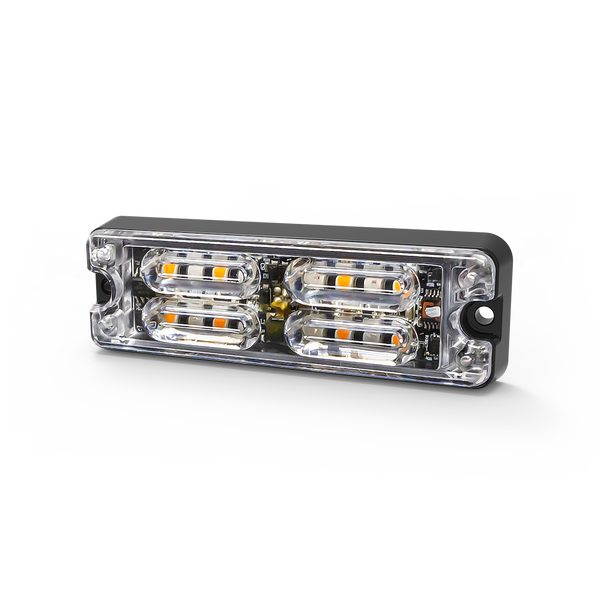

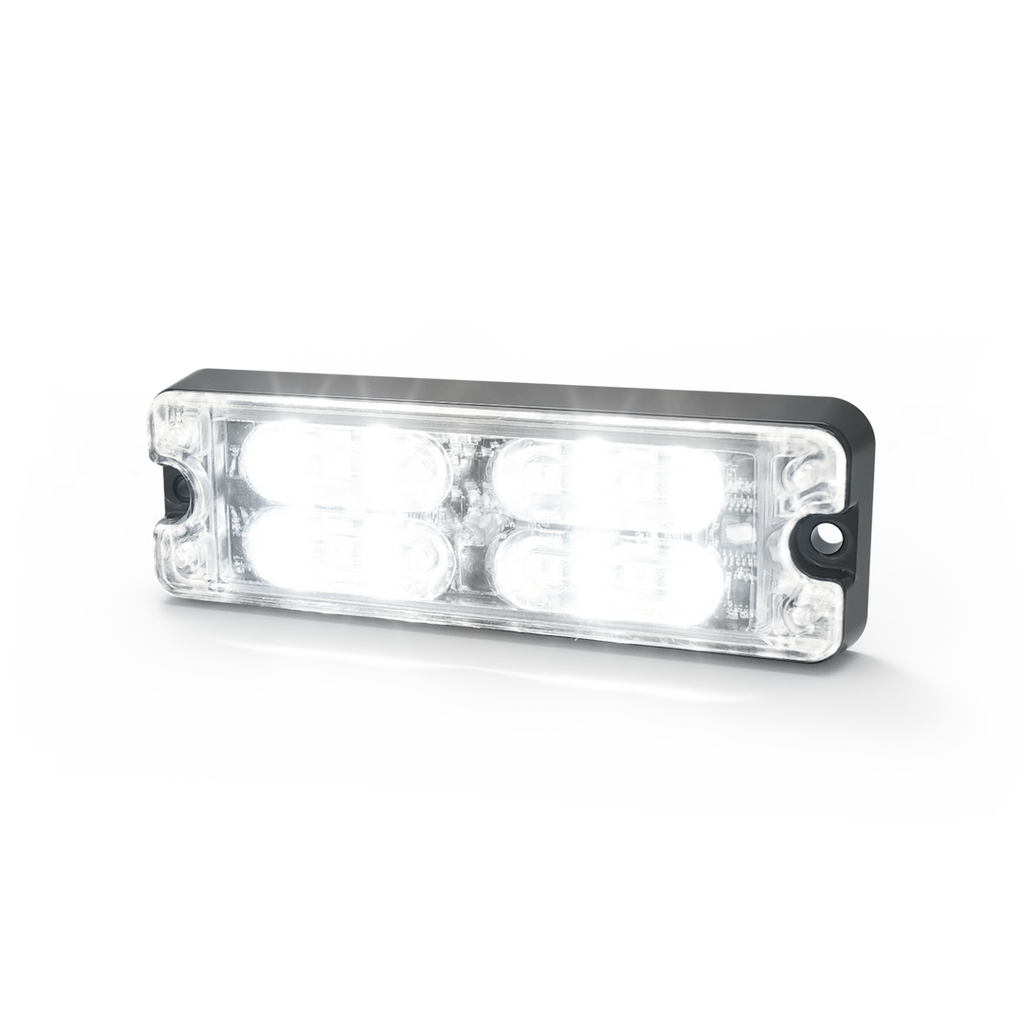

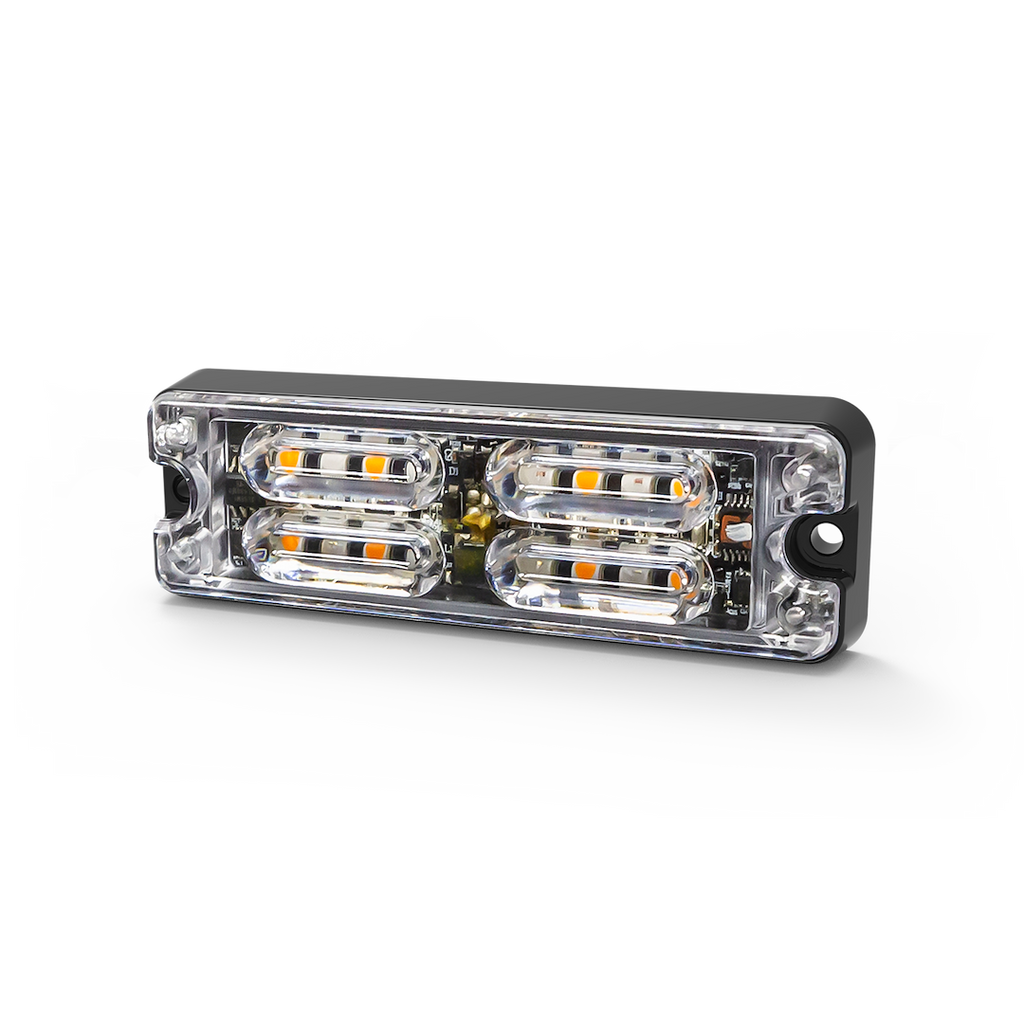

The Ecco Electronic ED3511 Series warning light is engineered for high performance in a compact design. Measuring just 3.3 inches in length, 1.1 inches in width, and 0.5 inches in height, this surface mount LED light is suitable for various vehicle applications, including work trucks and tow trucks. It features twelve 1-watt high-intensity LEDs that deliver exceptional visibility with 36 selectable flash patterns, ensuring effective warning signals in diverse environments.
Constructed with a UV-stabilized polycarbonate lens, the ED3511 is built to withstand harsh conditions while maintaining clarity and durability. The embedded electronics within the lighthead simplify installation and reduce the risk of damage. With a low current draw of 1.4 amps and a wide operating voltage range of 12 to 24 volts DC, this LED light is energy-efficient and designed for long-term use.
The ED3511 Series also offers synchronization capabilities with additional units, enhancing visibility when multiple lights are used together. Operating effectively in temperatures ranging from -22 to +122 degrees Fahrenheit, this warning light is a reliable choice for commercial vehicle applications, backed by a 5-year warranty for peace of mind.
Features
- UV-Stabilized Polycarbonate Lens
- Twelve 1-Watt High-Intensity LEDs Provide Exceptional Warning
- 36 Flash Patterns
- All Electronics Embedded In Lighthead
- Synchronizable With Additional ED3511s And Hide-A-LEDs
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: ED3511W
- Shape: Rectangular

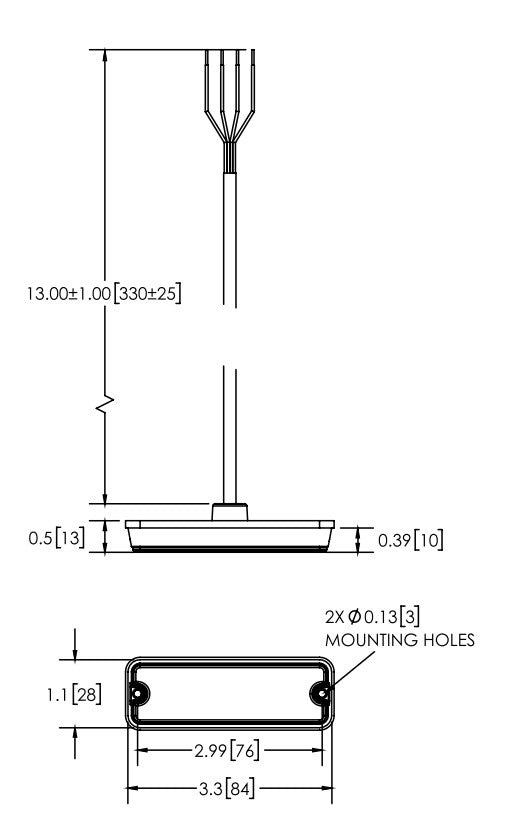

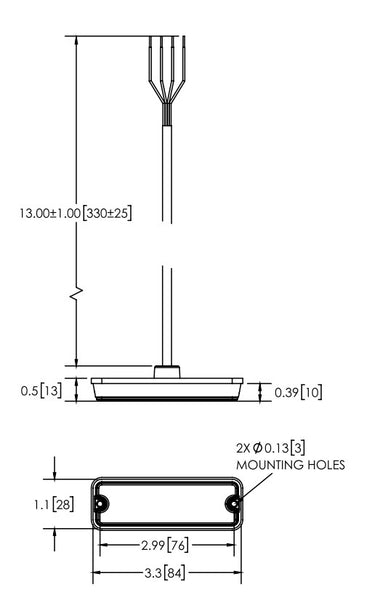

- Length (IN): 3.3 Inch
- Width (IN): 1.1 Inch
- Height (IN): 1/2 Inch
- Diameter (IN): Not Applicable
- Style: Full Bar
- Type: LED
- Mount Type: Surface Mount
- Lens Color: Clear
- Light Pattern: 36 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Wire Length (FT): 1 Feet
- Number Of Flashing Marker Lights: 36
