Ecco Electronic Warning Light (MPN: ED3060AW)

Multifunctional LED light with 69 flash patterns for enhanced visibility.

The Ecco Electronic Warning Light is designed to maximize visibility on the rear of vehicles, providing essential signaling for stop, turn, tail, and reverse functions. This low-profile, multifunctional light features dual-color LEDs that emit steady burn red and white colors, along with 69 distinct flash patterns to capture attention when activated. The light is constructed with high output LEDs that ensure low maintenance, long life, and low current consumption, making it an efficient choice for various applications.

Installation is straightforward with options for grommet or flange mounting, accommodating standard 4 inch rounded or 6 inch oval tail light applications. The ultrasonically sealed housing offers protection against vibration and shock, ensuring durability in challenging environments. With a temperature range of -22 to +122 degrees Fahrenheit, this warning light is built to perform reliably under diverse conditions.

Features

• 69 Flash Patterns
• High Output LEDs Offer Low Maintenance, Long Life And Low Current Consumption
• Ultrasonically Sealed Housing
• Grommet Mount Included To Fit In Standard 4 Inch Rounded Or 6 Inch Oval Tail Light Applications
• Vibration And Shock Resistant Construction
• Connector For Ground, Stop And Turn, Tail
• Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: ED3060AW
• Shape: Oval
• Length (IN): Not Applicable
• Width (IN): Not Applicable

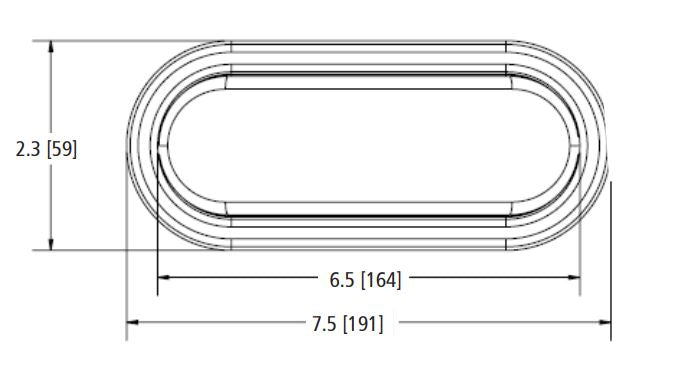

• Height (IN): 2.3 Inch
• Diameter (IN): 7-1/2 Inch X 1-3/16 Inch
• Style: Directional
• Type: LED
• Mount Type: Grommet Mount
• Lens Color: Clear/ Red
• Light Pattern: 69 Flash Pattern
• Power Supply: 12 To 24 Volt
• With Cigarette Lighter Plug: No

Technical Documents

• 920-0888-00.pdf
• ED3000_ECCO_8.5x11.pdf
• ED3060AW.pdf
