Versatile and Bright Directional LED Warning Light for Vehicles

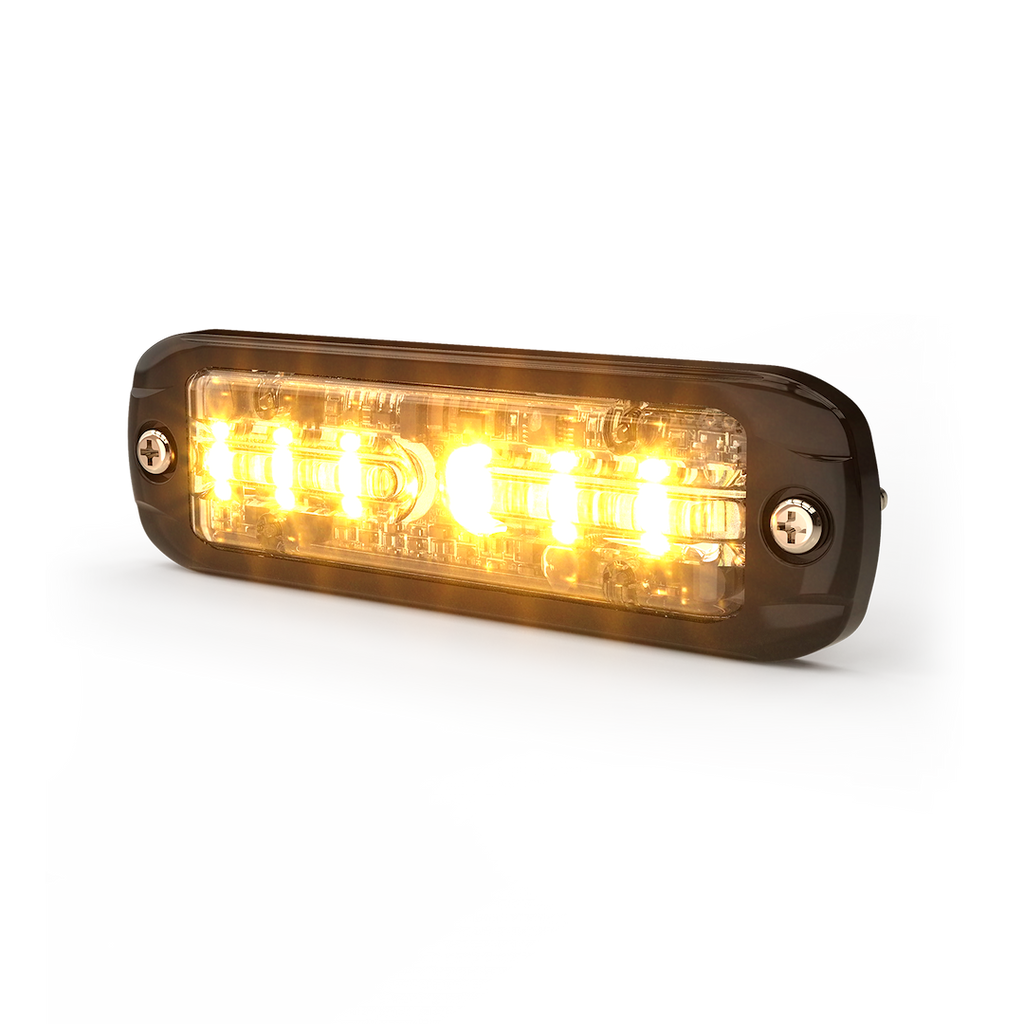

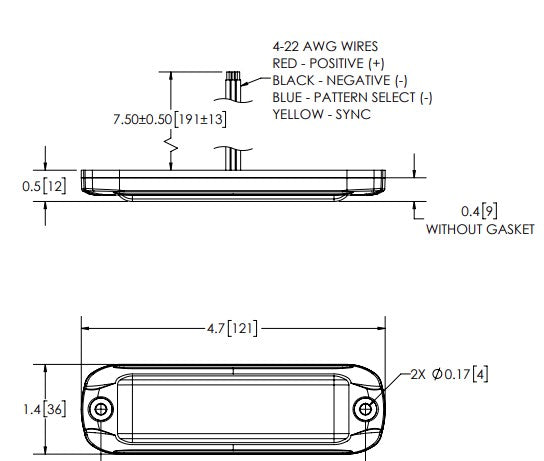

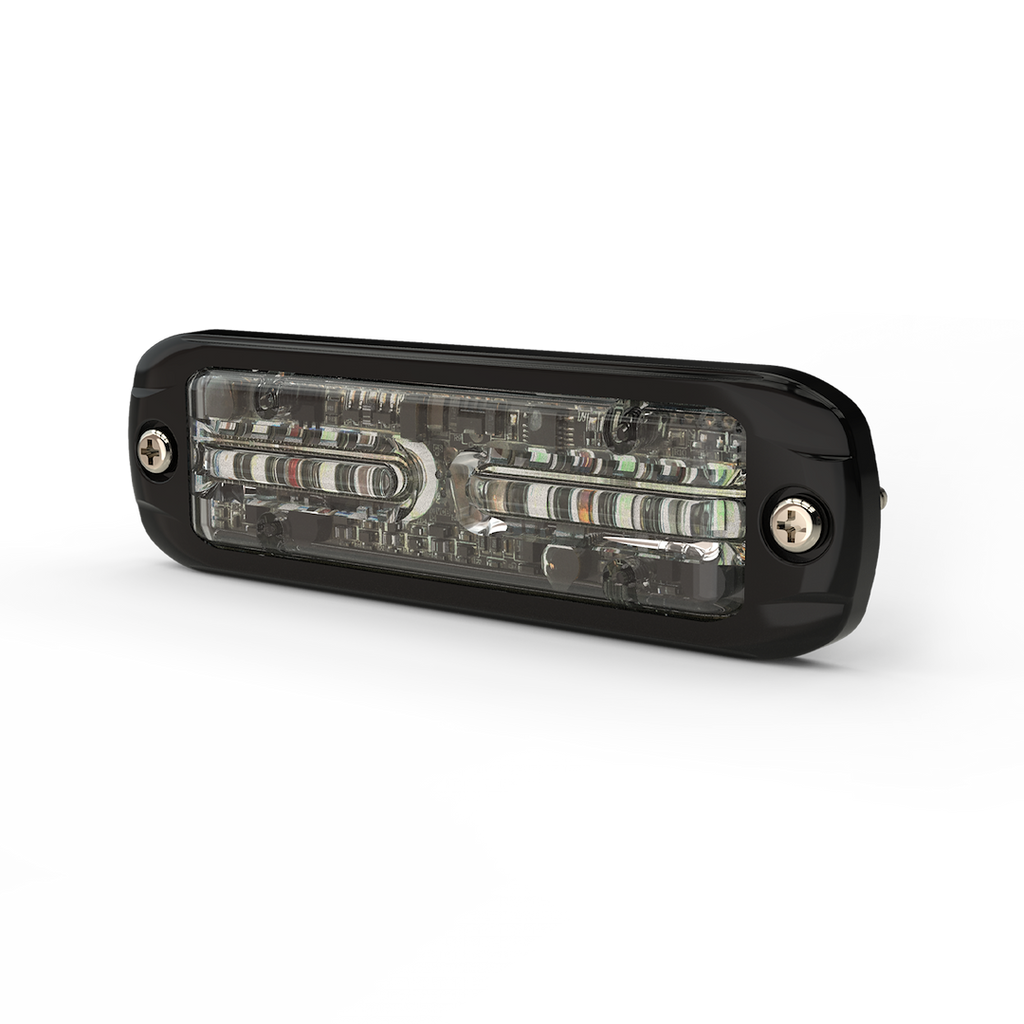

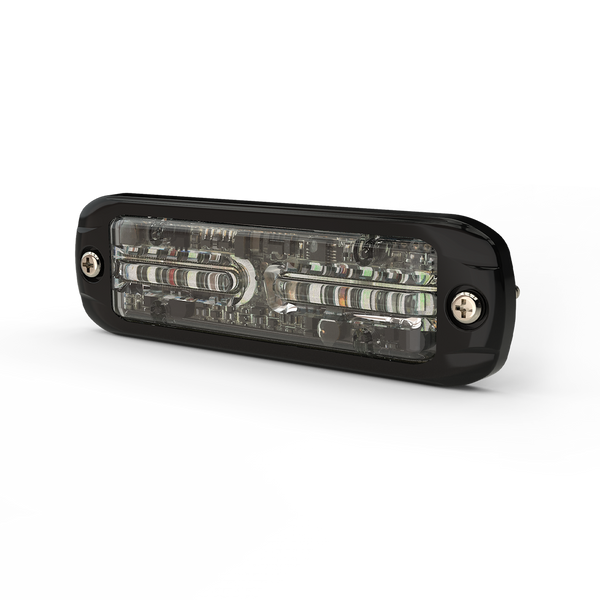

The Ecco Electronic Warning Light ED Series features a compact design with dimensions of 4-3/4 inches in length, 0.37 inches in width, and 1.4 inches in height. This ultra-low-profile surface mount LED light is engineered for a wide range of applications, providing exceptional visibility with high-intensity LEDs. The amber lens is designed to deliver clear warning signals, making it suitable for various vehicle types and environments.
This directional LED light offers 29 different flash patterns, allowing for customizable signaling options. The synchronization capability with other units enables simultaneous or alternating operation, enhancing the effectiveness of the warning system. Constructed with a die-cast base and a durable polycarbonate lens, this light is built to withstand harsh conditions, with a temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit.
Designed for easy installation, the Ecco Electronic Warning Light operates on a power supply of 12 to 24 volts DC. Its slim profile is 25 percent thinner than previous models, making it a practical choice for mounting in tight spaces. The independent control of each LED color further adds to its versatility, ensuring that users can tailor the light's performance to their specific needs.
Features
- Ultra Low-Profile Surface Mount
- Synchronizable
- Die-Cast Base With Polycarbonate Lens
- High-Intensity LEDs Provide Exceptional Warning
- 25 Percent Thinner Than Previous Models
- 12 To 24 Volt DC
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: ED3801A
- Shape: Rectangular
- Length (IN): 4-3/4 Inch
- Width (IN): 0.37 Inch
- Height (IN): 1.4 Inch
- Diameter (IN): Not Applicable
- Style: Directional
- Type: LED
- Mount Type: Surface Mount
- Lens Color: Amber
- Light Pattern: 29 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Die-Cast
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: 29
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
