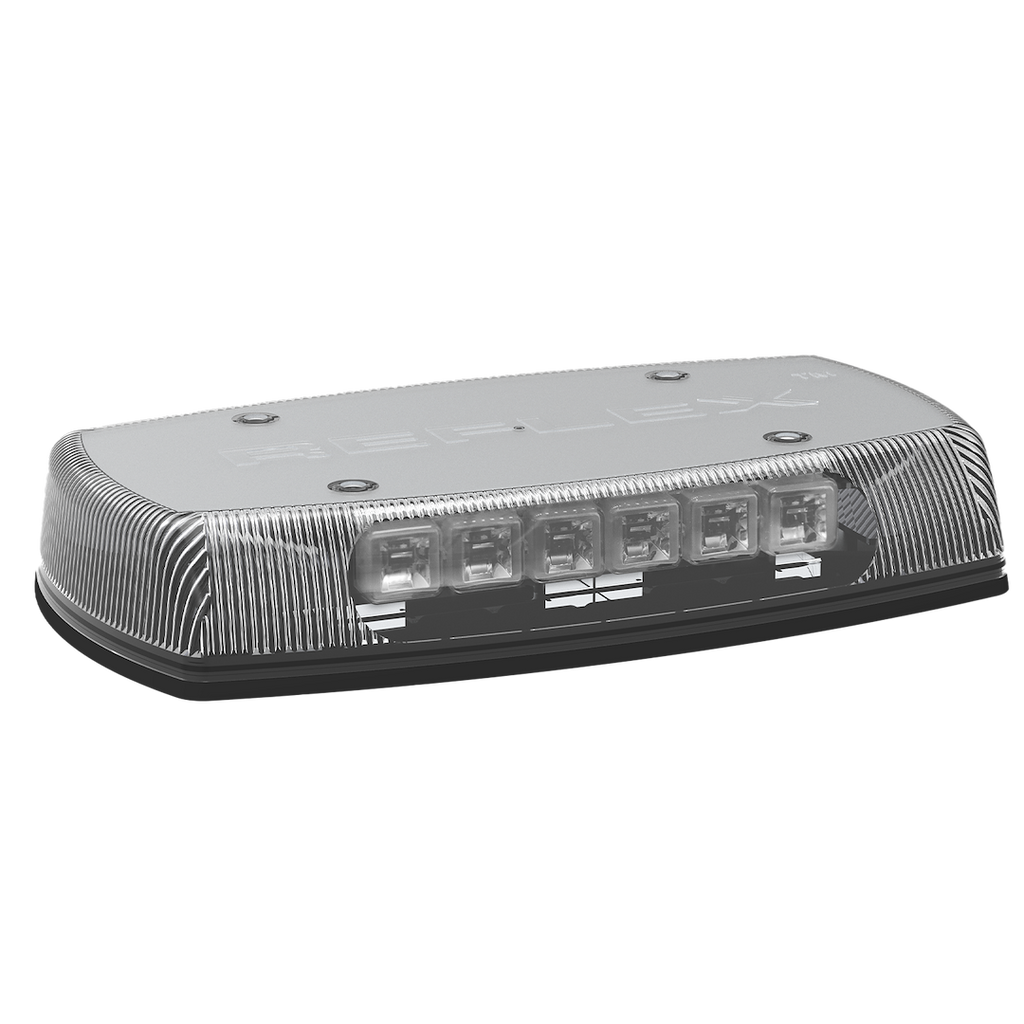

Ecco Electronic Warning Light (MPN: 5590CA)

Advanced LED minibar with reflective and TIR optic technology for enhanced visibility.

The Ecco Electronic Warning Light is designed to provide superior warning signals with its innovative combination of Reflective and TIR Optic LED modules. This 15-inch LED minibar features a permanent mount and is engineered to deliver a highly intense, focused beam for both front and rear visibility, while also ensuring 360-degree coverage with a wide-angle beam for side and corner alerts. With 18 distinct flash patterns, this light can be customized to meet various operational needs, making it suitable for a range of vehicles.

Operating on a voltage range of 12 to 24 VDC, the Ecco warning light is built to withstand a temperature range from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit, ensuring reliable performance in diverse environmental conditions. The rectangular design and clear lens enhance its functionality, while the ability to synchronize multiple units allows for coordinated operation, enhancing overall safety. This product is an essential addition for those requiring effective warning signals in their vehicles.

Features

• Combines Reflective And TIR Optic LED Modules To Optimize Focused Front And Rear Warning And Wide-Angle Side Warning
• Cigarette Plug With On And Off And Flash Pattern Selection Switch
• Featuring 12 To 24 VDC Operation
• Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: 5590CA
• Shape: Rectangular

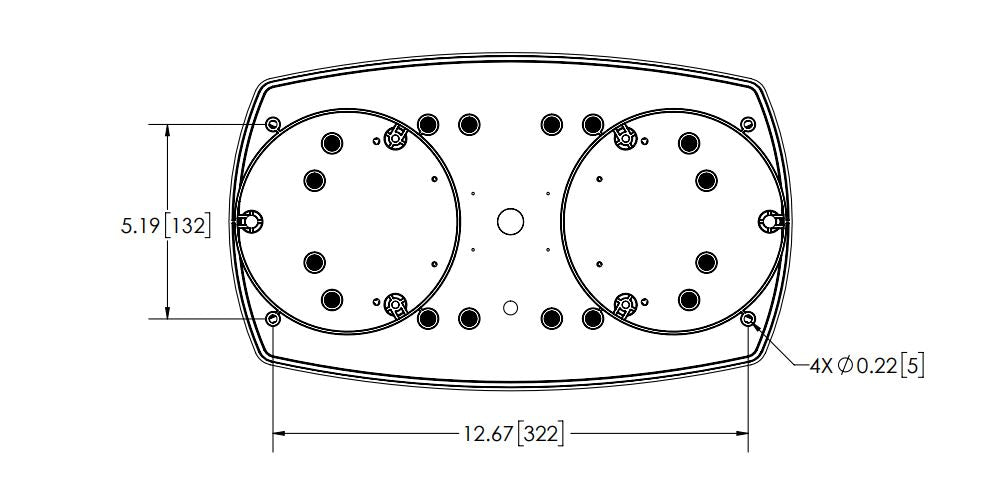

• Length (IN): 15 Inch
• Width (IN): 9 Inch
• Height (IN): 2-1/2 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: Permanent Mount
• Lens Color: Clear
• Light Pattern: 18 Flash Pattern
• Power Supply: 12 To 24 Volt
• With Cigarette Lighter Plug: No
• Number Of Flashing Marker Lights: 18

Technical Documents

• 920-4300-00.pdf
• 5590_ECCO_8.5X11.pdf
• 5590CX.pdf
