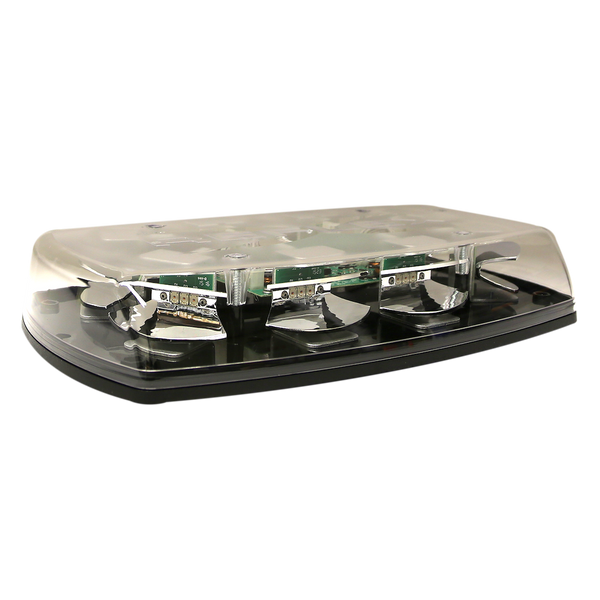

Ecco Electronic Reflex Mini Bar Warning Light (MPN: 5587CA)

Compact LED warning light with multiple mounting options and flash patterns.

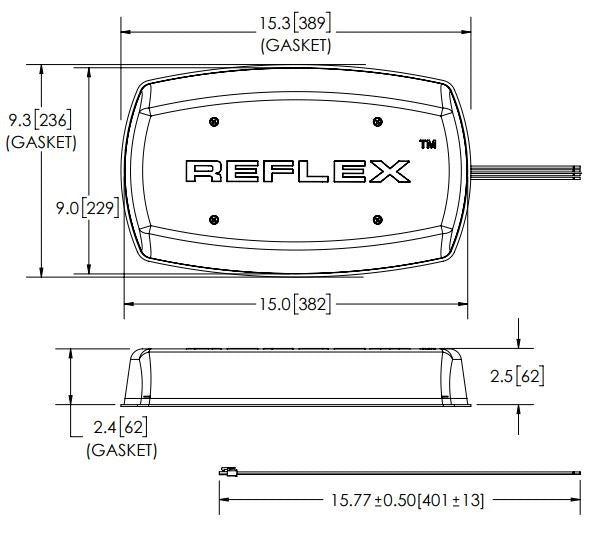

The Ecco Electronic Reflex Mini Bar Warning Light is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features a polycarbonate base and a low profile lens, ensuring durability and visibility. It operates on a 12 to 24 Volt DC power supply and utilizes high intensity LEDs combined with reflective technology to maximize light output.

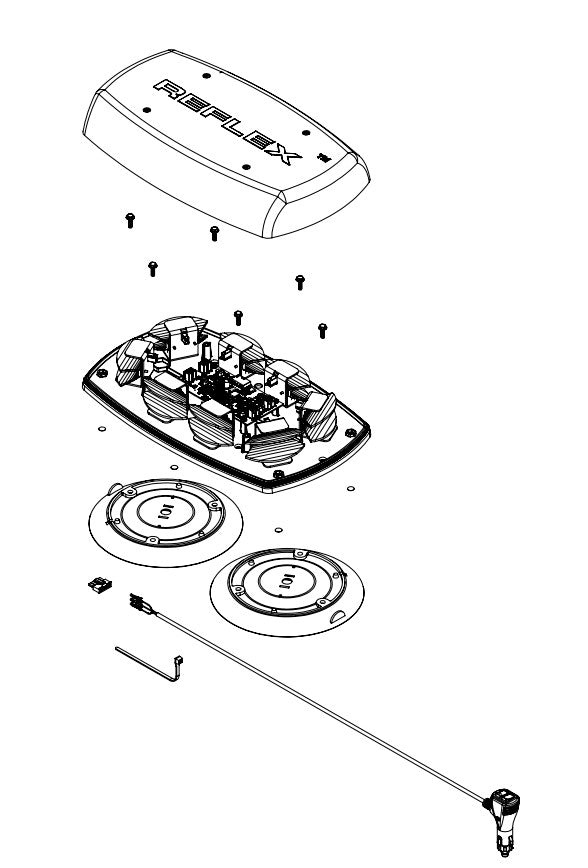

This warning light offers users the flexibility of multiple mounting options, including permanent, vacuum-magnet, or magnet mounting. With 18 selectable flash patterns, users can easily customize the light's operation via a trigger wire for permanent mounts or a cigarette plug switch for magnetic models. Additionally, permanent mount models can be synchronized to operate multiple lights either alternately or simultaneously, enhancing visibility in various situations.

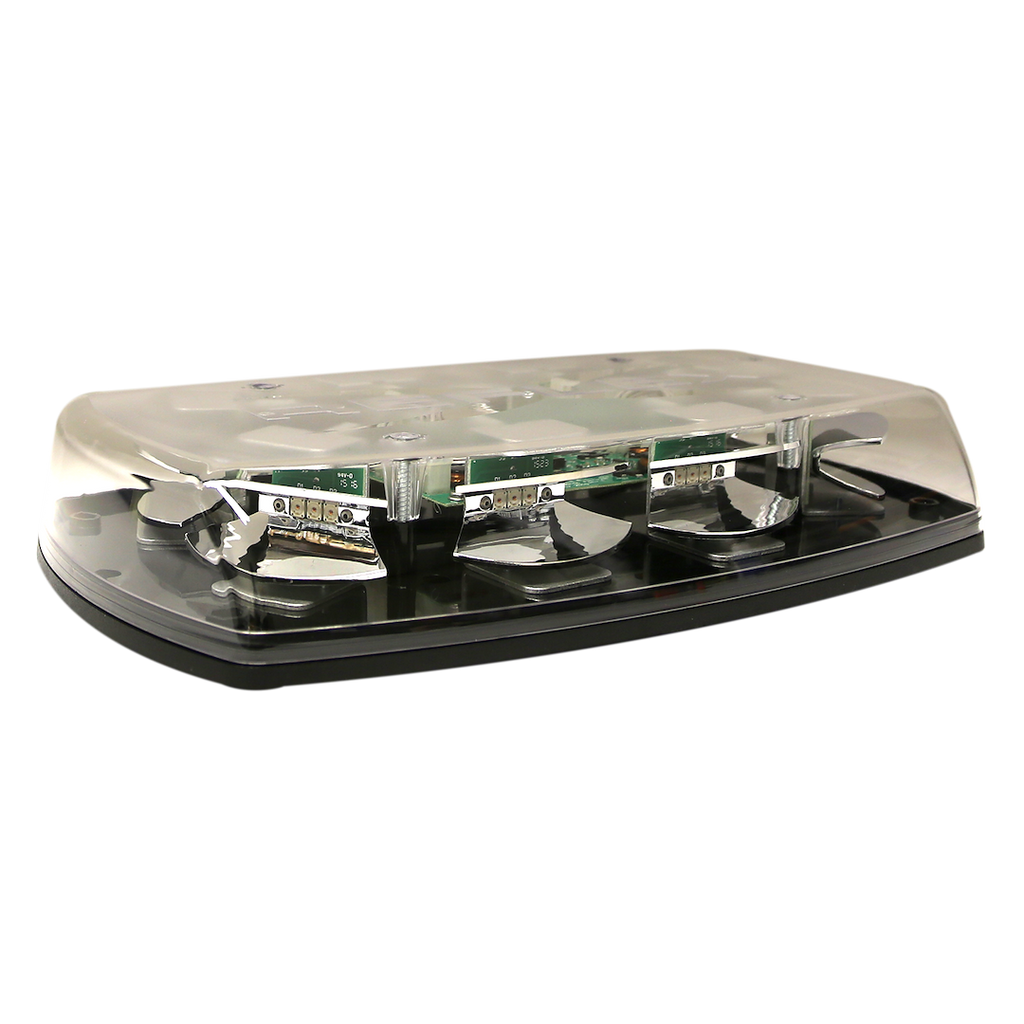

The Reflex Mini Bar is equipped with eight LED reflector modules, each containing three LEDs, which provide high intensity light output. Its easy installation process makes it a practical choice for various applications requiring effective warning signals.

Features

• Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
• Choice Of 18 Flash Patterns
• Polycarbonate Base And Low Profile Lens
• Easy To Install

Specifications

• Manufacturer: Ecco Electronic
• Manufacturer Part Number: 5587CA
• Shape: Rectangular
• Length (IN): 15 Inch
• Width (IN): 9 Inch
• Height (IN): 2-1/2 Inch
• Diameter (IN): Not Applicable
• Style: Mini Bar
• Type: LED
• Mount Type: 4 Bolt Mount
• Lens Color: Amber
• Light Pattern: 18 Flash Pattern
• Power Supply: 12 To 24 Volt
• With Cigarette Lighter Plug: No

Technical Documents

• 920-0149-00.pdf
• 5587CX.pdf
• 5587_ECCO_8.5X11.pdf
