Compact LED warning light with multiple flash patterns and mounting options.

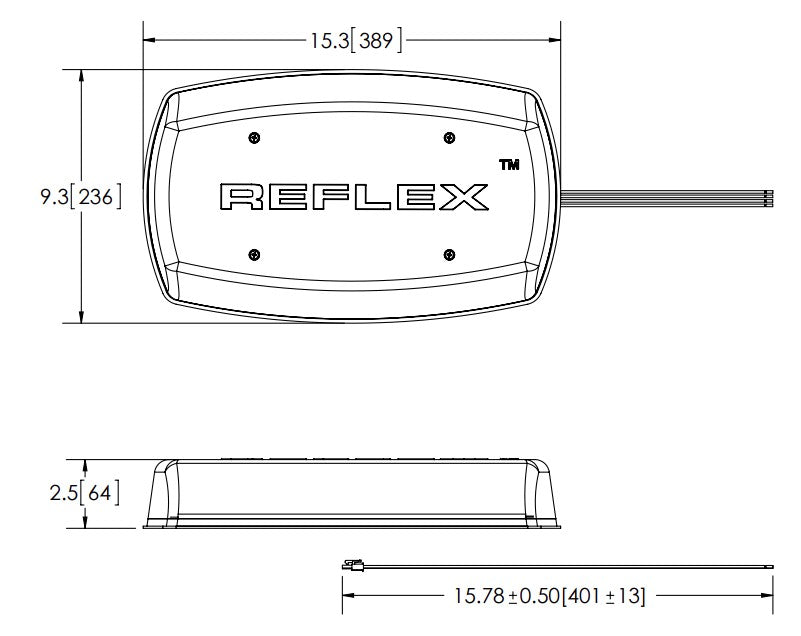

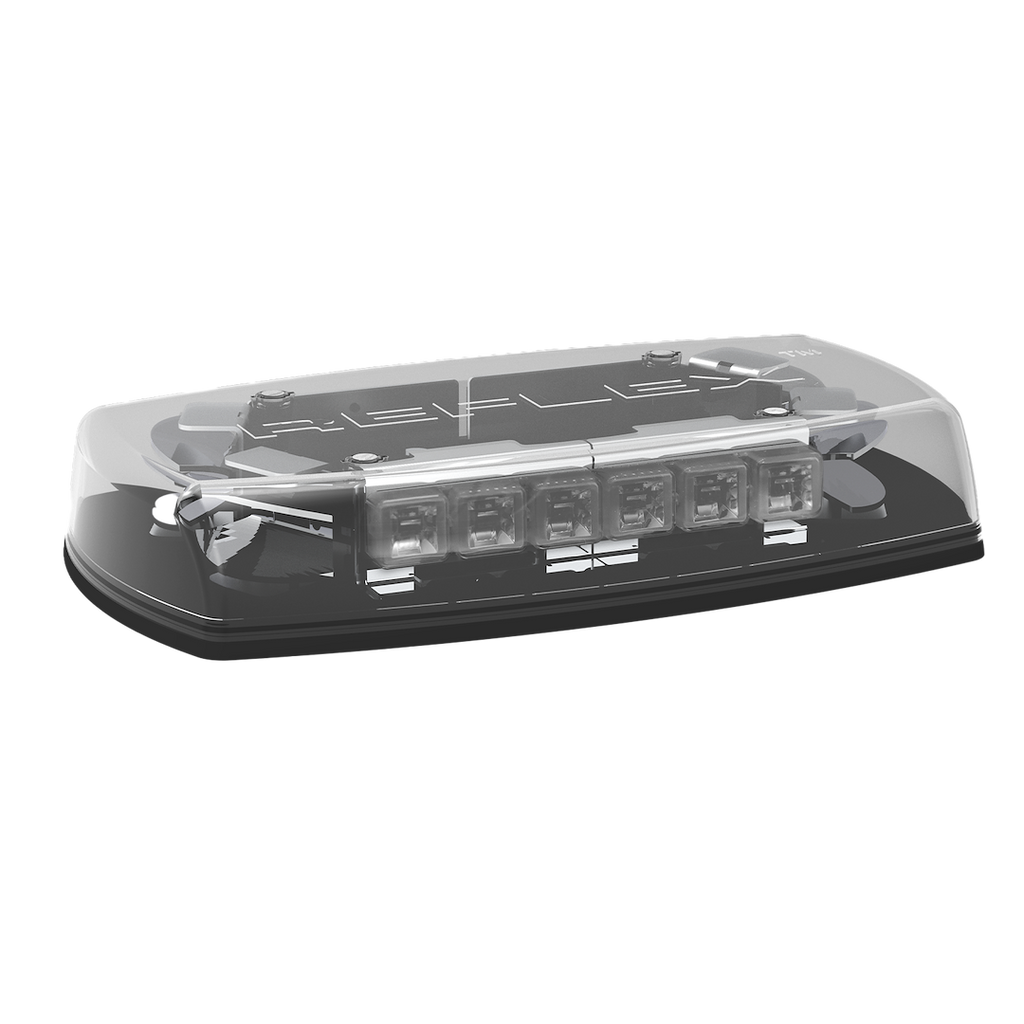

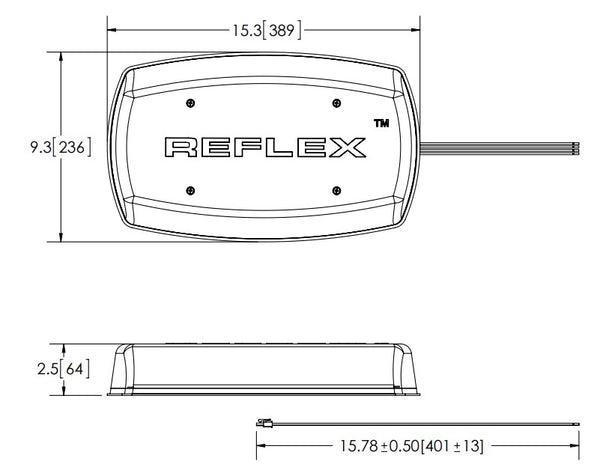

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15.3 inches in length, 9.3 inches in width, and 2.5 inches in height, this LED mini bar is suitable for permanent mounting and operates on a voltage range of 12 to 24 VDC. It utilizes high intensity LEDs combined with reflective technology to enhance light output, ensuring visibility in various conditions.
This mini bar features a clear lens and offers 18 selectable flash patterns, allowing users to customize the light output according to their needs. The permanent mount models can be synchronized to operate multiple units either alternately or simultaneously, providing flexibility for larger setups. The durable polycarbonate base and low profile lens are designed to withstand a temperature range from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit, making it suitable for diverse environments.
With its lenticular optic lens and combined reflective and TIR optic LED modules, the Reflex Mini Bar optimizes focused front and rear warning while providing wide-angle side warning. This makes it an effective choice for emergency vehicles, construction sites, and other applications requiring high visibility warning lights.
Features
- Lenticular Optic Lens With Combined Reflective And TIR Optic LED Modules To Optimize Focused Front And Rear Warning And Wide-Angle Side Warning
- Polycarbonate Base And Low Profile Lens
- Featuring 12 To 24 VDC Operation
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5597CA
- Shape: Rectangular
- Length (IN): 15.3 Inch
- Width (IN): 9.3 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
