Compact LED warning light with multiple mounting options and flash patterns.

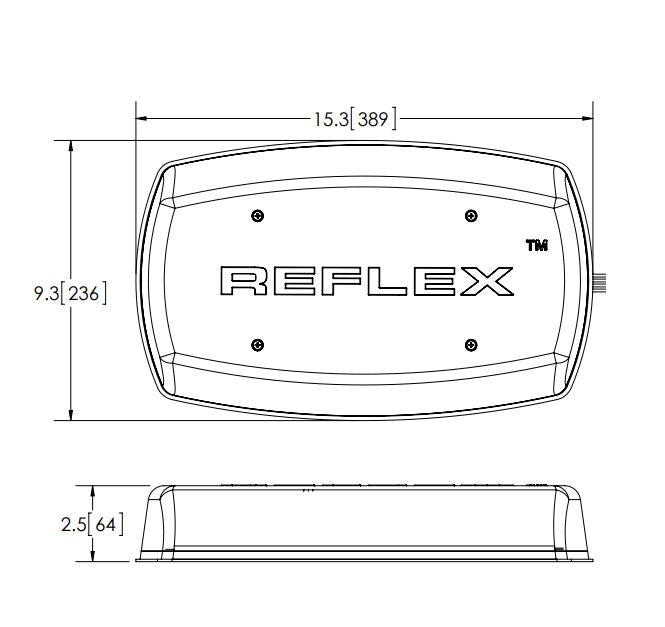

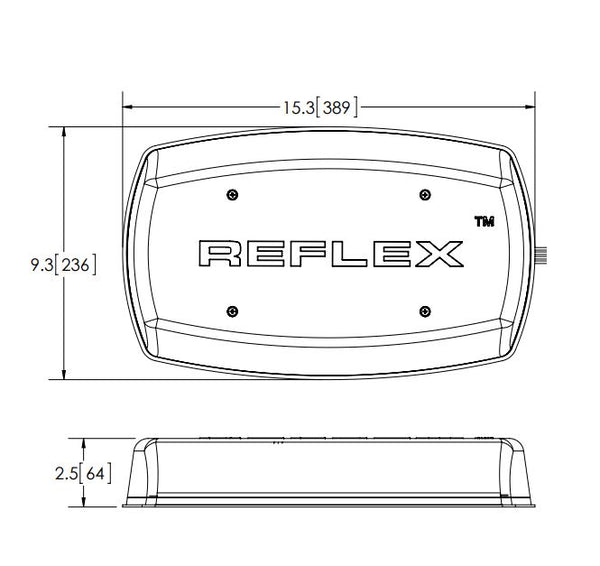

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15.3 inches in length, 9.3 inches in width, and 2.5 inches in height, this mini bar features high intensity amber LEDs that ensure maximum visibility. It operates on a 12 to 24 VDC power supply, making it versatile for various applications. Users can choose from 18 different flash patterns, allowing for customization based on specific needs.
This mini bar is equipped with a lenticular optic lens that combines reflective and TIR optic LED modules to optimize focused front and rear warning, as well as wide-angle side warning. The durable polycarbonate base and low profile lens enhance its resilience and functionality. Additionally, the Reflex Mini Bar can be permanently mounted or used with a vacuum-magnet or magnet mount, providing flexibility in installation.
With a temperature range of negative 22 degrees Fahrenheit to +122 degrees Fahrenheit, this product is built to withstand various environmental conditions. The ability to synchronize multiple lights for coordinated operation further enhances its utility in emergency and warning situations.
Features
- Lenticular Optic Lens With Combined Reflective And TIR Optic LED Modules To Optimize Focused Front And Rear Warning And Wide-Angle Side Warning
- Polycarbonate Base And Low Profile Lens
- Featuring 12 To 24 VDC Operation
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5597A
- Shape: Rectangular
- Length (IN): 15.3 Inch
- Width (IN): 9.3 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Magnet Mount
- Lens Color: Amber
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
