Compact LED warning light with multiple mounting options and flash patterns.

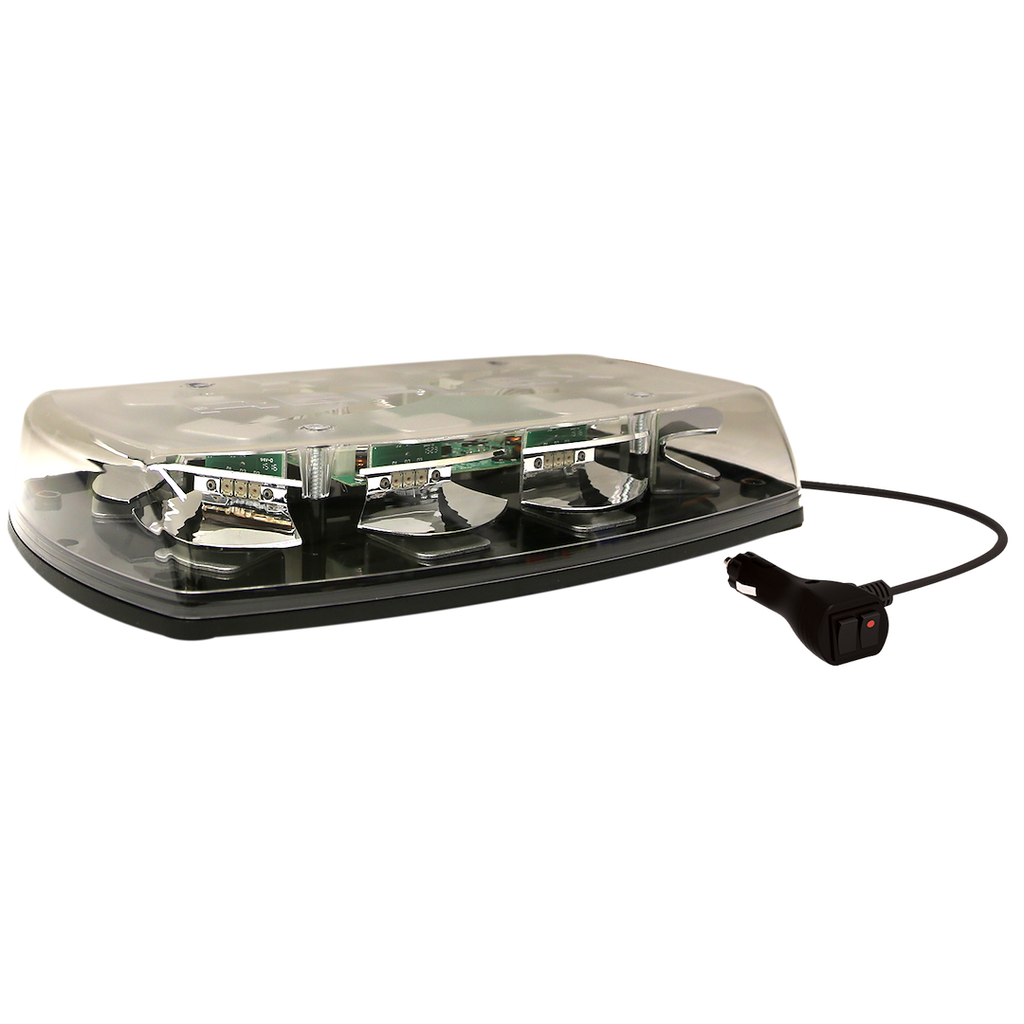

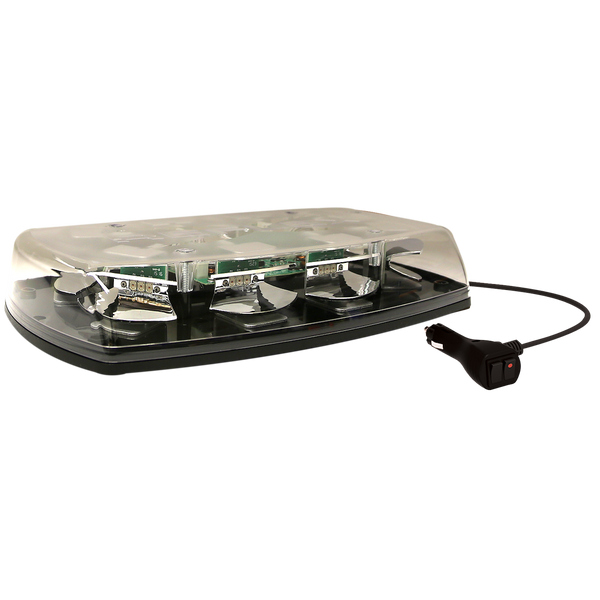

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features high intensity LEDs that ensure maximum visibility. It operates on a 12 to 24 VDC power supply and offers the flexibility of permanent, vacuum-magnet, or magnet mounting, making it suitable for various applications.
This mini bar includes eight LED reflector modules, each containing three LEDs, which deliver high intensity light output. Users can choose from 18 different flash patterns, allowing for customization based on specific needs. The polycarbonate base and low profile lens are designed to withstand a temperature range from -22 degrees Fahrenheit to +122 degrees Fahrenheit, ensuring reliable performance in diverse environments.
The Reflex Mini Bar is equipped with a 15-foot wire length and includes a cigarette lighter plug for easy connectivity. Its clear lens enhances light visibility, while the robust construction ensures durability. This product is an effective solution for those requiring a reliable and versatile warning light system.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Choice Of 18 Flash Patterns
- Polycarbonate Base And Low Profile Lens
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5587CAC-MG
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Magnet Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): 15 Feet
- With Cigarette Lighter Plug: Yes
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: 18
- Includes Control Panel: No
Technical Documents
Product Videos
Shipping & Returns
- This product ships within the continental USA only.
- This product typically ships within 1 to 3 business days.
- Returns are accepted within 30 days for items in like-new condition. For complete details, please see our return policy.
