Compact LED warning light with multiple flash patterns and mounting options.

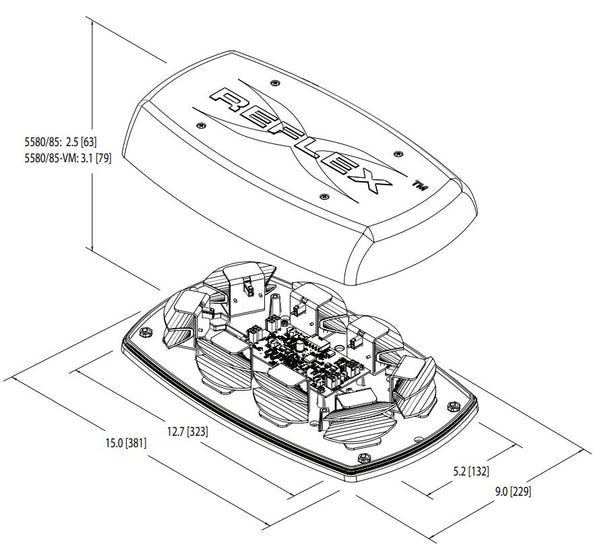

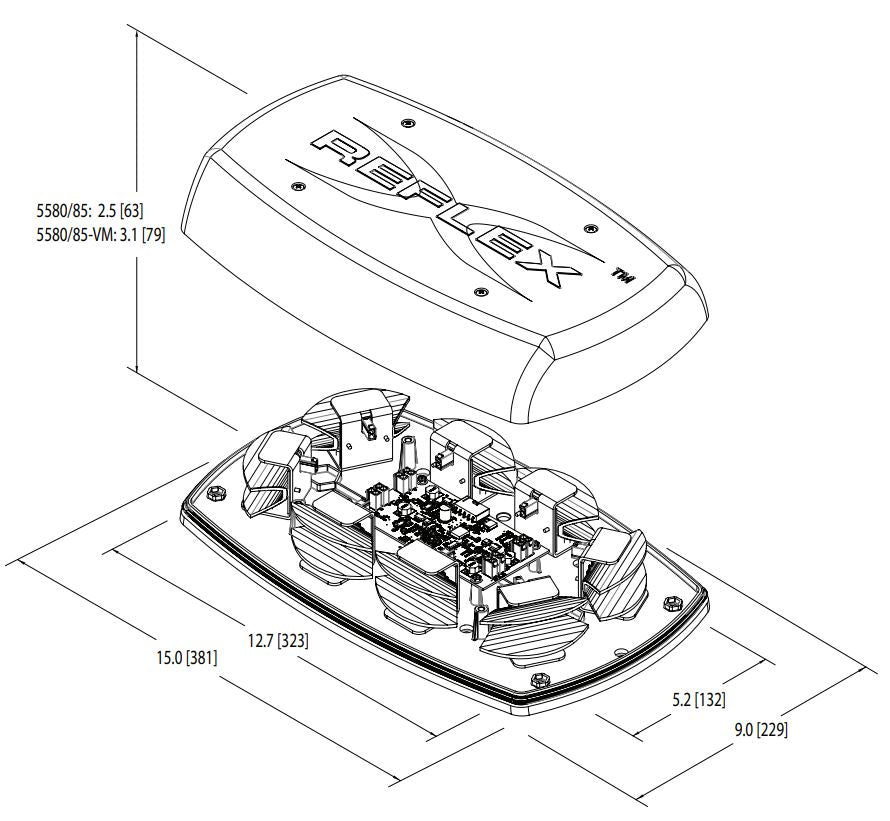

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features eight LED reflector modules, each containing three high-intensity LEDs that maximize light output. It operates on a voltage range of 12 to 24 VDC, making it versatile for various applications.
This mini bar offers the flexibility of permanent or vacuum-magnet mounting, catering to different user needs. With 18 selectable flash patterns, users can easily switch between modes using a trigger wire for permanent mounts or a cigarette plug switch for magnetic models. Additionally, permanent mount models can be synchronized to operate in unison or alternately with other lights, enhancing visibility and safety.
Constructed with a durable polycarbonate base and a low-profile lens, the Reflex Mini Bar is built to withstand a temperature range from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit. This ensures reliable performance in various environmental conditions, making it suitable for emergency vehicles, construction sites, and other applications requiring high visibility.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Polycarbonate Base And Low Profile Lens
- Featuring 12 To 24 VDC Operation
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
- Cigarette Plug With On And Off And Flash Pattern Selection Switch
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5585A
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Magnet Mount
- Lens Color: Amber
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Includes Control Panel: No
