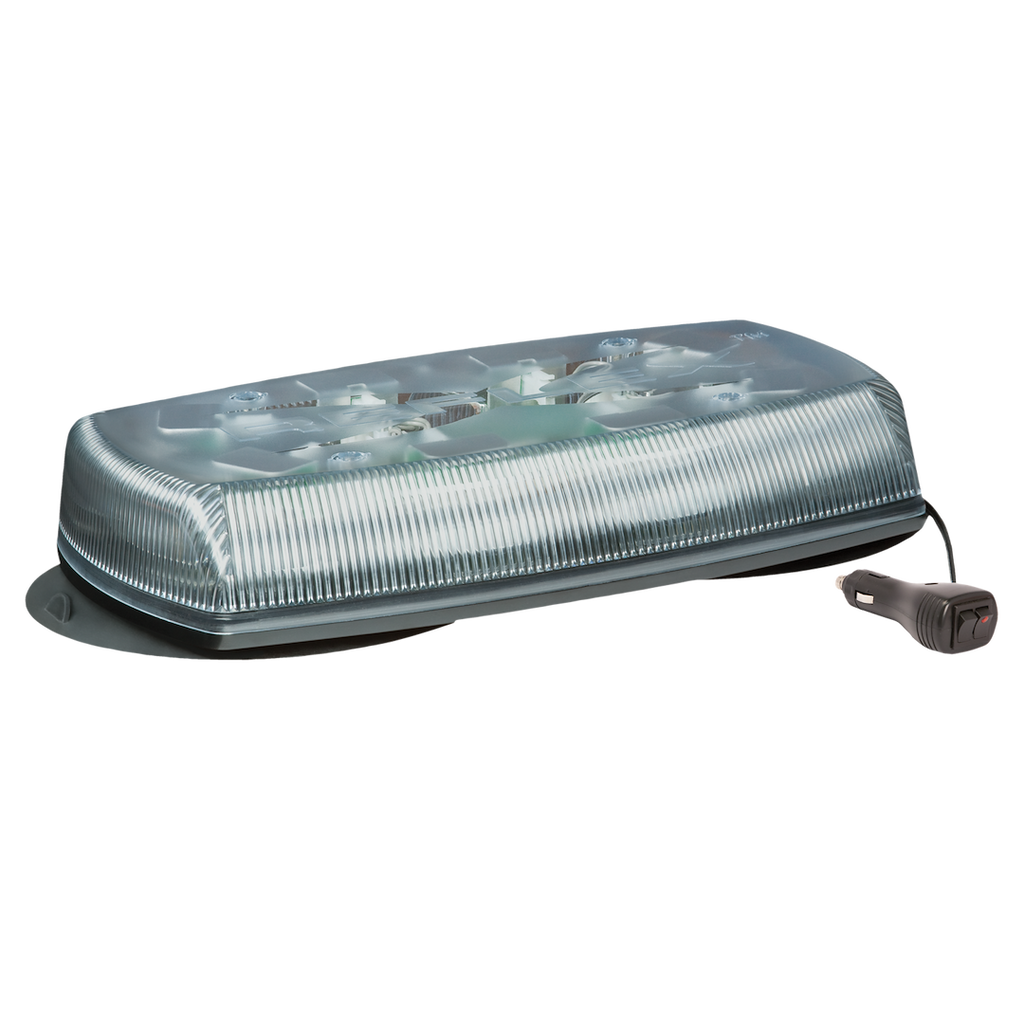

Compact LED warning light with versatile mounting options and multiple flash patterns.

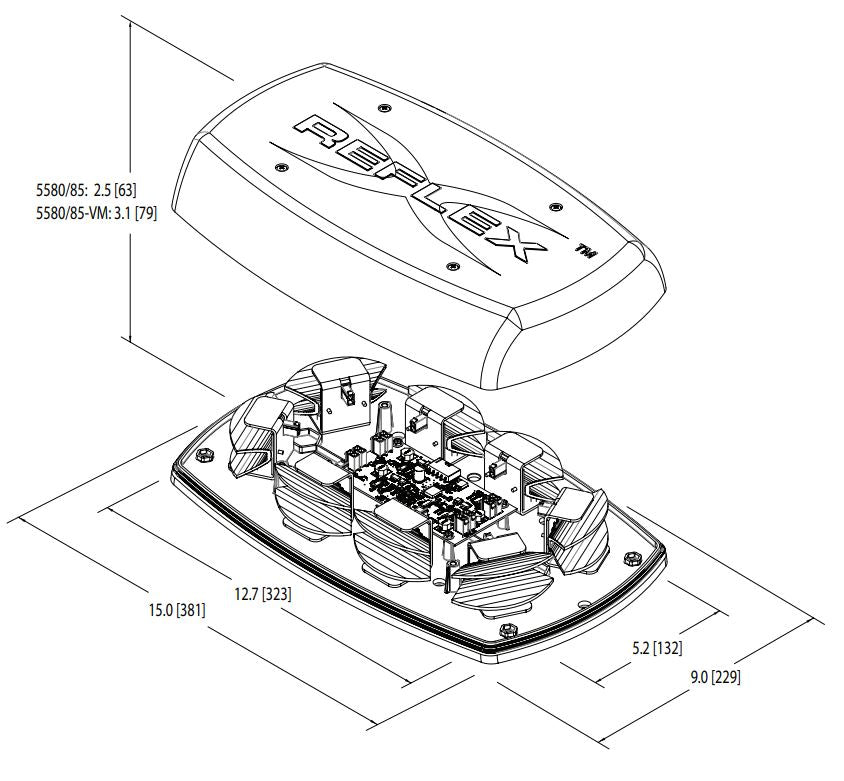

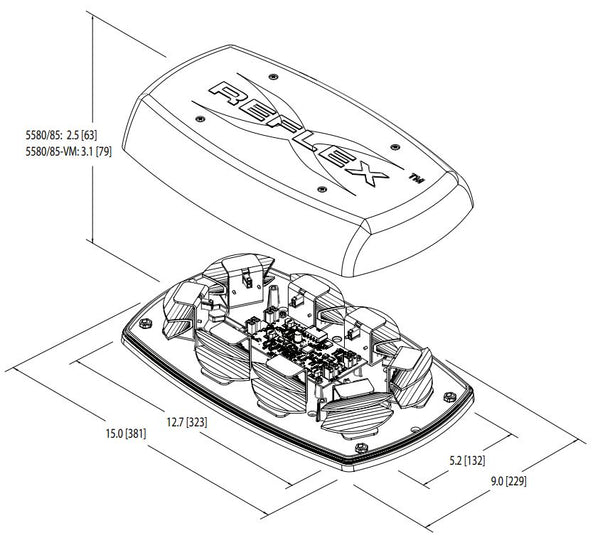

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 3.1 inches in height, this LED mini bar features a polycarbonate base and a clear lens, ensuring durability and high visibility. It operates on a 12 to 24 VDC power supply, making it suitable for a variety of vehicles and applications.
Equipped with eight LED reflector modules, each containing three high-intensity LEDs, the Reflex maximizes light output for effective warning signals. Users can choose from 18 different flash patterns, which can be activated via a trigger wire for permanent mounts or a cigarette plug switch for magnetic models. This flexibility allows for easy installation and adaptability to different mounting preferences.
The mini bar is designed to withstand a wide temperature range, from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit, ensuring reliable performance in various environmental conditions. With its vacuum magnet mount option, the Reflex can be easily attached and removed, providing convenience for users who require temporary warning solutions.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Polycarbonate Base And Low Profile Lens
- Featuring 12 To 24 VDC Operation
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5580CA-VM
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 3.1 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Vacuum Magnet Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): 15 Feet
- With Cigarette Lighter Plug: Yes
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
