Compact LED warning light with customizable flash patterns and durable design.

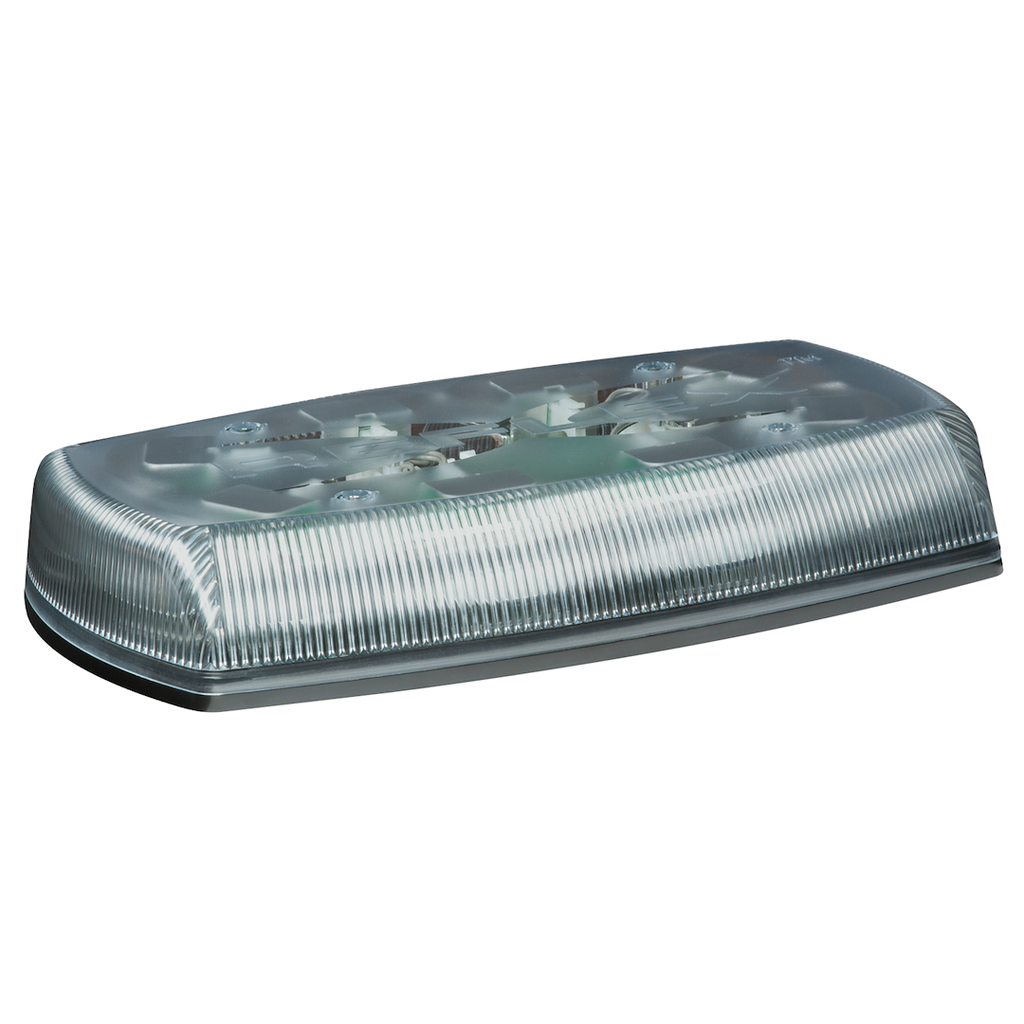

The Ecco Electronic Reflex Mini Bar is a compact LED warning light designed for versatility and high visibility. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features a low-profile design that can be permanently mounted for a secure installation. It operates on a 12 to 24 VDC power supply, making it suitable for a variety of vehicles and applications.
Equipped with eight LED reflector modules, each containing three high-intensity LEDs, the Reflex maximizes light output for effective warning signals. Users can choose from 18 different flash patterns, allowing for customization based on specific needs. The clear polycarbonate lens and base ensure durability and resistance to harsh environmental conditions, with a temperature range from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit.
This mini bar is an efficient solution for those requiring a reliable warning light system. Its robust construction and advanced LED technology provide both functionality and longevity, making it a valuable addition to any emergency or service vehicle.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Polycarbonate Base And Low Profile Lens
- Users Can Select From 18 Flash Patterns
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5580CA
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
