Compact LED warning light with customizable flash patterns for enhanced visibility.

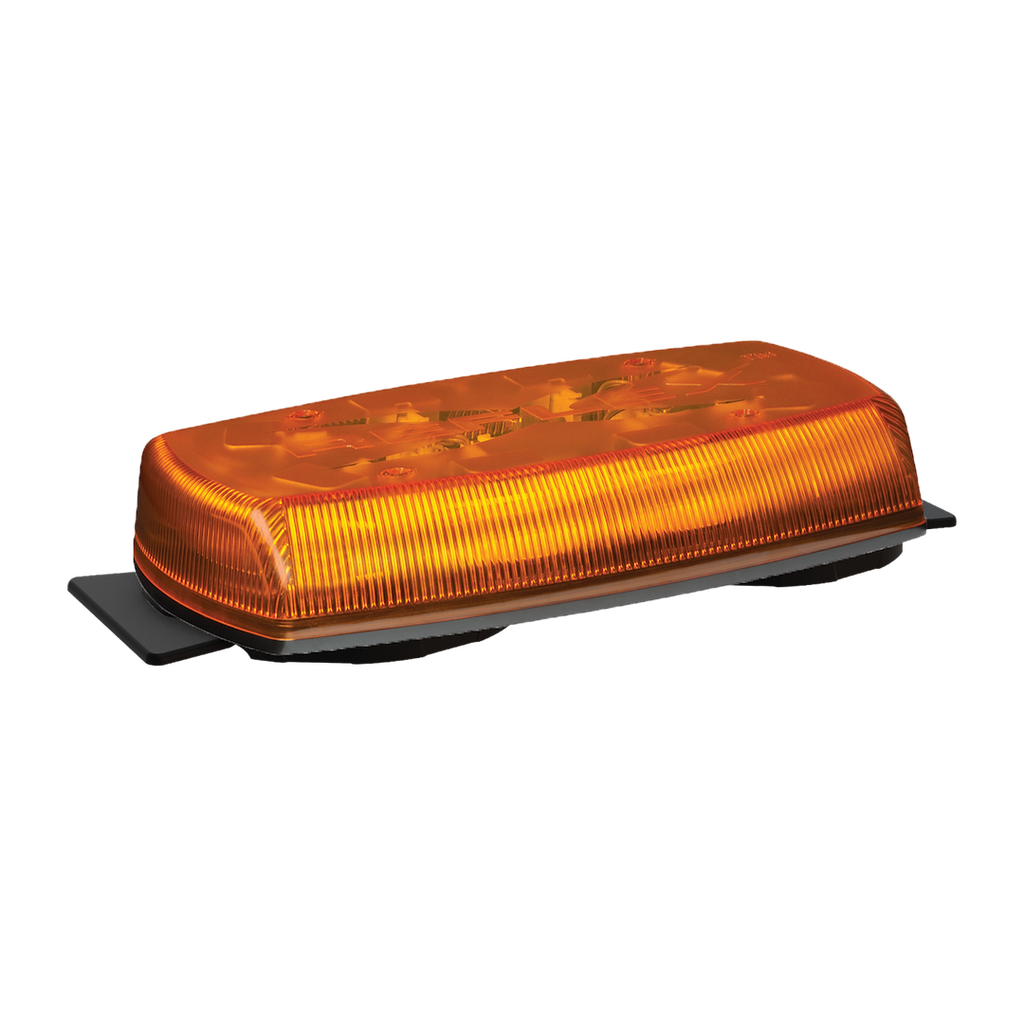

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this LED mini bar operates on a voltage range of 12 to 24 VDC, making it versatile for various applications. It features high intensity LEDs and reflective technology that maximize light output, ensuring visibility in diverse conditions.
This mini bar includes eight LED reflector modules, each containing three LEDs, which deliver high intensity light output. Users can choose from 18 different flash patterns to suit their specific needs, enhancing the effectiveness of the warning signal. The polycarbonate base and low profile lens contribute to its durability and performance, while the temperature range of -22 to +122 degrees Fahrenheit ensures reliable operation in extreme conditions.
The Reflex Mini Bar is equipped with high bond tape mount for easy installation, making it suitable for a variety of vehicles and settings. Its amber lens color is designed to attract attention, ensuring that the warning light is easily noticed. This product is an essential tool for enhancing safety and visibility in emergency and service applications.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Polycarbonate Base And Low Profile Lens
- Users Can Select From 18 Flash Patterns
- Temperature Range: -22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5580A-HBT
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Hook And Magnet Mount
- Lens Color: Amber
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: 18
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
