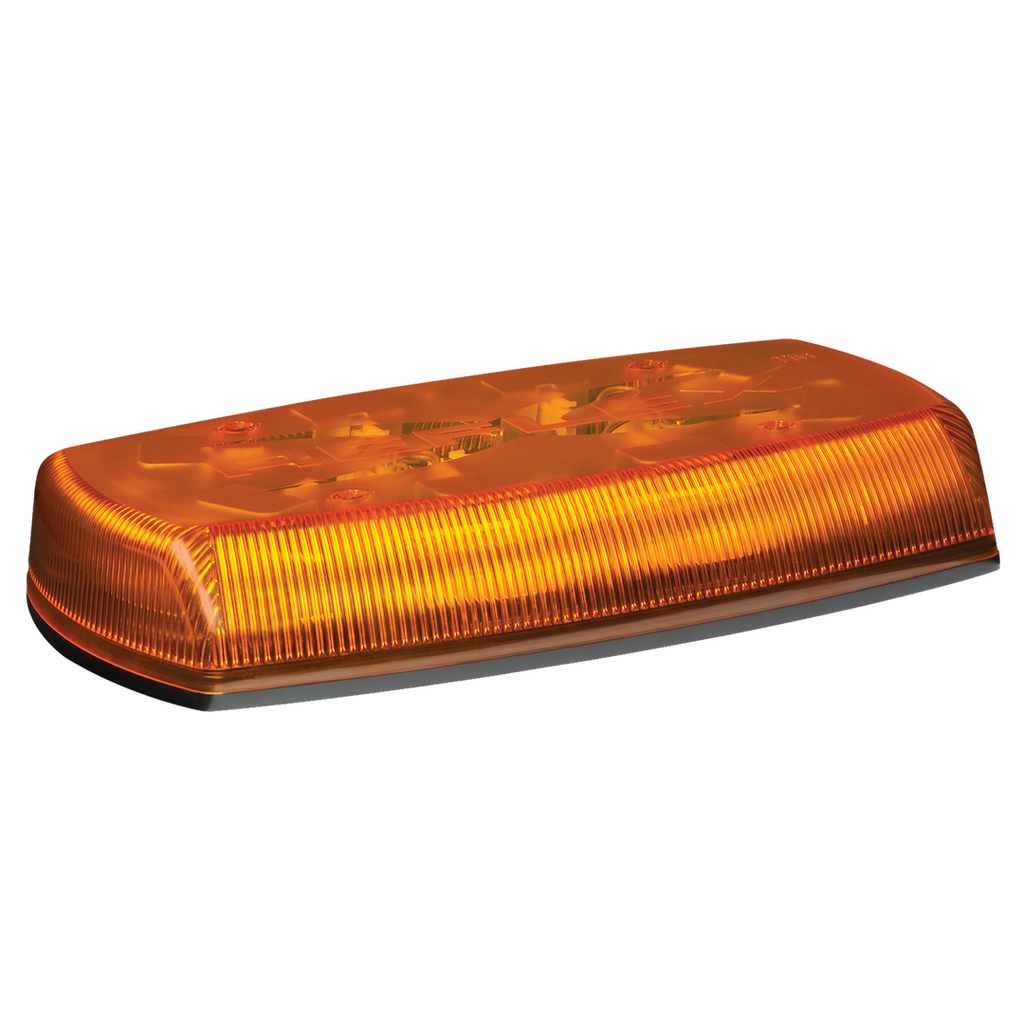

Compact LED warning light with multiple flash patterns and mounting options.

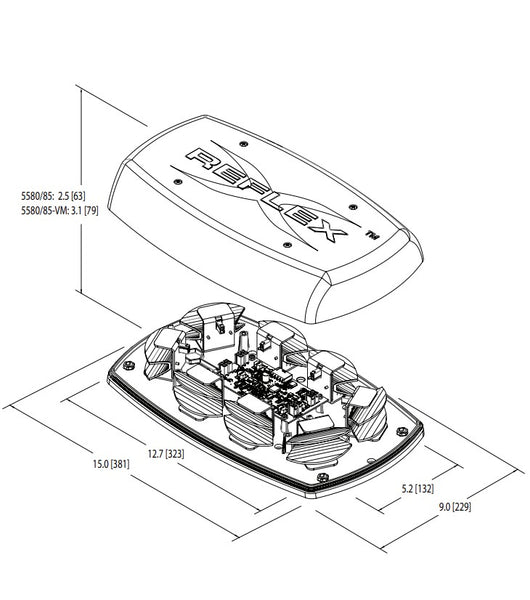

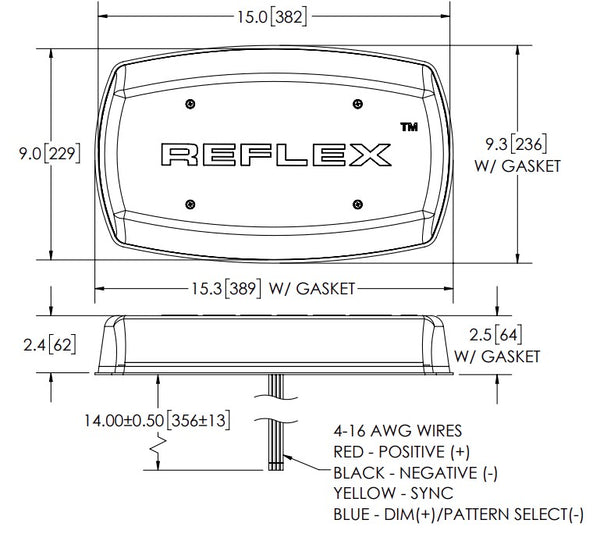

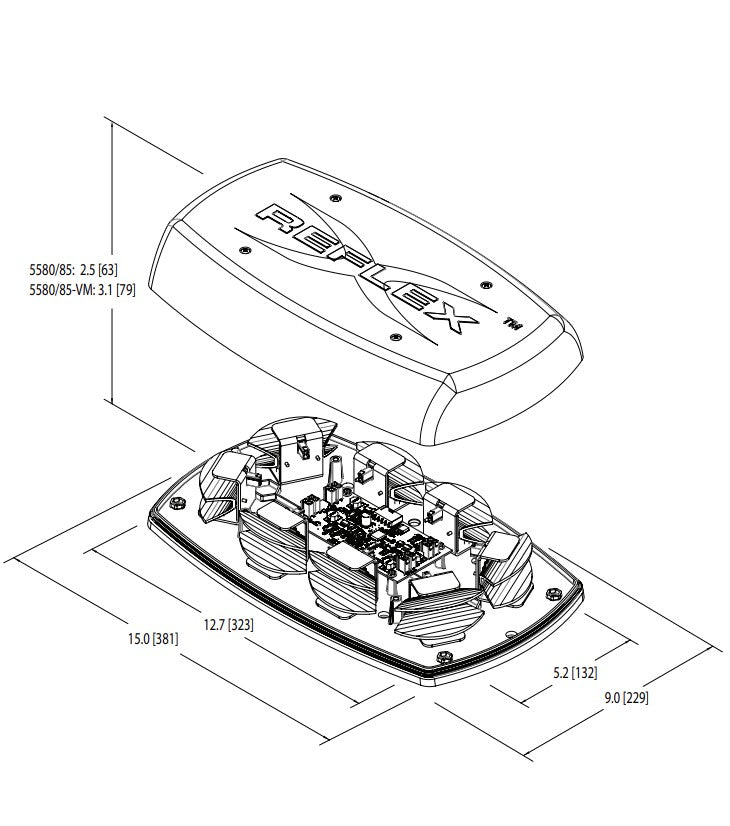

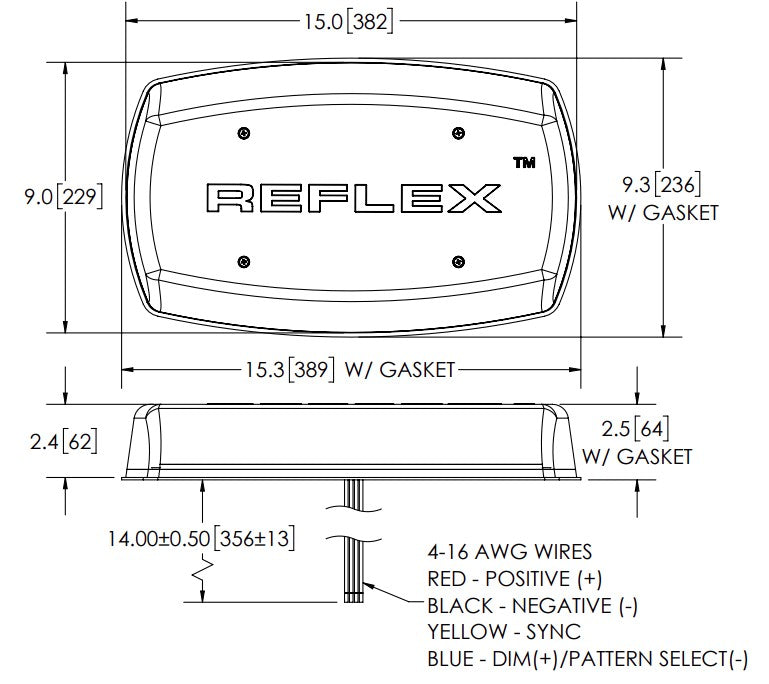

The Ecco Electronic Reflex Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar features a durable polycarbonate base and lens, ensuring longevity and resilience in various environments. It operates on a 12 to 24 VDC power supply and consumes 2.7 amps, making it suitable for a wide range of vehicles and applications.
Equipped with high intensity LEDs and reflective technology, the Reflex maximizes light output for enhanced visibility. Users can choose from 18 different flash patterns, allowing for customization based on specific needs. The mini bar can be permanently mounted, providing a secure installation option, while also offering flexibility for other mounting methods.
With a temperature range from negative 22 degrees Fahrenheit to 122 degrees Fahrenheit, the Ecco Electronic Reflex Mini Bar is built to perform in extreme conditions. Its compact design and powerful lighting capabilities make it an effective choice for emergency vehicles, construction sites, and other applications requiring reliable warning signals.
Features
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Polycarbonate Base And Low Profile Lens
- Users Can Select From 18 Flash Patterns
- Temperature Range: Negative 22 Degree Fahrenheit To +122 Degree Fahrenheit
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5580A
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Amber
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Lens Material: Polycarbonate
- Base Material: Polycarbonate
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
- Includes Control Panel: No
- Mounting Strap Material: No Mounting Straps
- Includes Gaskets: No
