Compact warning light with high intensity LEDs and multiple flash patterns.

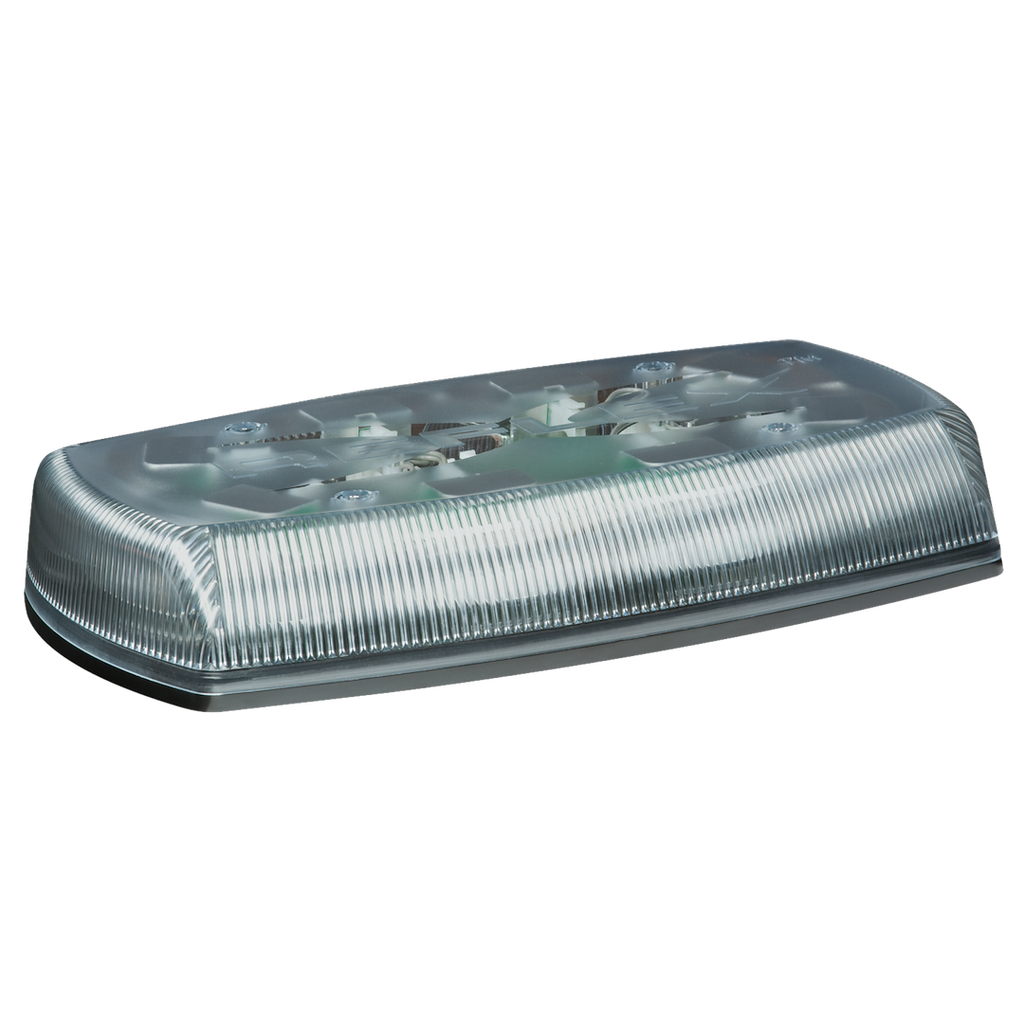

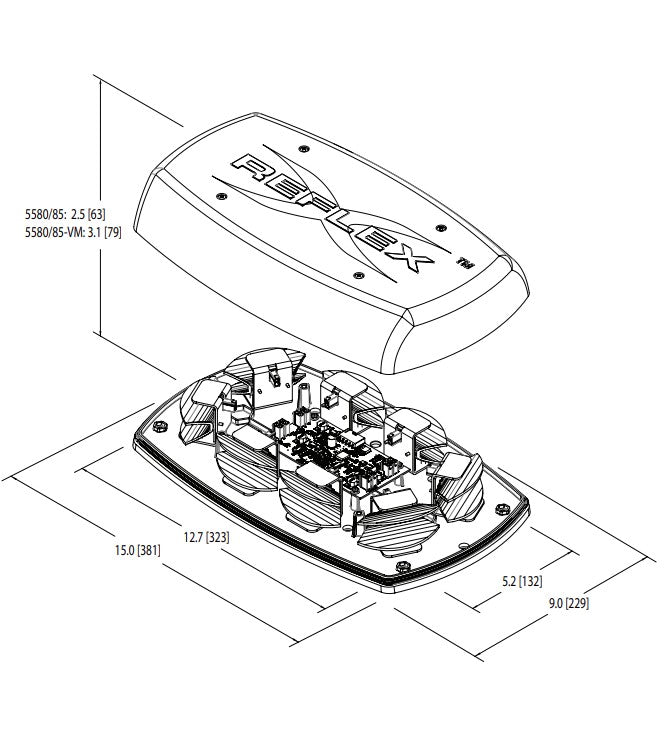

The Ecco Electronic Reflex LED Mini Bar is designed to provide a powerful warning solution in a compact form factor. Measuring 15 inches in length, 9 inches in width, and 2.5 inches in height, this mini bar is suitable for permanent mounting and operates on a 12 to 24 Volt DC power supply. It features eight LED reflector modules, each containing three high intensity LEDs, ensuring maximum light output for enhanced visibility in various conditions.
This mini bar offers users the flexibility of selecting from 18 different flash patterns, which can be easily controlled via a trigger wire for permanent mount models or a cigarette plug switch for magnetic models. Additionally, the Reflex LED Mini Bar is capable of synchronization, allowing multiple units to operate either alternately or simultaneously, which is beneficial for larger setups.
Constructed with a durable polycarbonate base and a low profile lens, the mini bar meets SAE J845 Class I, CE, R10, and California Title 13 standards, ensuring compliance with safety regulations. The clear lens design enhances the effectiveness of the light output, making it a reliable choice for various applications.
Features
- Reflex LED Minibars Provide A Compact Yet Powerful Warning Solution That Features 12-24 Volt DC Operation
- Uses High Intensity LEDs And Reflective Technology To Maximize Light Output And Allows The User To Select From A Choice Of 18 User Selectable Flash Patterns
- Eight LED Reflector Modules, Each Comprising Three LEDs Provide High Intensity Light Output
- Synchronization Capable
- Cigarette Plug With On Or Off And Flash Pattern Selection Switch
- Polycarbonate Base And Low Profile Lens
- SAE J845 Class I, CE, R10, IP65 (Permanent Mount Only), California Title 13 (CA Only)
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 5585CA
- Shape: Rectangular
- Length (IN): 15 Inch
- Width (IN): 9 Inch
- Height (IN): 2-1/2 Inch
- Diameter (IN): Not Applicable
- Style: Mini Bar
- Type: LED
- Mount Type: Permanent Mount
- Lens Color: Clear
- Light Pattern: 18 Flash Pattern
- Power Supply: 12 To 24 Volt
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
