High-intensity LED beacon with multiple flash patterns and durable design.

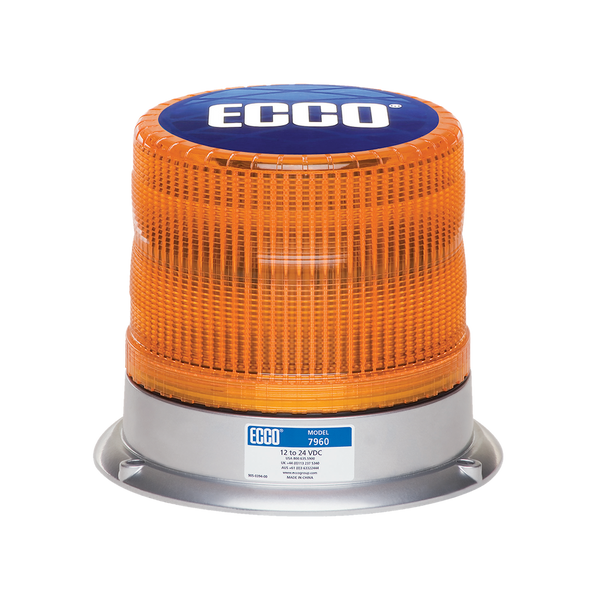

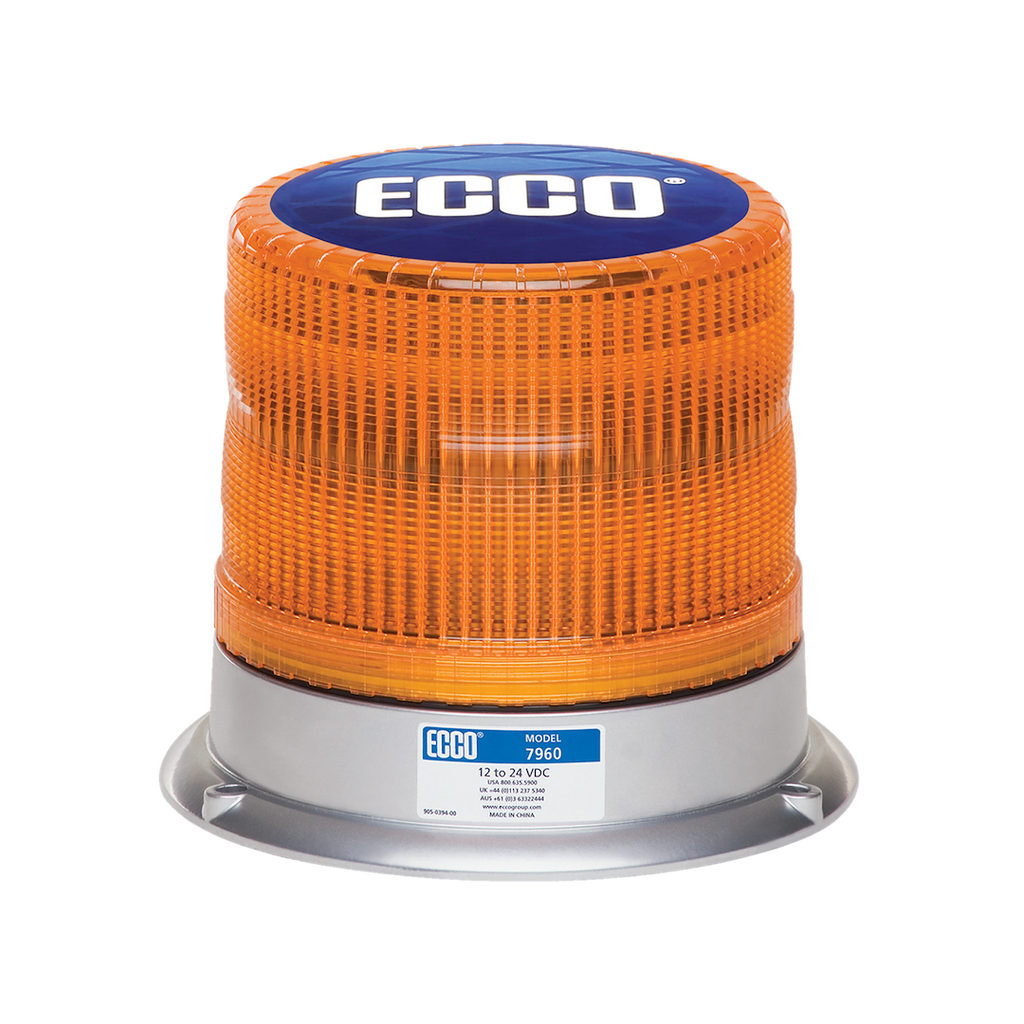

The Ecco Electronic Pulse LED Beacon is engineered to deliver SAE Class I light output, making it suitable for a variety of applications requiring high visibility. With a diameter of 6-1/2 inches and a height of 5.6 inches, this beacon features 16 powerful 3-watt LEDs that provide unrivaled flash intensity. It offers 11 distinct flash patterns, allowing users to select the appropriate mode for their specific needs, all while maintaining low amp draw for energy efficiency.
Constructed with a die-cast aluminum base, the beacon is coated to resist corrosion and designed to withstand vibrations and heat dissipation. The thread-on polycarbonate lens allows for easy flash mode selection without the need for tools, simplifying operation and maintenance. Additionally, the electronics are encapsulated in epoxy, providing protection against dust, moisture, and vibration, ensuring a long service life without ongoing maintenance.
This beacon operates on a power supply of 12 to 24 volts DC and is reverse polarity, voltage spike, and surge protected, enhancing its reliability in various environments. The Ecco Electronic Pulse LED Beacon is a modern solution for replacing outdated rotating or strobe beacons, integrating the latest technology for improved performance and durability.
Features
- 16 3-Watt LEDs Provide Unrivalled Flash Intensity
- 11 Flash Patterns With High Or Low Intensity Control
- Die-Cast Aluminum Base Is Coated Against Corrosion And Designed For Vibration Resistance And Heat Dissipation
- Thread-On Polycarbonate Lens
- Reverse Polarity, Voltage Spike And Surge Protected
- SAE J845 Class I (A, CA, CC And R Only) And CE, R10, IP56 (Permanent Mount Versions Only)
Specifications
- Manufacturer: Ecco Electronic
- Manufacturer Part Number: 7960A
- Shape: Round
- Length (IN): Not Applicable
- Width (IN): Not Applicable

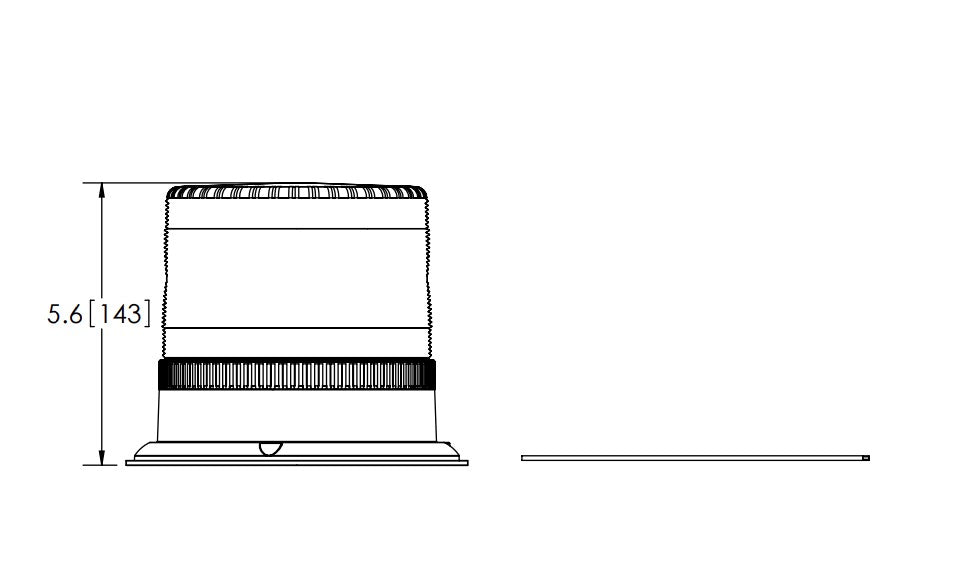

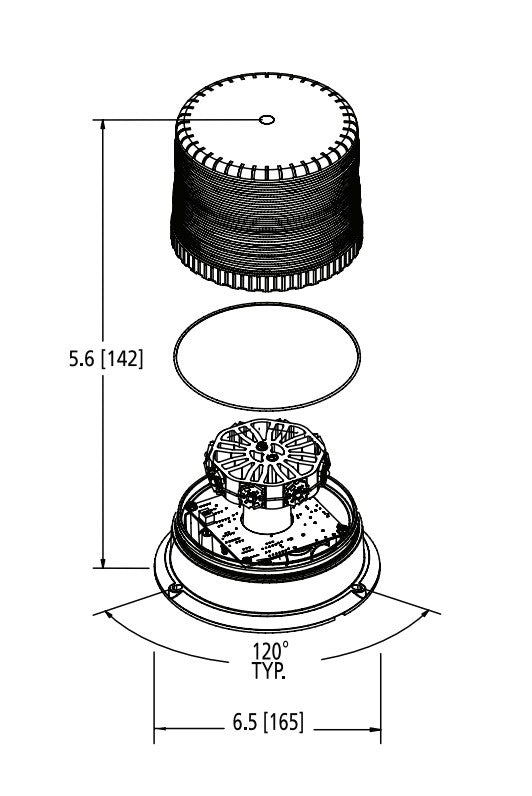

- Height (IN): 5.6 Inch
- Diameter (IN): 6-1/2 Inch
- Style: Dome
- Type: Beacon LED
- Mount Type: 3 Bolt/ 1 Inch Pipe Mount
- Lens Color: Clear
- Light Pattern: 11 Flash Pattern
- Power Supply: 12 To 24 Volt
- Wire Length (FT): No Wire
- With Cigarette Lighter Plug: No
- Number Of Alley Lights: No Alley Lights
- Number Of Takedown Lights: No Takedown Lights
- Number Of Flashing Marker Lights: No Flashing Marker Lights
